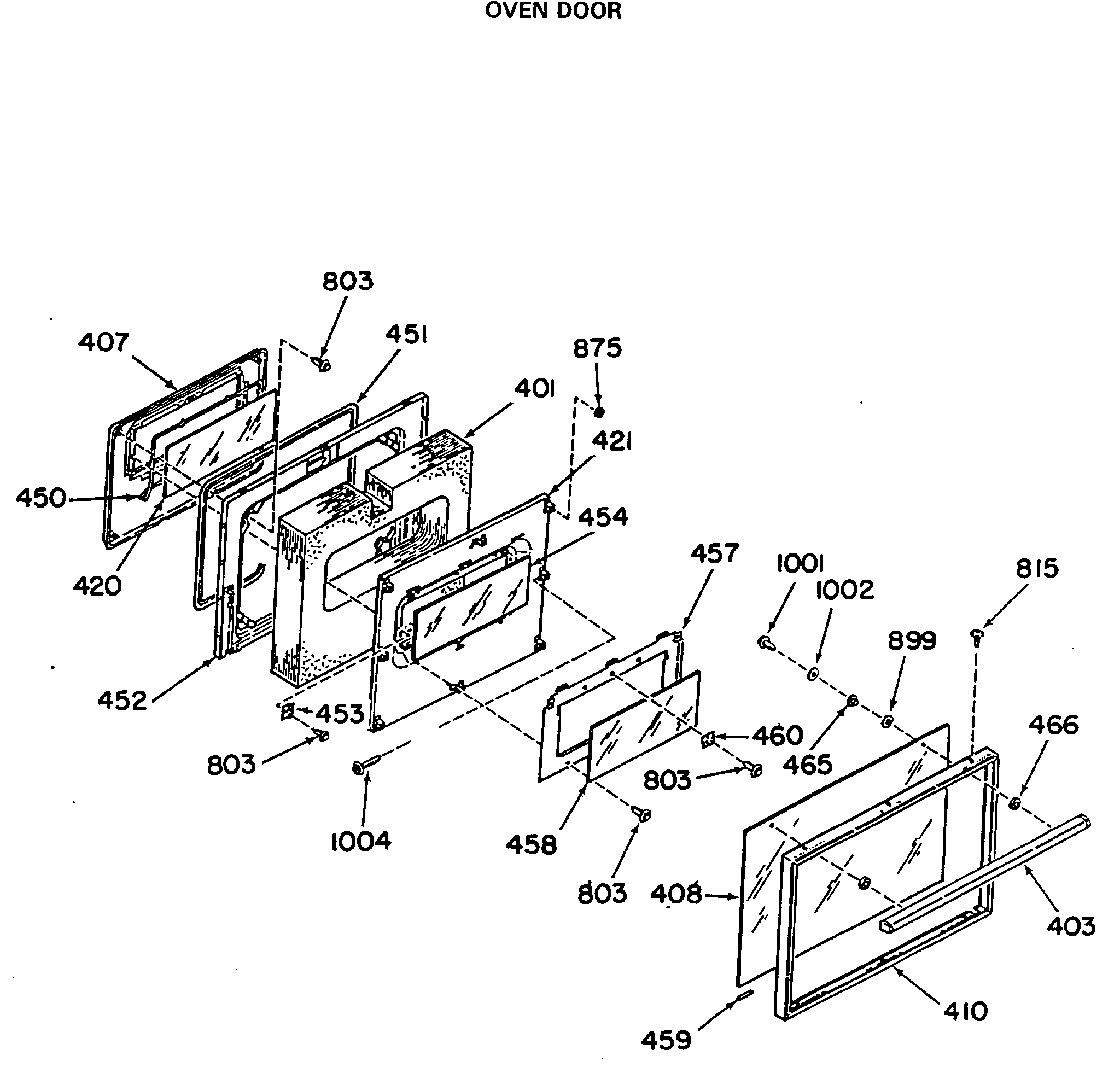

JGSP10GEK1 OVEN DOOR

JGSP10GEK1 OVEN DOOR

Written by

in

JGSP10GEK1 OVEN DOOR

Products

PositionProduct
401INSULATION
403OV DOOR HANDLE
403HANDLE
407DOOR LINING PLUG
408WB56X1902 GE Oven Outer Glass
410UNKNOWN
420INNER DOOR GLASS
421INSULATION RETAINER
450WB2X9168 GE Oven Seal
451WB2X9373 GE Oven Gasket
452DOOR BAFFLE
453GEN WB02X9177
454CENTER GLASS
457GEN WB02X9178
458OV DR INTERMED GLASS-UP
459GEN WB02X9036
460GEN WB02X9174
466DOOR HANDLE SPACER-BLACK
803WB1M1 GE Oven Screw
815WB1K5191 GE Oven Zinc FL Screw
875FELT WASHER
899FIBER WASHER
1004GEN WB01X1184
