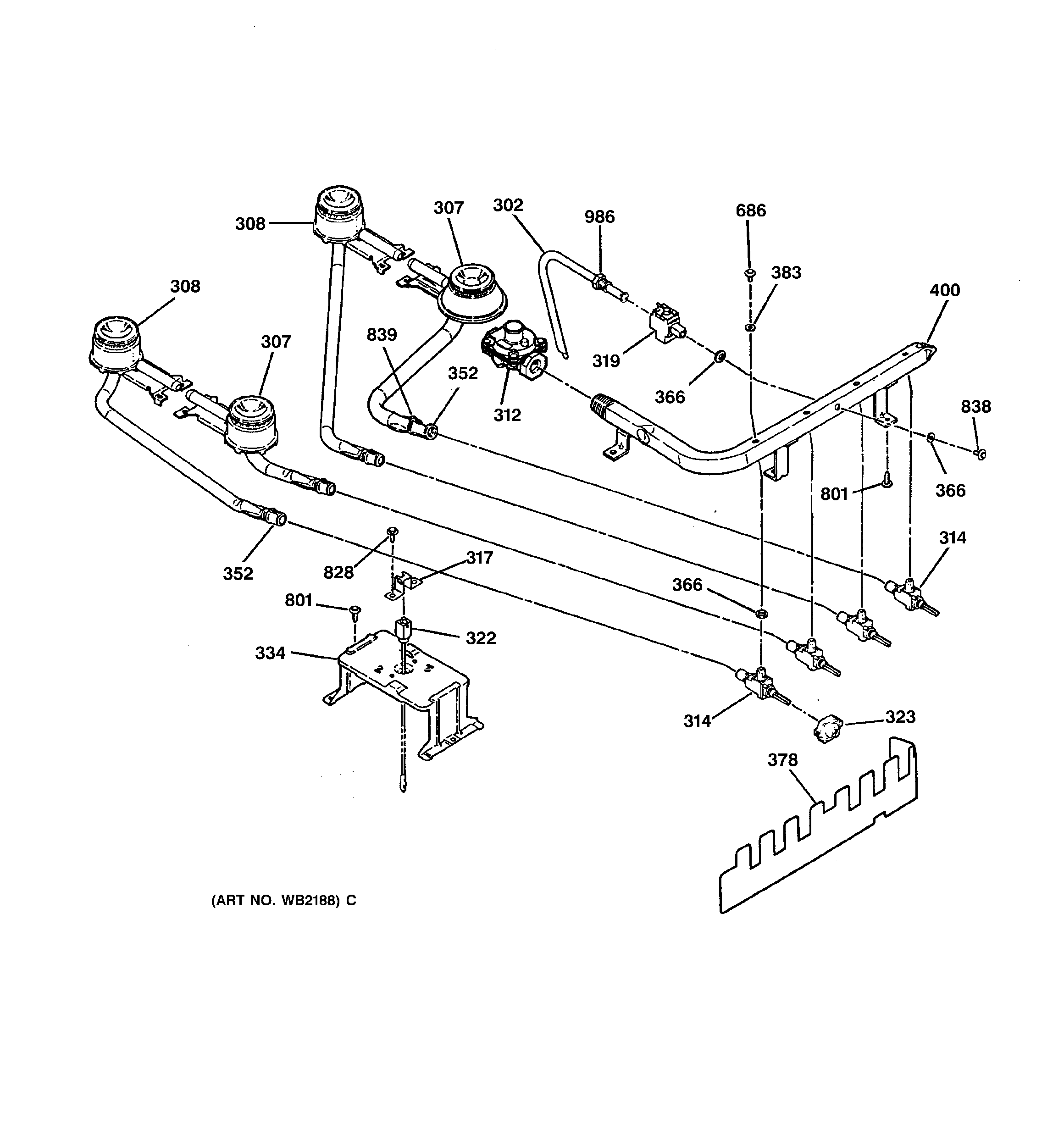

JGSP20GET1BB SURFACE BURNER PARTS – Aparts

JGSP20GET1BB SURFACE BURNER PARTS

Products

Position	Product
302	GEN WB28K5015
307	GEN WB16K5022
307	TOP BURNER-FRONT-LEFT
308	TOP BURNER-REAR-RIGHT
308	TOP BURNER-REAR-LEFT
312	GEN WB21X0465
314	GEN WB21K5024
314	GEN WB21K5023
317	IGNITER BRACKET-BROIL
317	311689 GE Ignition Bracket
317	IGNITER BRACKET
319	VALVE--SHUT-OFF
322	GEN WB13K5072
322	GEN WB13K5071
323	GEN WB24K5117
334	SUPPORT-TOP BURNER-R/L
352	GEN WB02X9739
366	VALVE GASKET
366	GASKET
366	VALVE GASKET
378	GEN WB34K5149
383	GEN WB04K5002
383	GEN WB04K5003
400	GEN WB28K5059
686	GEN WB01K5171
801	WB1M1 GE Oven Screw
828	WB1X1141 GE Oven Screw 8-32
838	GEN WB01X1121
839	AIR SHUTTER SCREW-OVEN
986	NUT
