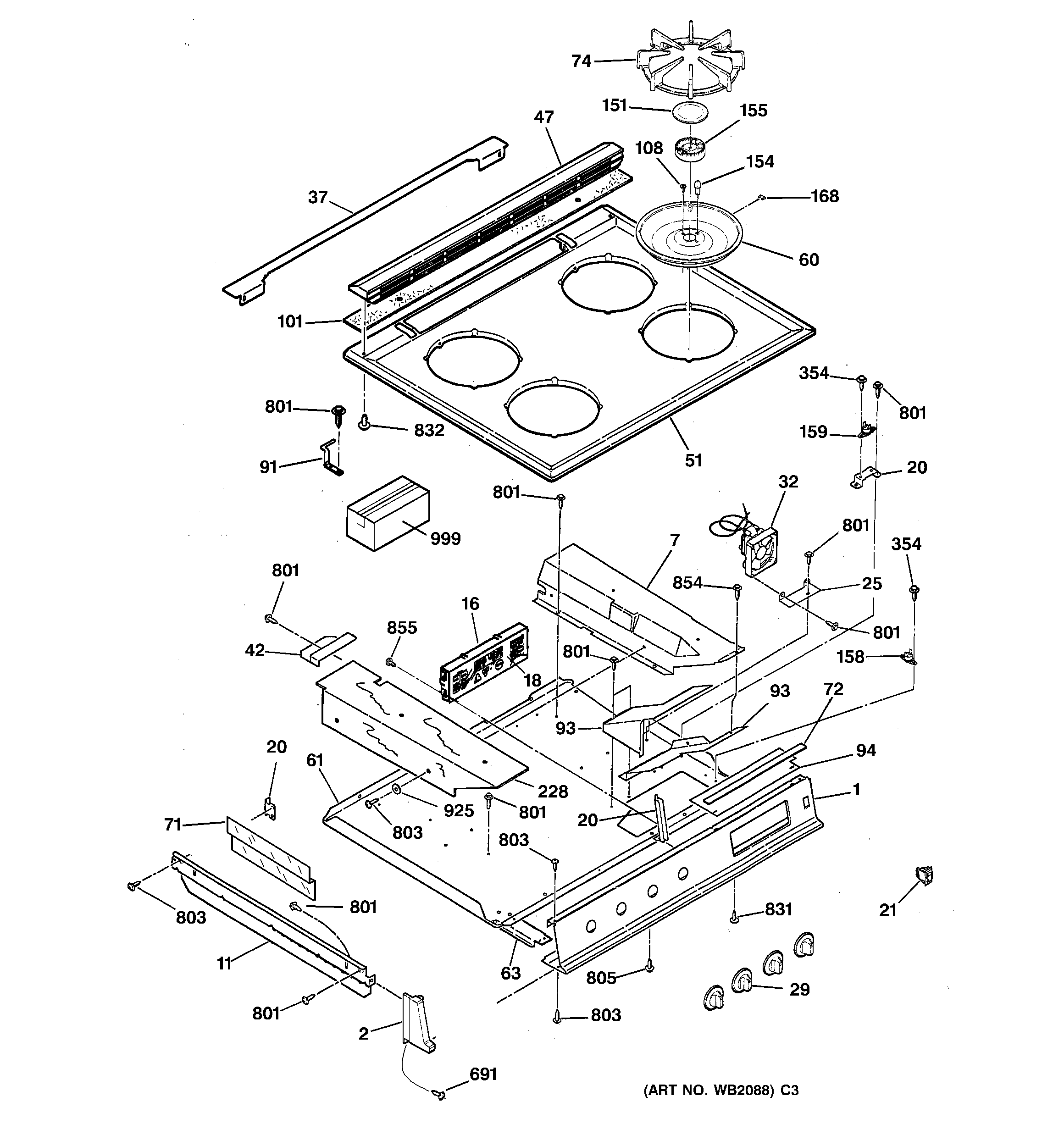

JGSP23BEW1BB CONTROL PANEL & COOKTOP

Written by

Products

Position	Product
1	GEN WB36K5708
2	GEN WB36K5378
2	GEN WB36K5379
7	GEN WB26M0001
11	SIDE EXTENSION
16	GEN WB27K5327
18	WB27K5337 GE Oven Clock Plate Black
20	GEN WB02K5238
20	GEN WB02M0077
20	GEN WB02M0075
21	GEN WB24X0415
25	GEN WB02X9131
29	GEN WB03K5267
32	GEN WB26X0100
37	MAINTOP FILLER-BLACK
42	GEN WB34K5076
47	GEN WB34K5205
50	BRACKET BKGD LT
51	GEN WB62K5141
60	GEN WB31K5090
60	GEN WB31K5088
61	GEN WB64K5092
63	BBB STIFFENER-RT
63	BBB STIFFENER-LT
71	GEN WB35K5126
71	GEN WB35K5134
72	GEN WB06K5014
74	GEN WB31K5089
91	MAINTOP HINGE-LT
91	MAINTOP HINGE-RT
93	GEN WB34K5075
93	GEN WB34K5074
94	GEN WB34K5153
101	GEN WB35K5037
108	WB1X5364 GE Oven Mounting Screw
133	FELT PAD
151	CAP BURNER SMALL (BK)
151	WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
151	CAP BURNER MED (BK)
154	WB13K18 GE Oven Electrode
155	BURNER HEAD-SM
155	BURNER HEAD-MED
158	WB24K5041 GE Oven Fan Limit Switch
159	GEN WB24K5141
168	ELECTRODE CLIP
213	SUPPORT-BACKSPLASH-RIGHT
228	GEN WB35K5044
228	FLUE DEFL INSULATION-FR
354	WB1X536 GE Oven Screw
691	WB1K5177 GE Oven Trim Screw
800	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
803	WB1K5162 GE Oven Black Screw
805	GEN WB01X1113
831	GEN WB01X1132
854	SCREW-BRT. NI.
855	GEN WB01X1295
875	WH2X930 GE Screw
888	GEN WB01M0005
890	WB1X1118 GE Oven Screw 6-32T
925	WB1K5117 GE Oven Washer
947	CABLE CLIP
953	CLIP CABLE NYLON
967	GEN WB02X9020
967	CLIP
999	GEN WB18K5608
999	GEN WB18K5659
999	GEN WB18K5354
999	GEN WB18T10025
999	GEN SR13635
999	GEN SR10284
999	GEN 49-8727
999	GEN 31-0992
999	IGNITOR WIRE HARNESS
999	GEN WB18T10027
