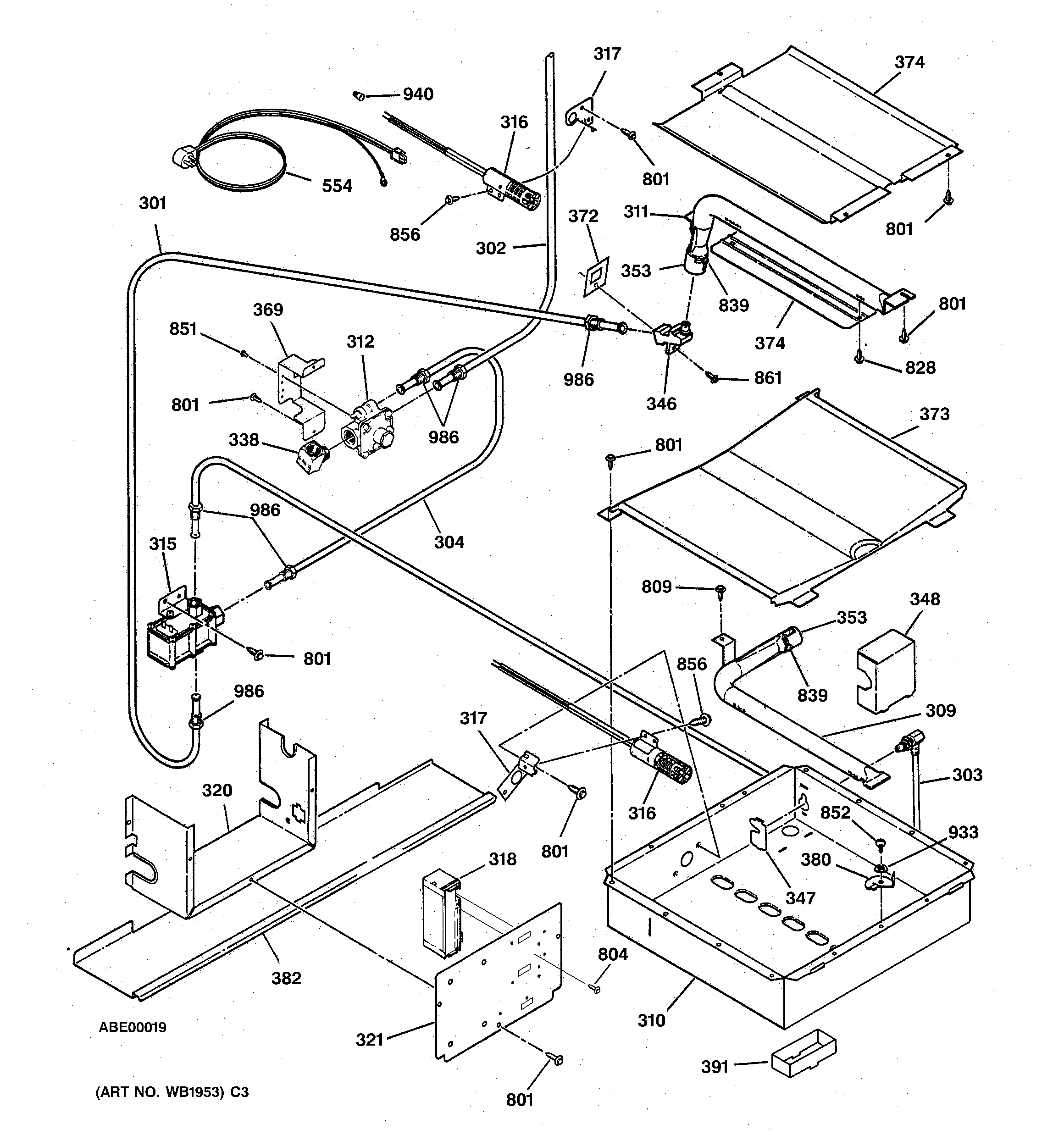

JGSP23BEW1BB OVEN BURNER

JGSP23BEW1BB OVEN BURNER

Written by

in

JGSP23BEW1BB OVEN BURNER

Products

PositionProduct
301GEN WB28K5021
302GEN WB28K5019
303GEN WB28K5025
304GEN WB28K5023
309GEN WB28X0089
310WB53T10001 GE Wb53T10003;
311GEN WB28X0088
312PRESSURE REGULATOR
315CONTROL VALVE
316WB2X9154 GE Oven Igniter with 8" Leads
317IGNITER BRACKET-BROIL
317311689 GE Ignition Bracket
318GEN WB13K0025
320GEN WB34K5146
321WIRE COVER FRONT
338GEN WB06X0080
346GEN WB02X9156
347WB2X9163 GE Plate
348ORIFICE FITTING SHIELD
353AIR SHUTTER-OVEN
369GEN WB02K5227
372GEN WB06K5015
373GEN WB34K5248
374BROILER BURNER BAFFLE-LO
374BRO BURN BAFFLE
380WB14X115 GE Oven Latch
382GEN WB34K5147
391INSULATION RETAINER
554WB8K5039 GE Range Power Cord
801WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
828WB1X1141 GE Oven Screw 8-32
839AIR SHUTTER SCREW-OVEN
851GEN WB01X5691
852SCREW
856WB1X1293 GE Oven Screw
861GEN WB01X1307
933GEN WB01X1256
940WB1X371D Package of 12 Ceramic Wire Connector
986NUT
