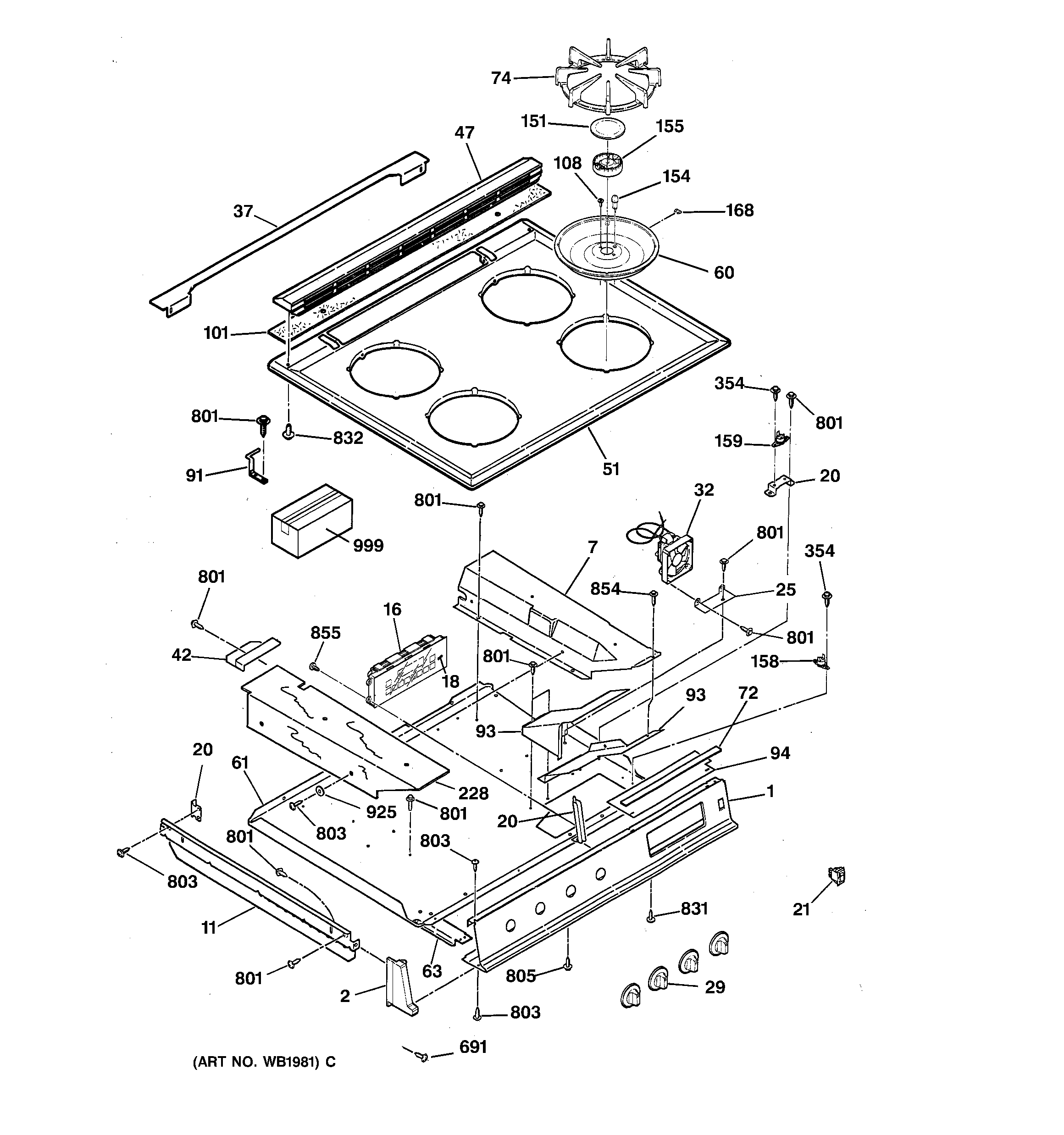

JGSP23WEV2WW CONTROL PANEL & COOKTOP

JGSP23WEV2WW CONTROL PANEL & COOKTOP

Written by

in

JGSP23WEV2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36K5590
2GEN WB36K5411
2GEN WB36K5410
7GEN WB26M0001
11SIDE EXTENSION
16GEN WB27K5187
18GEN WB27K5222
20GEN WB02K5238
20GEN WB02M0075
20GEN WB02M0077
21WB24K5022 GE Oven Rocker Switch
25GEN WB02X9131
29GEN WB03K5268
32GEN WB26X0100
37GEN WB07K5499
42GEN WB34K5076
47GEN WB34K5213
51GEN WB62K5142
60GEN WB31K5091
60WB31K5092 GE Oven Burner Bowl
61GEN WB64K5092
63BBB STIFFENER-RT
63BBB STIFFENER-LT
72GEN WB06K5014
74WB31T10004 GE Oven Burner Grate
91MAINTOP HINGE-RT
91MAINTOP HINGE-LT
93GEN WB34K5074
93GEN WB34K5075
94GEN WB34K5153
101GEN WB35K5037
108WB1X5364 GE Oven Mounting Screw
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
151GEN WB29K0045
151GEN WB29K0042
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
155BURNER HEAD-MED
158WB24K5041 GE Oven Fan Limit Switch
159WB24K5085 GE Oven Limit Switch
168ELECTRODE CLIP
228FLUE DEFL INSULATION-FR
228GEN WB35K5044
354WB1X536 GE Oven Screw
691WB1K5169 GE Trim Screw 10-16 X 3/8" White
801WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
803WB1K5162 GE Oven Black Screw
805GEN WB01X1113
831GEN WB01X1132
832WB1X1118 GE Oven Screw 6-32T
854SCREW-BRT. NI.
855GEN WB01X1295
925WB1K5117 GE Oven Washer
946GEN WB01M0015
953CLIP CABLE NYLON
967CLIP
999GEN WB18K5505
999USE CARE MANUAL
999GEN 31-13226
999GEN WB18K5354
999GEN WB18K5375
999GEN WB18K5376
999GEN WB18K5557
999GEN 31-10181
