JGSP23WEY7WW DOOR

JGSP23WEY7WW DOOR

Written by

in

JGSP23WEY7WW DOOR

Products

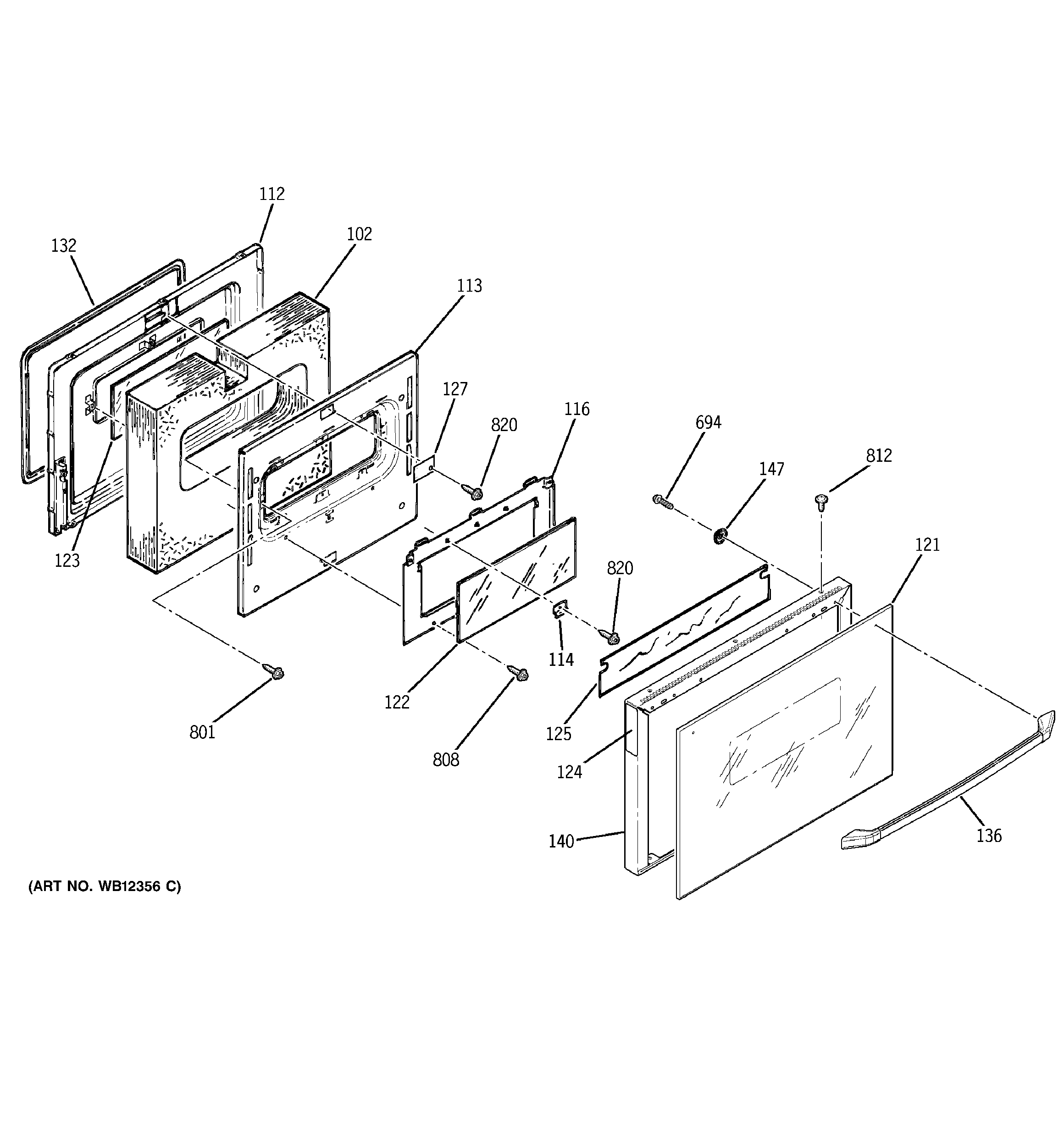

PositionProduct
102OVEN DOOR INSULATION
112GEN WB55T10018
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57T10111
122GEN WB57K5141
123CENTER GLASS
124GEN WB35K5104
125GEN WB34K5091
127HEAT SHIELD
132WB02T10013 GE Oven Gasket
136GEN WB15T10031
140GEN WB56K5136
147GEN WB02K5312
694WB1K5157 GE Oven Black Screw
801WB1M1 GE Oven Screw
808WB1X1116 GE Oven Screw
812SCREW-BLACK
812WB1K5191 GE Oven Zinc FL Screw
820WB1X1424D GE Oven Screw Package
