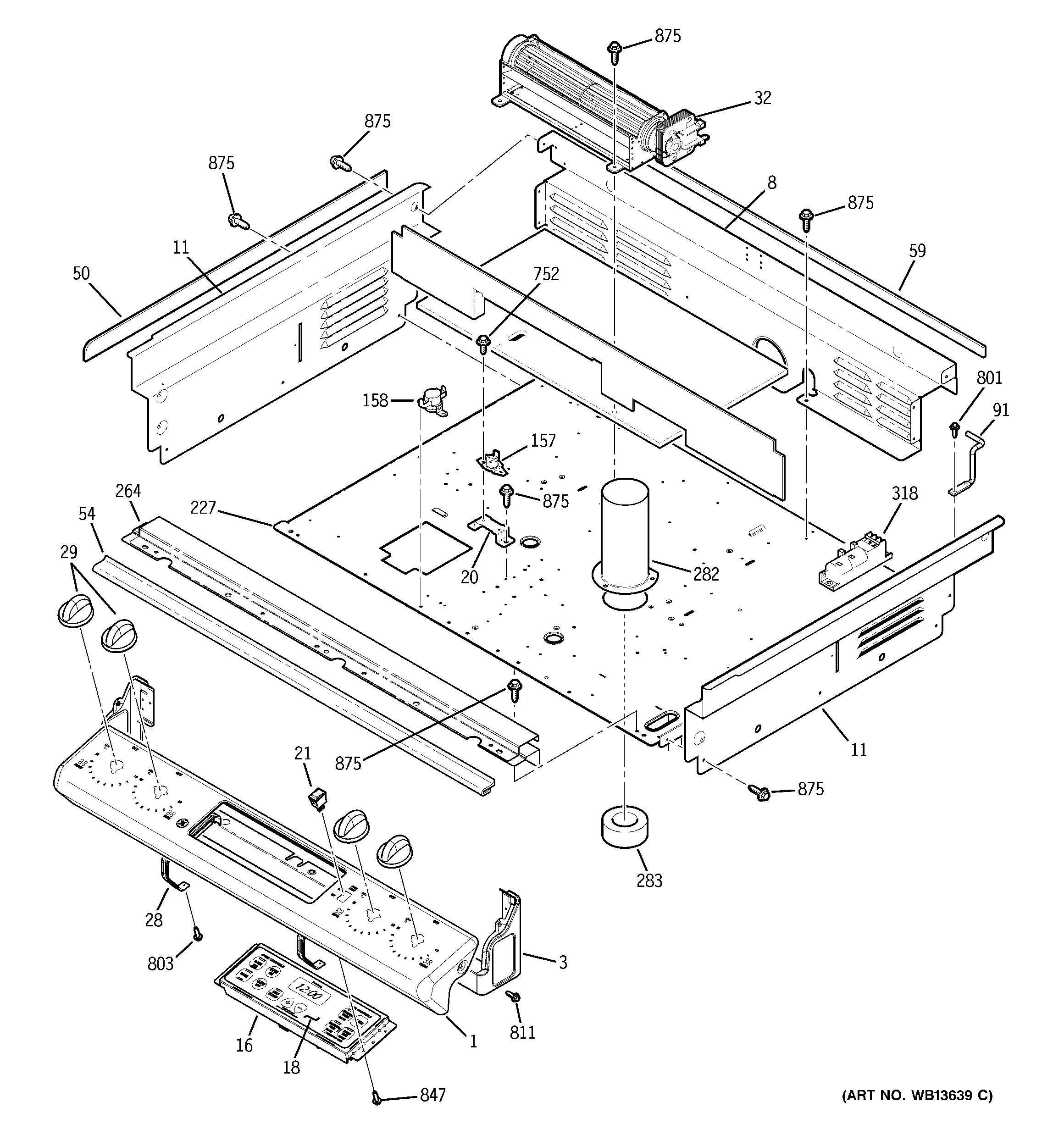

JGSP28BEK1BB CONTROL PANEL & COOLING FAN

Products

Position	Product
1	GEN WB36T10800
3	WB28K10032 GE Oven LP Orifice
3	WB28K10031 GE Oven Orifice
3	WB28K10030 GE Oven Natural Gas Orifice
3	WB28K10029 GE Oven Natural Gas Orifice
3	WB28K10329 GE Oven Orifice Spud (VISION) Natural Gas
3	WB28K10215 GE Oven Orifice
3	WB36T10792 GE Control Panel Bottom
8	GEN WB07T10405
11	WB07T10473 GE Oven Right Side Extension
11	WB07T10474 GE Oven Extension Side Left
16	OVEN CONTROL T09 (GAS)
18	GEN WB27T10659
20	WB02T10270 GE Oven Switch Bracket
20	GEN WB02K5238
21	WB24T10042 GE Oven Rocker Switch
28	WB02T10267 GE Oven Control Bracket
28	WB02T10244 GE Oven Felt Pad
29	GEN WB03T10226
32	WB26T10039 GE Oven Blower Assembly
50	WB02T10320 GE Oven Left Hand Maintop Gasket
50	GEN WB02T10148
54	GEN WB04T10059
59	WB02T10511 GE Oven Outer Gasket
91	WB14T10028 GE Maintop Hinge
91	WB14T10027 GE Maintenance Top Right
157	WB24T10116 GE Oven Limit Switch
158	WB24T10118 GE Oven Limit Switch Bimetal
227	GEN WB02T10271
264	GEN WB07T10476
282	GEN WB28T10096
283	WB35T10090 GE Oven Back & Bottom Insulation
318	SPARK MODULE
752	WB1K5200 GE Oven Screw 340531
801	WB1M1 GE Oven Screw
803	WB01T10095 GE Oven Screw 10-32 HWH I 13/16
811	WB01T10094 GE Oven Screw 8-32 PN 1/2
847	WB1X1118 GE Oven Screw 6-32T
847	WB1K5167 GE Screw 8-18 X 3/8"
875	WH2X930 GE Screw
