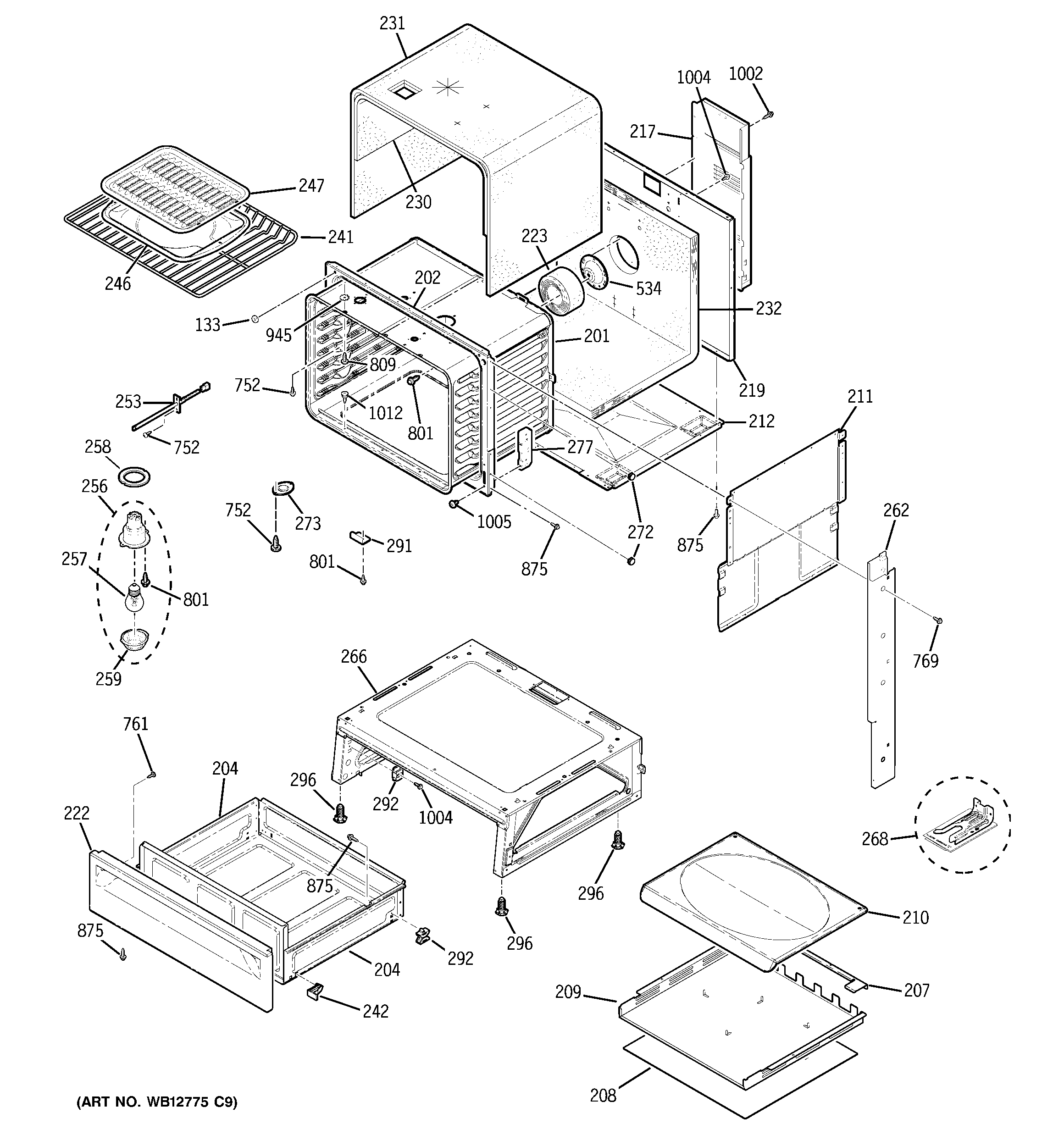

JGSP28CEK1CC BODY PARTS

JGSP28CEK1CC BODY PARTS

Written by

in

JGSP28CEK1CC BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
201GEN WB63T10102
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
207GEN WB02T10192
208GEN WB35T10091
209GEN WB34T10080
210GEN WB63T10101
211GEN WB02K5306
212GEN WB02T10247
217GEN WB34T10075
219GEN WB56T10136
222DRAWER PANEL-BISQUE
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10088
231GEN WB35T10089
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
253WB21X22134 GE Oven Sensor Assembly
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
262GEN WB07T10393
262GEN WB07T10394
266GEN WB39T10006
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10053
291GEN WB02X9152
292WB48T10013 GE Oven Drawer Support
292WB02X33180 GE Oven Drawer Glide
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
761WB1K5062 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
