JGSP28DEN1BB BODY PARTS

JGSP28DEN1BB BODY PARTS

Written by

in

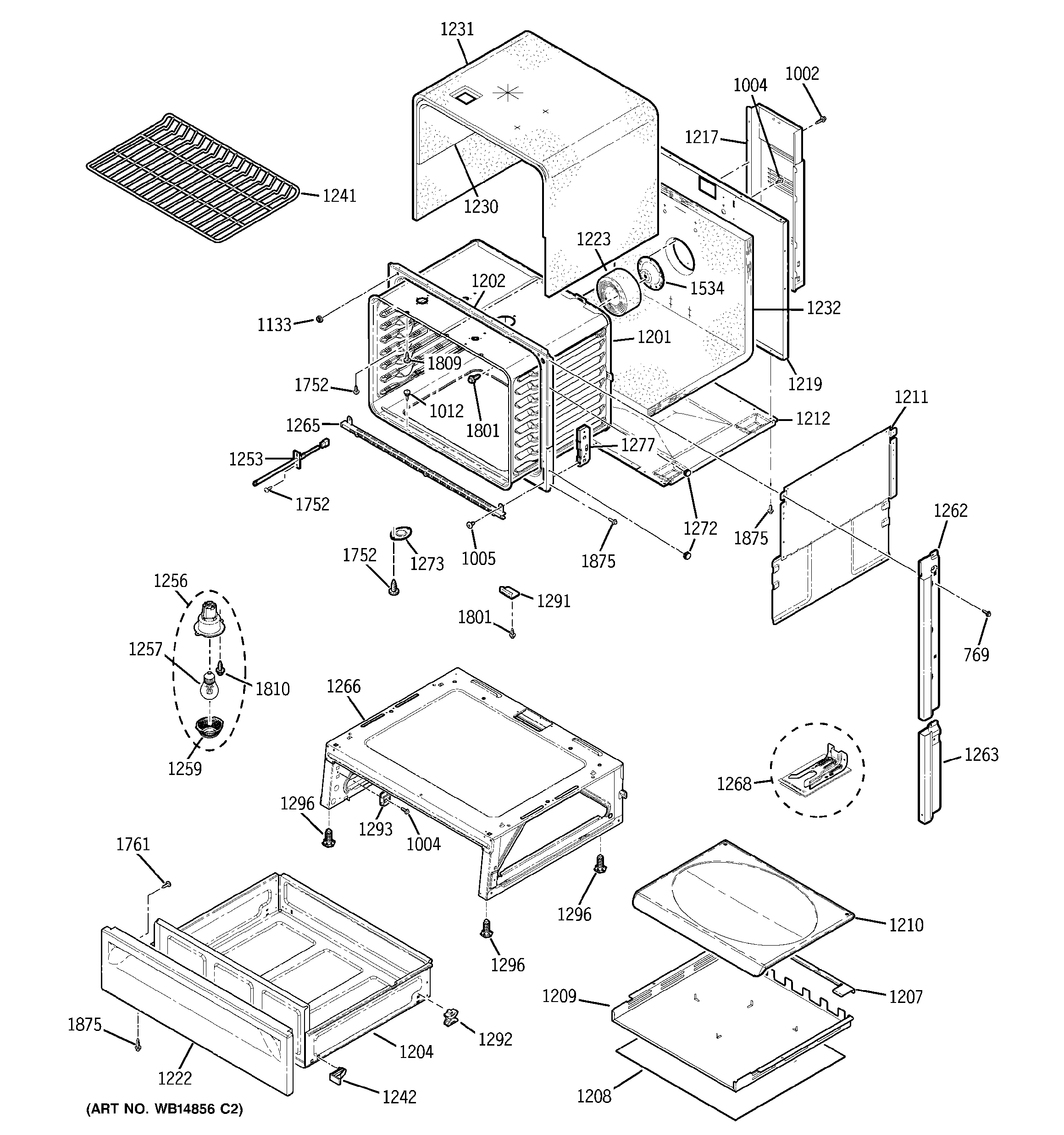

JGSP28DEN1BB BODY PARTS

Products

PositionProduct
769WB1X500D GE Oven Screw Package
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
1133WB01T10022 GE Oven Door Bumper
1201GEN WB63T10102
1202WB63T10083 GE Front Lower Frame
1204WB55T10180 GE Oven Drawer Body Assembly
1207GEN WB02T10192
1208GEN WB35T10091
1209GEN WB34T10080
1210GEN WB63T10101
1211WB02T10284 GE Oven Side Insulation Retainer
1212GEN WB02T10454
1217GEN WB34T10075
1219GEN WB02T10342
1222GEN WB56T10267
1222GEN WB56T10270
1222GEN WB56T10268
1223WB35T10090 GE Oven Back & Bottom Insulation
1230GEN WB35T10187
1231GEN WB35T10089
1241WB48T10095 GE Oven Rack
1242WB48T10068 GE Oven Wedge Drawer
1253WB21X22134 GE Oven Sensor Assembly
1256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
1257RANGE ONLY 40W 120V APPL BULB
1259WB25T10002 GE Oven Bulb Lens
1262WB07T10525 GE Trim Vertical Side Light
1262WB07T10523 GE Oven Vertical Trim Side Left (White)
1262WB07T10524 GE Right Side Trim Vertical (Bq)
1262WB07T10520 GE Right Side Trim (Black)
1262WB07T10521 GE Vertical Side Light Trim (Black)
1262WB07T10522 GE Oven Trim Vertical Side RT (White)
1263TRIM VERT SIDE RT (BK)
1263WB07T10634 GE Left Side Vertical Trim (Bq)
1263GEN WB07T10633
1263WB07T10632 GE Vertical Left Side Trim
1265WB07T10516 GE Oven Front Trim Assembly
1266GEN WB39T10006
1268WB02T10415 GE Oven Anti-Tip Bracket Assembly
1272WB02T10034 GE Oven Body Side Support
1273GEN WB02K5365
1277GEN WB10T10083
1291GEN WB02X9152
1292WB02X33180 GE Oven Drawer Glide
1293WB48T10013 GE Oven Drawer Support
1296WB02X10521 GE Oven Leveling Leg
1534WB26T10015 GE Oven Cavity Support
1752WB1K5200 GE Oven Screw 340531
1761WB1K5029 GE Oven Screw
1761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
1761WB1K5185 GE Oven White Screw
1761WB1K5062 GE Oven Screw
1761WB1X5364 GE Oven Mounting Screw
1801WB1M1 GE Oven Screw
1809WB1X1137 GE Oven Screw
1810WB1X1130 GE Oven Screw 10-32
1875WH2X930 GE Screw
