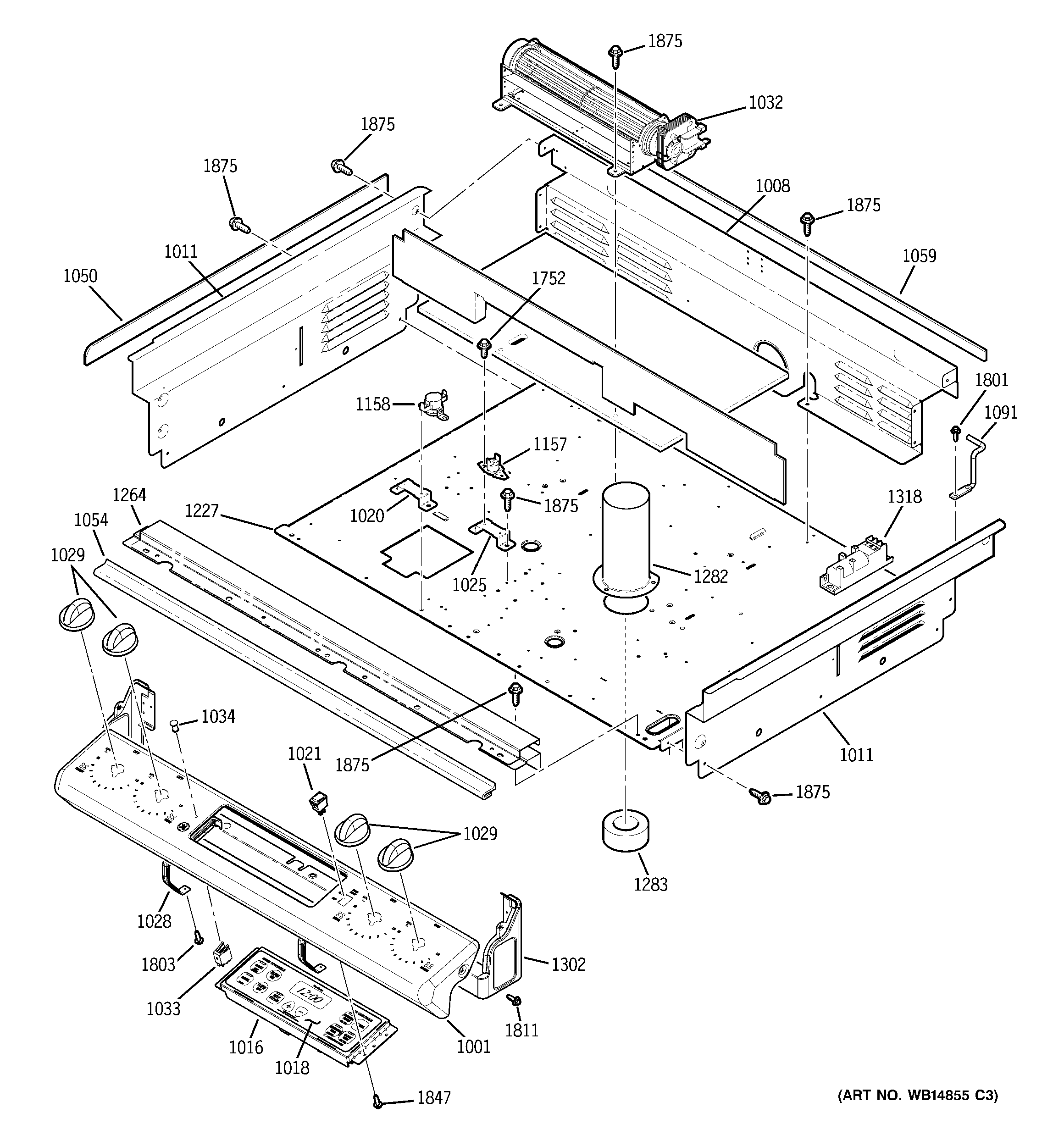

JGSP28DEN1CC CONTROL PANEL & COOLING FAN

JGSP28DEN1CC CONTROL PANEL & COOLING FAN

Written by

in

JGSP28DEN1CC CONTROL PANEL & COOLING FAN

Products

PositionProduct
1001GEN WB36T11198
1001GEN WB36T11197
1001GEN WB36T11201
1008GEN WB07T10405
1011WB07T10474 GE Oven Extension Side Left
1011WB07T10473 GE Oven Right Side Extension
1016OVEN CONTROL T09 (GAS)
1018WB27T11096 GE Oven Control Faceplate
1018GEN WB27T11080
1018GEN WB27T11095
1020WB02T10270 GE Oven Switch Bracket
1021WB24T10053 GE Oven Rocker Switch
1025GEN WB02K5238
1028WB02T10267 GE Oven Control Bracket
1029GEN WB03T10296
1029GEN WB03T10297
1029GEN WB03T10294
1032WB26T10039 GE Oven Blower Assembly
1033WB25K10010 GE Oven Light Indicator Pilot
1034LENS
1050GEN WB02T10319
1050WB02T10320 GE Oven Left Hand Maintop Gasket
1054GEN WB04T10060
1054GEN WB04T10059
1054GEN WB04T10061
1059WB02T10511 GE Oven Outer Gasket
1091WB14T10028 GE Maintop Hinge
1091WB14T10027 GE Maintenance Top Right
1157WB24T10116 GE Oven Limit Switch
1158WB24T10118 GE Oven Limit Switch Bimetal
1227GEN WB02T10413
1264GEN WB07T10476
1282GEN WB28T10096
1283WB35T10090 GE Oven Back & Bottom Insulation
1302GEN WB36T10793
1302WB36T10795 GE Oven Bottom Control Panel
1302WB36T10792 GE Control Panel Bottom
1318SPARK MODULE
1752WB1K5200 GE Oven Screw 340531
1801WB1M1 GE Oven Screw
1803WB01T10095 GE Oven Screw 10-32 HWH I 13/16
1811WB01T10094 GE Oven Screw 8-32 PN 1/2
1847WB1X1118 GE Oven Screw 6-32T
1847WB1K5167 GE Screw 8-18 X 3/8"
1875WH2X930 GE Screw
