JGSP28DEN1WW COOKTOP

JGSP28DEN1WW COOKTOP

Written by

in

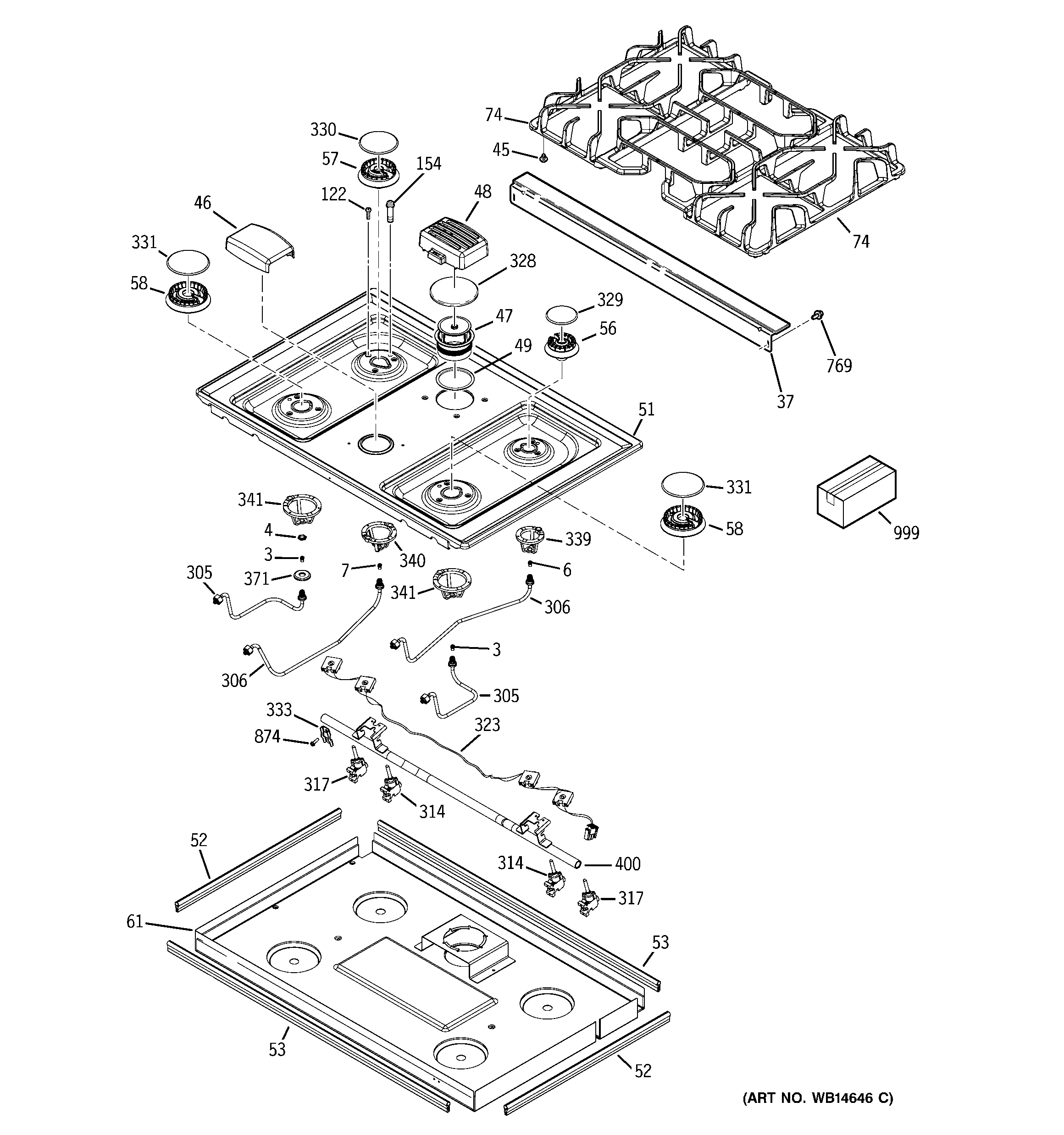

JGSP28DEN1WW COOKTOP

Products

Position	Product
3	WB28K10032 GE Oven LP Orifice
3	WB28K10030 GE Oven Natural Gas Orifice
4	WB01K10037 GE Oven Economic Nut
6	WB28K10031 GE Oven Orifice
6	WB28K10029 GE Oven Natural Gas Orifice
7	WB28K10329 GE Oven Orifice Spud (VISION) Natural Gas
7	WB28K10215 GE Oven Orifice
37	GEN WB07K10156
37	GEN WB07K10157
37	BACKSPLASH FILLER-BLACK
45	WB02T10461 GE Oven Range Grate Foot
46	GEN WB31T10118
46	GEN WB31T10119
46	GEN WB31T10117
47	GEN WB38T10023
48	COVER VENT (BK)
48	GEN WB31T10115
48	GEN WB31T10116
49	GEN WB04T10055
51	GEN WB62T10430
51	MAINTOP ASM BK
51	MAINTOP ASM BQ
52	GEN WB04T10052
53	GEN WB04T10051
56	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57	WB16K10055 GE Oven Burner Base
58	BURNER 12K
61	GEN WB64T10054
74	GEN WB31T10113
74	WB31T10111 GE Oven Grate Cast Assembly
74	GEN WB31T10112
122	GEN WB01K10008
154	GEN WB13K10014
305	GEN WB28T10140
305	GEN WB28T10143
306	GEN WB28T10141
306	GEN WB28T10142
314	WB21X22075 GE Oven Valve Kit
317	GEN WB19T10042
323	GEN WB18T10343
328	BURNER CAP BK MED
329	WB29K10009 GE Oven Burner Cap
329	WB29K10002 GE Range Oven Cooktop Small Burner Cap
329	CAP-BURNER SMALL TAUPE
330	WB29K10001 GE Oven Burner Cap
330	CAP-BURNER MED TAUPE
330	WB29K10004 GE Oven Gray Burner Cap
331	WB29K10007 GE Oven Burner Cap, Left
331	WB29X36765 GE Large Cap Burner Taupe Rep
331	WB29K10006 GE Oven Burner Cap
333	WB6X93 GE Oven Clamp
339	WB02K10360 GE Oven Circuit Bracket Small
340	WB02K10361 GE Oven Orifice Holder
341	WB02K10362 GE Oven CKT Bracket MDM & L
371	GEN WB04T10053
400	GEN WB28T10139
769	WB1X500D GE Oven Screw Package
874	WB1M14 GE Oven Screw
999	GEN 31-10675
999	GEN 31-10738
999	GEN 49-80535
999	GEN 31-10601
999	GEN 31-14265
999	GEN WB18T10373
999	GEN 31-10737
