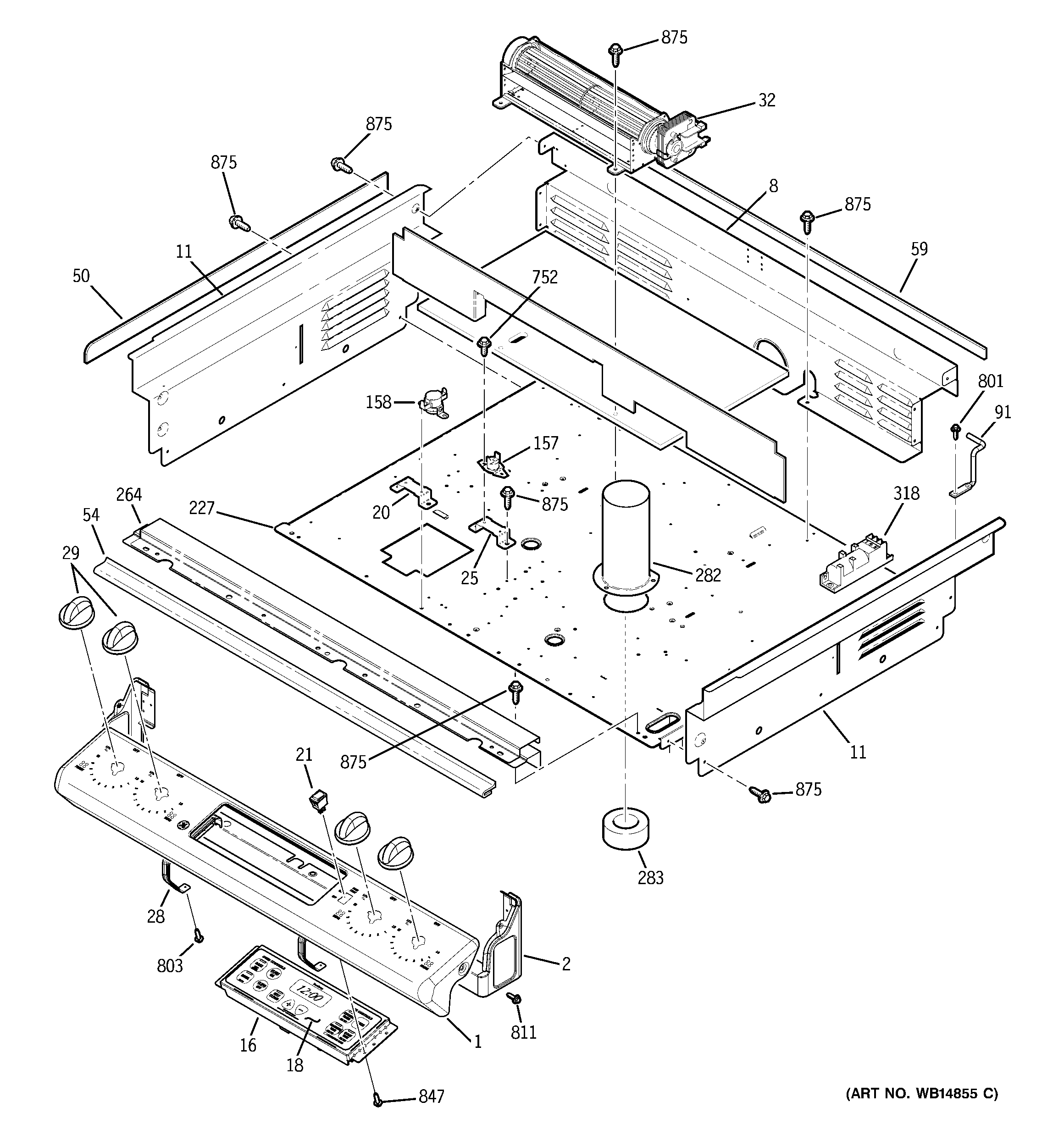

JGSP28SEN1SS CONTROL PANEL & COOLING FAN

Products

Position	Product
1	GEN WB36T11199
2	WB36T10792 GE Control Panel Bottom
8	GEN WB07T10405
11	WB07T10474 GE Oven Extension Side Left
11	WB07T10473 GE Oven Right Side Extension
16	OVEN CONTROL T09 (GAS)
18	GEN WB27T11080
20	WB02T10270 GE Oven Switch Bracket
21	WB24T10042 GE Oven Rocker Switch
25	GEN WB02K5238
28	WB02T10267 GE Oven Control Bracket
29	WB03T10295 GE Oven Gas Valve Knob (CH)
32	WB26T10039 GE Oven Blower Assembly
50	GEN WB02T10319
50	WB02T10320 GE Oven Left Hand Maintop Gasket
54	GEN WB04T10059
59	WB02T10511 GE Oven Outer Gasket
91	WB14T10027 GE Maintenance Top Right
91	WB14T10028 GE Maintop Hinge
157	WB24T10116 GE Oven Limit Switch
158	WB24T10118 GE Oven Limit Switch Bimetal
227	GEN WB02T10413
264	GEN WB07T10476
282	GEN WB28T10096
283	WB35T10090 GE Oven Back & Bottom Insulation
318	SPARK MODULE
752	WB1K5200 GE Oven Screw 340531
801	WB1M1 GE Oven Screw
803	SCR 10-32 HWH 1-13/16
811	WB01T10094 GE Oven Screw 8-32 PN 1/2
847	WB1K5167 GE Screw 8-18 X 3/8"
847	WB1X1118 GE Oven Screw 6-32T
875	WH2X930 GE Screw
