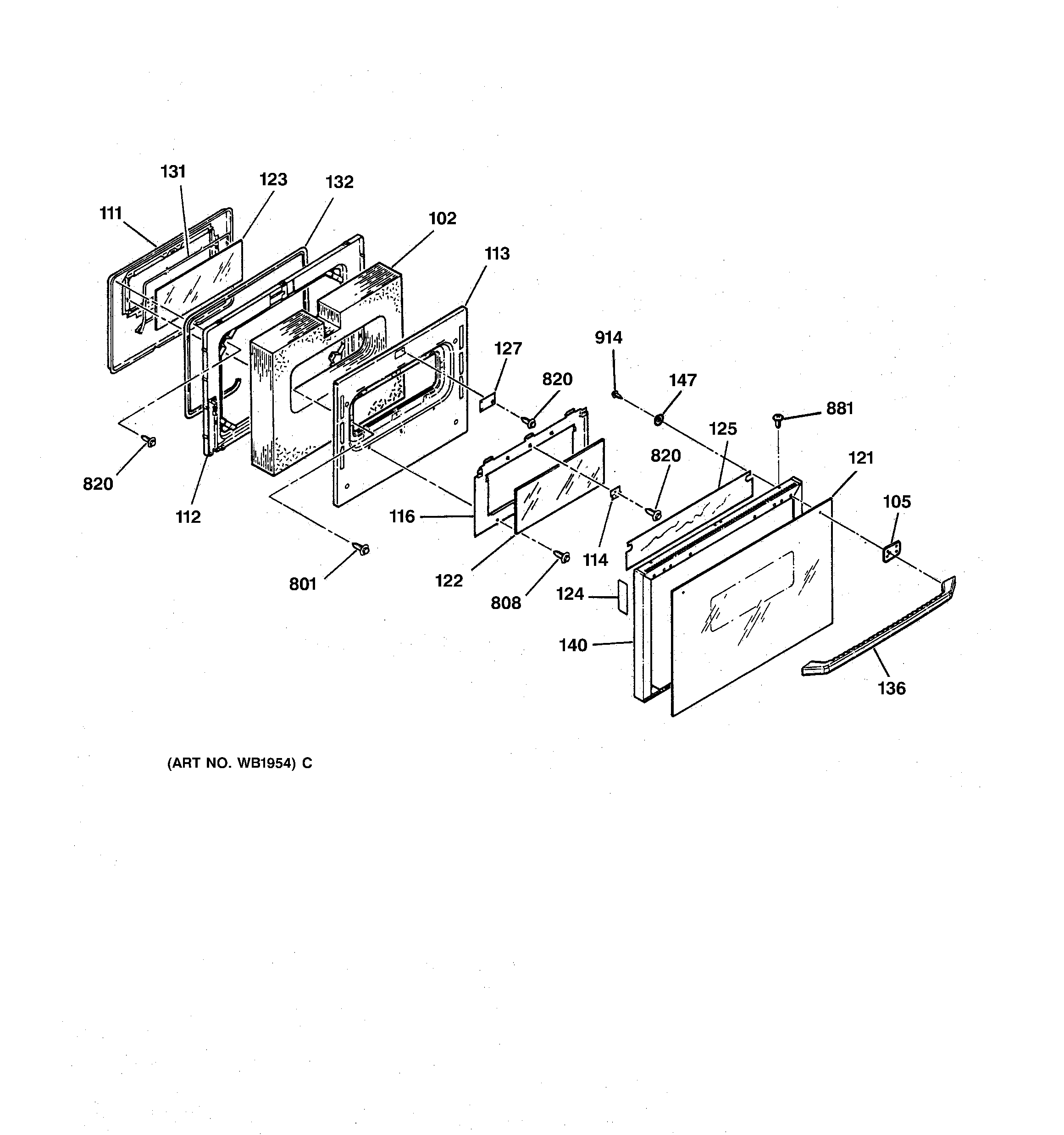

JGSP33WEV1WW OVEN DOOR

JGSP33WEV1WW OVEN DOOR

Written by

in

JGSP33WEV1WW OVEN DOOR

Products

PositionProduct
102OVEN DOOR INSULATION
105HANDLE TRIM-WHITE
111GEN WB55K5037
112GEN WB55K5038
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5234
122GEN WB57K5141
123CENTER GLASS
124GEN WB35K5104
125GEN WB34K5091
127HEAT SHIELD
131GEN WB32K5020
132WB2K5319 GE Oven Door Gasket
136GEN WB15X5211
140GEN WB55K5053
147GEN WB02K5312
801WB1M1 GE Oven Screw
808WB1X1116 GE Oven Screw
820WB1X1424D GE Oven Screw Package
881WB1K5191 GE Oven Zinc FL Screw
914GEN WB01K5144
