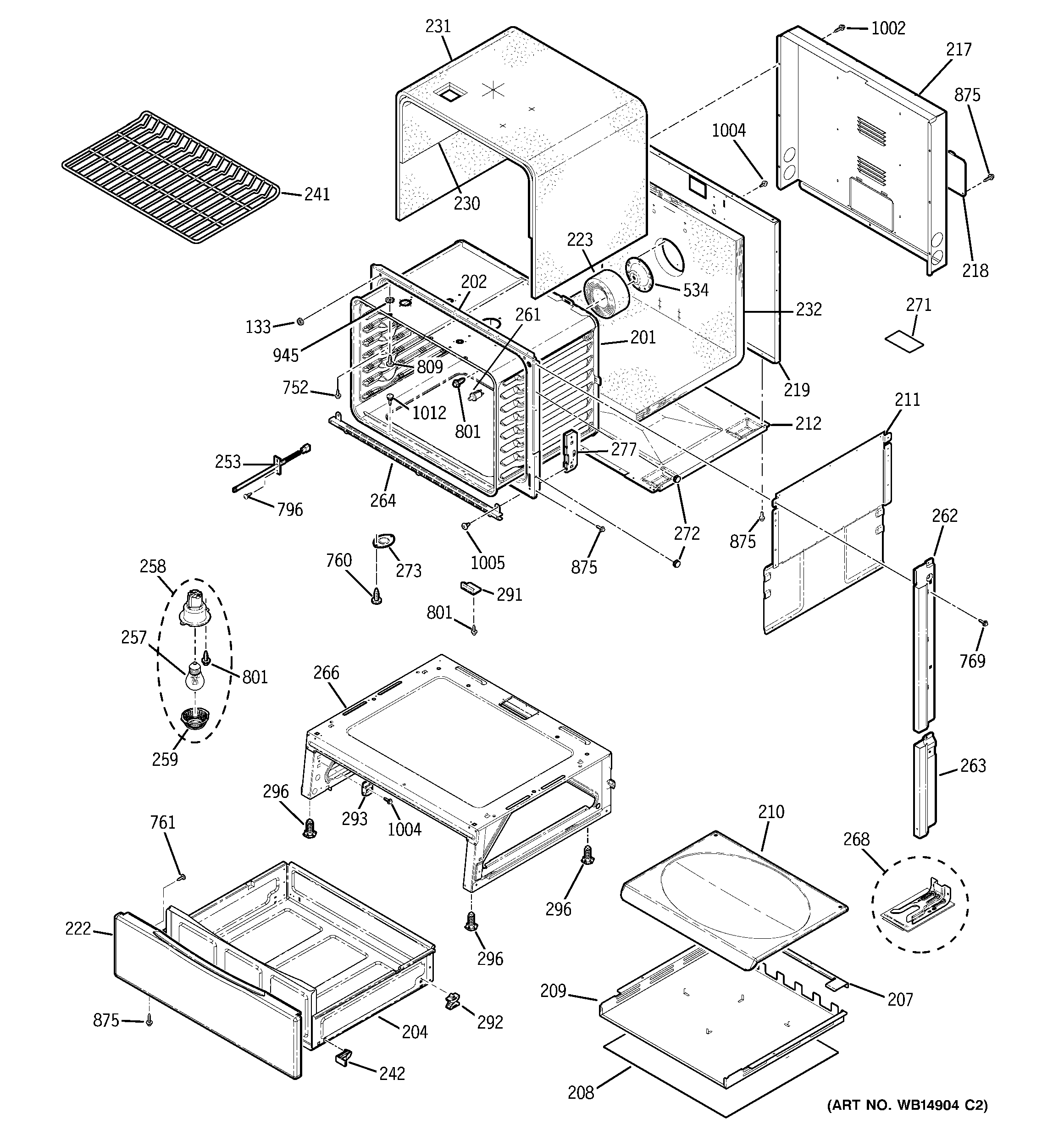

JGSP42DET1WW BODY PARTS

JGSP42DET1WW BODY PARTS

Written by

in

JGSP42DET1WW BODY PARTS

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
201GEN WB63T10102
202WB63T10083 GE Front Lower Frame
204WB55T10180 GE Oven Drawer Body Assembly
207GEN WB02T10192
208GEN WB35T10091
209GEN WB34T10080
210GEN WB63T10101
211WB02T10284 GE Oven Side Insulation Retainer
212GEN WB02T10454
217GEN WB02T10347
218GEN WB02T10234
219GEN WB02T10342
222GEN WB56T10268
222GEN WB56T10267
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10187
231GEN WB35T10089
232GEN WB35T10162
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
253WB21X22134 GE Oven Sensor Assembly
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
262WB07T10520 GE Right Side Trim (Black)
263WB07T10635 GE Oven Vertical Side Trim RT (White)
263WB07T10636 GE Oven Vertical Side Trim (White)
263WB07T10632 GE Vertical Left Side Trim
263TRIM VERT SIDE RT (BK)
264WB07T10516 GE Oven Front Trim Assembly
266GEN WB39T10012
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
272WB35K5112 GE Insulator Module
272GEN WB02T10411
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB1K5185 GE Oven White Screw
769WB1X500D GE Oven Screw Package
796WB1X5364 GE Oven Mounting Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
875WH2X930 GE Screw
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
