JGSS03EH1 1

Written by

JGSS03EH1 1

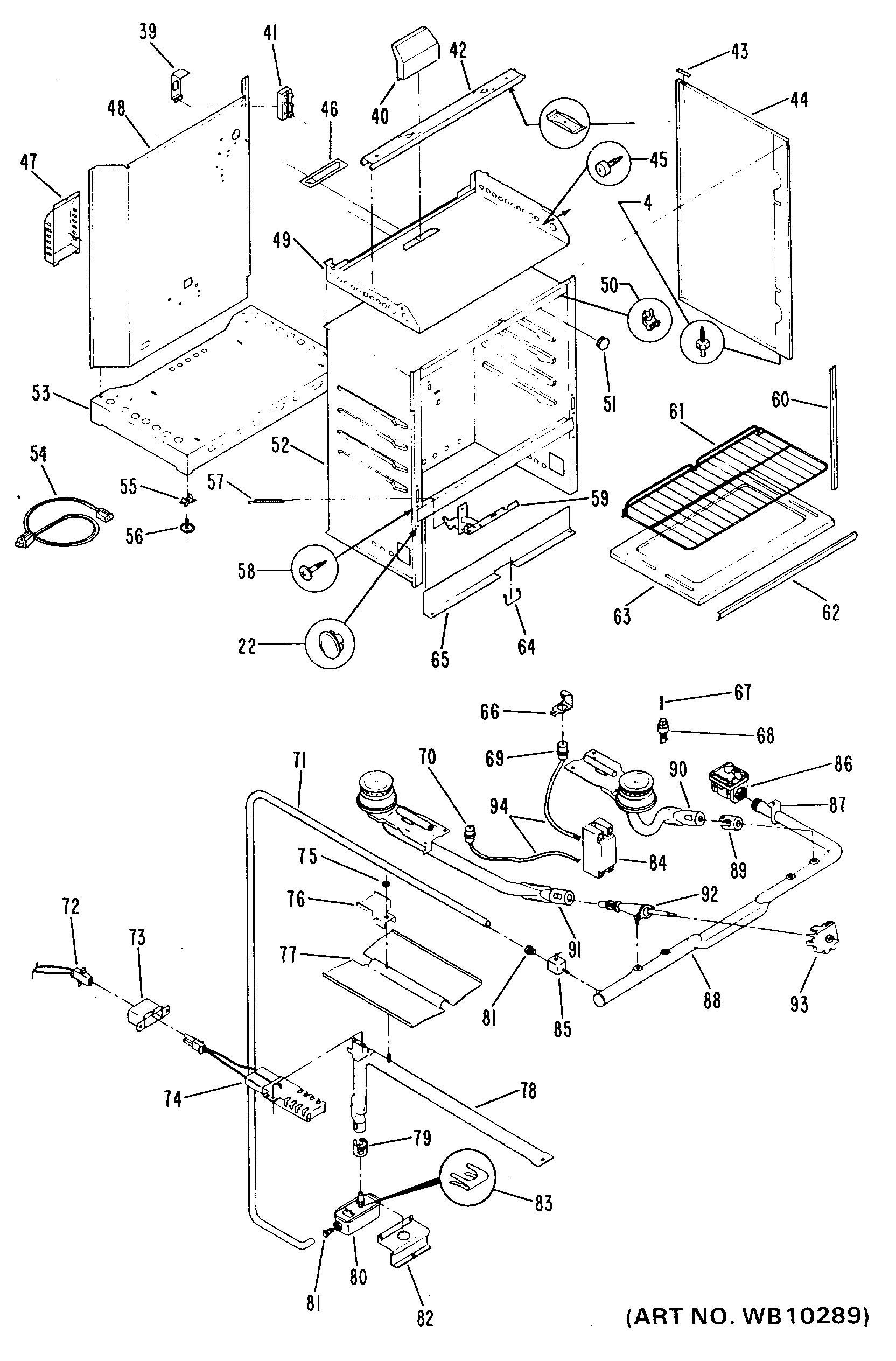

Products

Position	Product
4	GEN WB01X0712
22	GEN WB01X0702
39	GEN WB02X4211
40	BLUE BOX
41	TERMINAL BLOCK
42	SUPPORT TO BURNER
43	GLIDE MAIN TOP
44	PANEL-ALMOND
44	PANEL-WHITE
45	SCREW 6-20X1/2"
46	GEN WB55X0514
47	COVER IGNITOR
48	BACK MAIN
49	BURNER BOX
50	CLIP-THERMOSTAT BULB
51	GEN WB01X0707
53	MAIN BASE
54	GEN WB18X0214
55	FASTENER LEG LEVELER
56	LEVELING LEG
57	SPRING OVEN DOOR
58	SCREW-PANEL MTG
59	HINGE OVEN DOOR RH
59	HINGE OVEN DOOR LH
60	SEAL DOOR SIDE
61	GEN WB48X0166
62	SEAL DOOR BOTTOM/TOP
63	GEN WB55X0513
64	GEN WB02X4270
65	GEN WB49X0521
65	GEN WB02X4272
65	INSULATION SIDES & TOP
66	RETAINER IGN. HARNESS
67	GEN WB27X0277
68	GEN WB02X4213
69	BASE IGNITOR RH
70	BASE IGNITOR LH
71	TUBE OVEN GAS SUPPLY 7/16"X55"
72	GEN WB18X0218
74	12400035 Whirlpool Oven Flat Style Igniter Kit
75	NUT
76	SHIELD-OVEN BOTTOM
77	GEN WB49X0511
78	GEN WB28X0045
79	GEN WB02X4195
80	VALVE-OVEN SAFETY
81	GEN WB01X0713
82	GEN WB02X4220
83	FASTENER VALVE MTG
84	GEN WB21X0389
85	VALVE MANUAL CUT-OFF
86	GEN WB21X0395
87	GEN WB02X4188
88	MANIFOLD PIPE
89	MIXER AIR TOP BURNERS
90	GEN WB28X0041
91	GEN WB28X0042
92	VALVE-TOP BURNERS
93	GEN WB24X0325
94	GEN WB18X0215
