JGSS03PJ1 MAIN BODY – Aparts

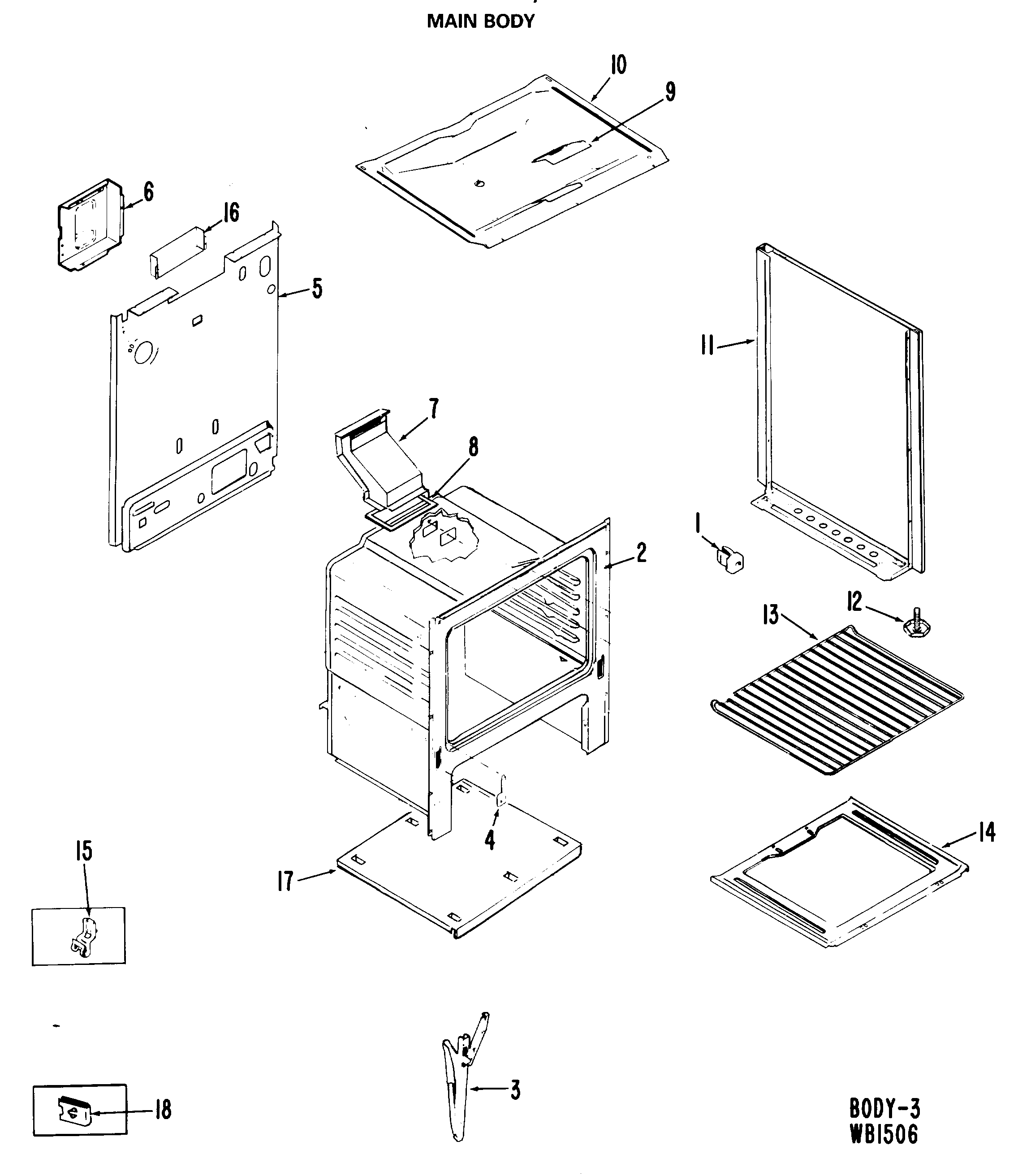

JGSS03PJ1 MAIN BODY

Products

Position	Product
1	GEN WB01X0931
2	OVEN ASSEMBLY
2	INSULATION-OVEN WRAP
2	GEN WB02X4970
2	PLUG-FRONT FRAME
3	SPRING-OVEN DOOR HINGE
3	HINGE-W/SPRING
4	COVER-HINGE CUT OUT
5	BACK MAIN
6	GEN WB63X0286
7	FLUE
8	GASKET-FLUE
9	COVER PLATE
10	GEN WB63X0293
11	PANEL-SIDE-LH-ALMOND
11	PANEL-SIDE-RH-WHITE
11	PANEL-SIDE-RH-ALMOND
11	PANEL-SIDE-LH-WHITE
12	LEVELING LEG
13	GEN WB48X0190
14	SCREW-OVEN BOTTOM
14	GEN WB53X0272
15	CLIP-THERMOSTAT BULB
16	GEN WB38X0097
17	GEN WB63X0288
18	FASTENER-HINGE
101	GEN WB04X0117
102	GEN WB61X0315
102	GEN WB61X0327
103	GEN WB61X0313
103	GEN WB61X0328
104	FASTENER-TWIST NUT
104	GEN WB04X0118
105	GEN WB61X0314
105	GEN WB61X0330
620	GEN WB02X4236
32767	GEN 31-0627
32767	GEN 49-4946
