JGSS05GEJ2 MAIN BODY

JGSS05GEJ2 MAIN BODY

Written by

in

JGSS05GEJ2 MAIN BODY

Products

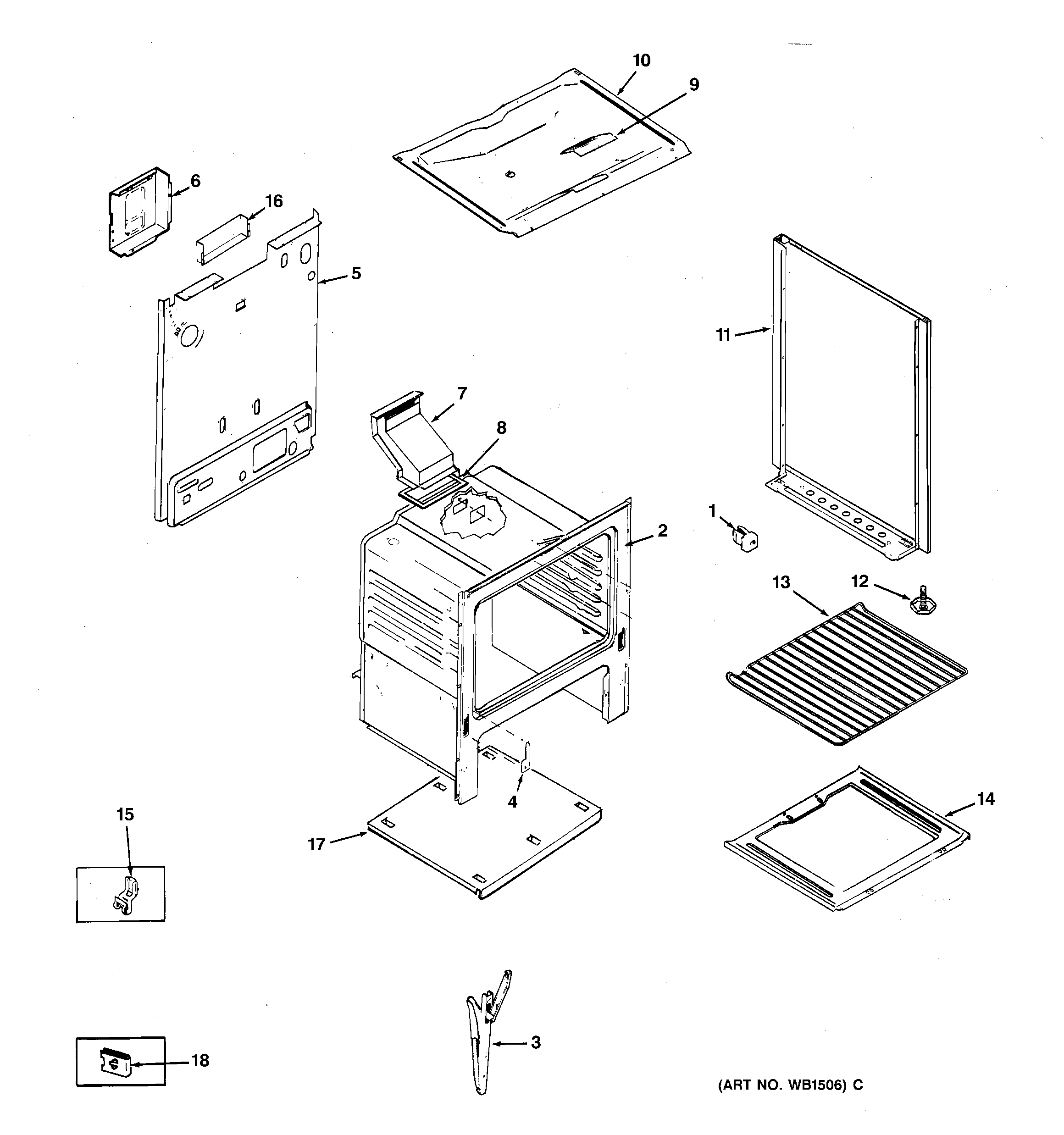

Position	Product
1	GEN WB01X0931
2	GEN WB02X4968
2	INSULATION-OVEN WRAP
2	FASTENER-POWER CORD
2	GEN WB02X4970
2	PLUG-FRONT FRAME
2	OVEN ASSEMBLY
2	GEN WB18X0255
3	SPRING-OVEN DOOR HINGE
3	HINGE-W/SPRING
4	COVER-HINGE CUT OUT
5	BACK MAIN
6	GEN WB63X0286
7	FLUE
8	GASKET-FLUE
9	COVER PLATE
10	GEN WB63X0293
11	GEN WB63X0290
11	GEN WB63X0291
12	LEVELING LEG
13	GEN WB48X0190
14	GEN WB53X0272
14	SCREW-OVEN BOTTOM
15	CLIP-THERMOSTAT BULB
16	GEN WB38X0097
17	GEN WB63X0288
18	FASTENER-HINGE
32767	GEN 31-0627
32767	GEN 49-4946
