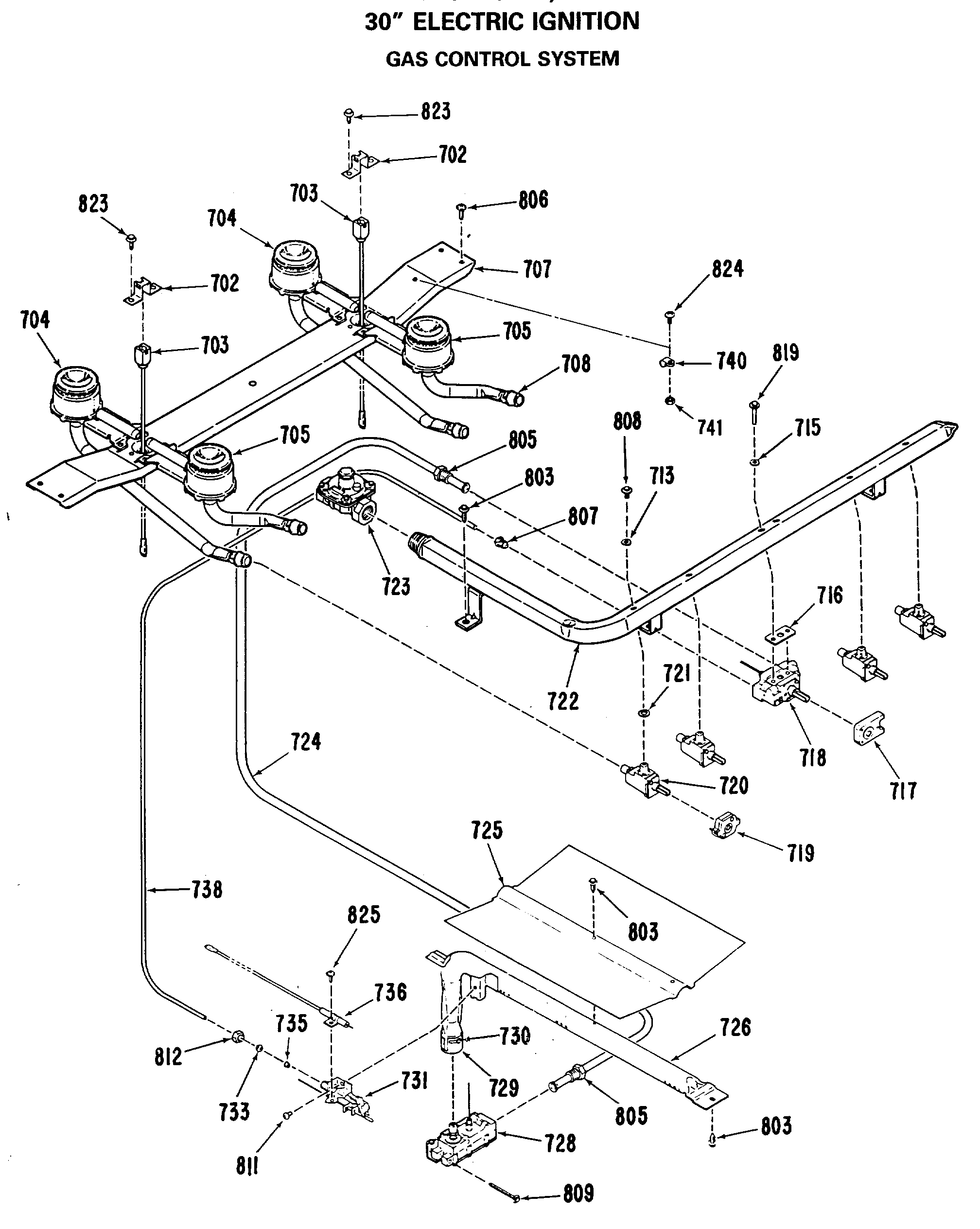

JGSS05GEK1 30″ ELECTRIC IGNITION

JGSS05GEK1 30″ ELECTRIC IGNITION

Written by

in

JGSS05GEK1 30″ ELECTRIC IGNITION

Products

PositionProduct
702IGNITER BRACKET
703GEN WB02X9004
703SPARK IGN ELECTRODE RT
704TOP BURNER-REAR
705TOP BURNER-FRONT
707GEN WB02X9006
708GEN WB02X9007
713VALVE SCREW GASKET
715THERMOSTAT SCREW GASKET
716THERMOSTAT GASKET
717THERMOSTAT SWITCH
718OVEN THERMOSTAT
719VALVE SWITCH
720VALVE-TOP BURNER
721VALVE GASKET
722MANIFOLD PIPE ASM
723GEN WB21X0465
724GEN WB02X9013
725OV BURN BAFFLE
726GEN WB28X0083
728GEN WB21X0468
729AIR SHUTTER-OVEN
731PILOT W/CUP
7333/16 TUBING SLEEVE
735GEN WB02X9017
736OVEN SPARK IGN ELECTRODE
7383/16 TUBE
803WB1M1 GE Oven Screw
805NUT
806WB1X1118 GE Oven Screw 6-32T
807HEX NUT
808GEN WB01X1121
809GEN WB01X1123
811GEN WB01X1125
812TUBING NUT 3/16
819GEN WB01X1151
824GEN WB01X1128
825WB1X681 GE Oven Screw
