JGSS05GPK1 BACKSPLASH/OVEN DOOR

JGSS05GPK1 BACKSPLASH/OVEN DOOR

Written by

in

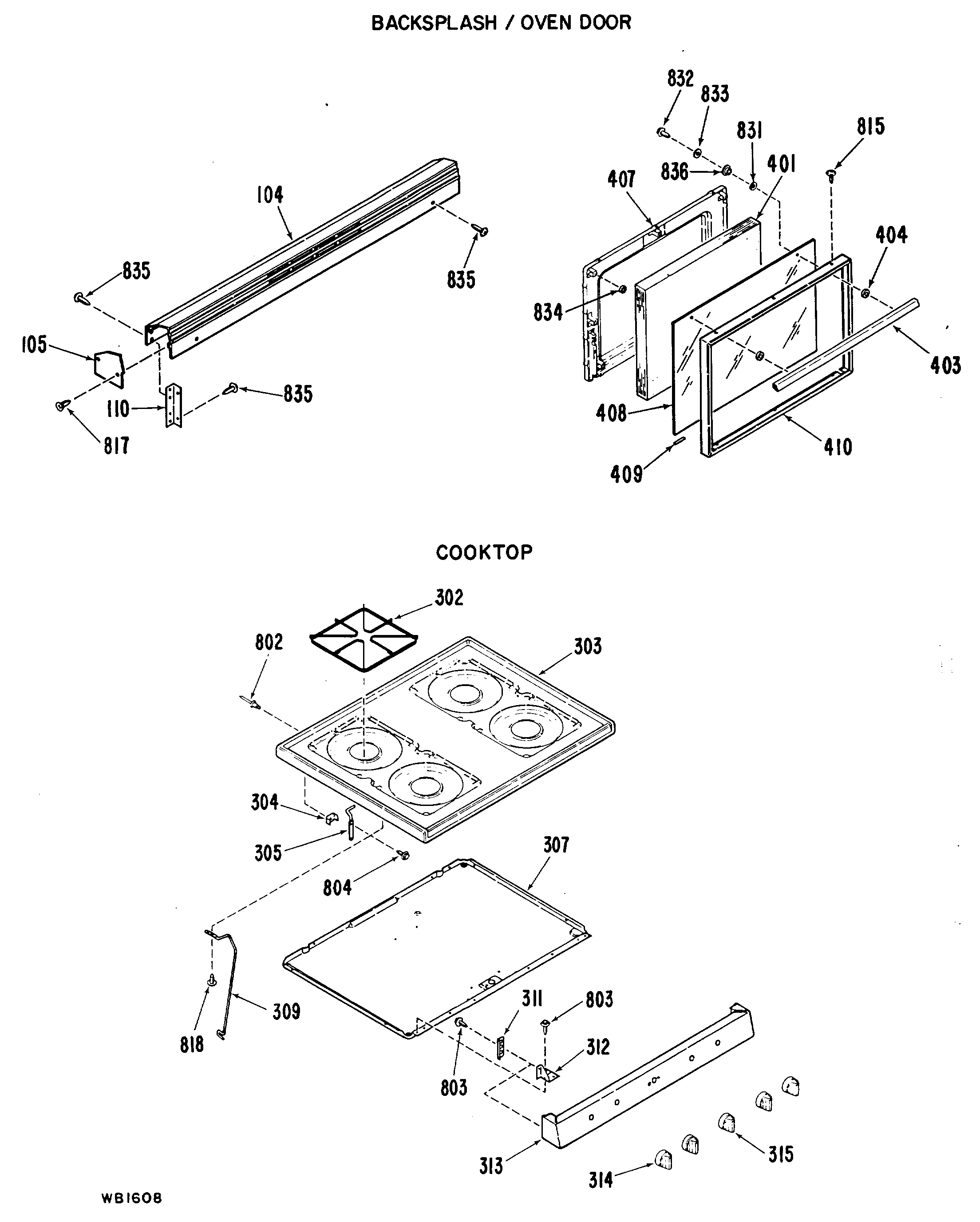

JGSS05GPK1 BACKSPLASH/OVEN DOOR

Products

PositionProduct
104GEN WB61X0358
105GEN WB02X9107
110GEN WB02X9108
302GRATE
303GEN WB62X1677
304MAINTOP HINGE BRACKET
305MAINTOP HINGE-RT
305MAINTOP HINGE-LT
307GEN WB63X0323
309SUPPORT ROD
311GEN WB02X9000
312MANIF PANEL BRACKET-LT
312MANIF PANEL BRACKET-RT
313MANIFOLD PANEL
314GAS VALVE KNOB
315THERMOSTAT KNOB
401UNKNOWN
403OV DOOR HANDLE
403GEN WB15X0270
407GEN WB56X1885
408OV DOOR OUTER GLASS
409GEN WB02X9036
410OUTER FRAME-OVEN DOOR
802POP RIVET
803WB1M1 GE Oven Screw
804WB1X1116 GE Oven Screw
810AIR SHUTTER SCREW-OVEN
815WB1K5191 GE Oven Zinc FL Screw
817WB1X1149 GE Oven Screw
818GEN WB01X1150
830GEN WB01X1155
831FIBER WASHER
832GEN WB01X1139
833GEN WB01X1140
834FELT WASHER
836UNKNOWN
9999GEN 49-4897
