JGSS61SP1SS GAS & BURNER PARTS

JGSS61SP1SS GAS & BURNER PARTS

Written by

in

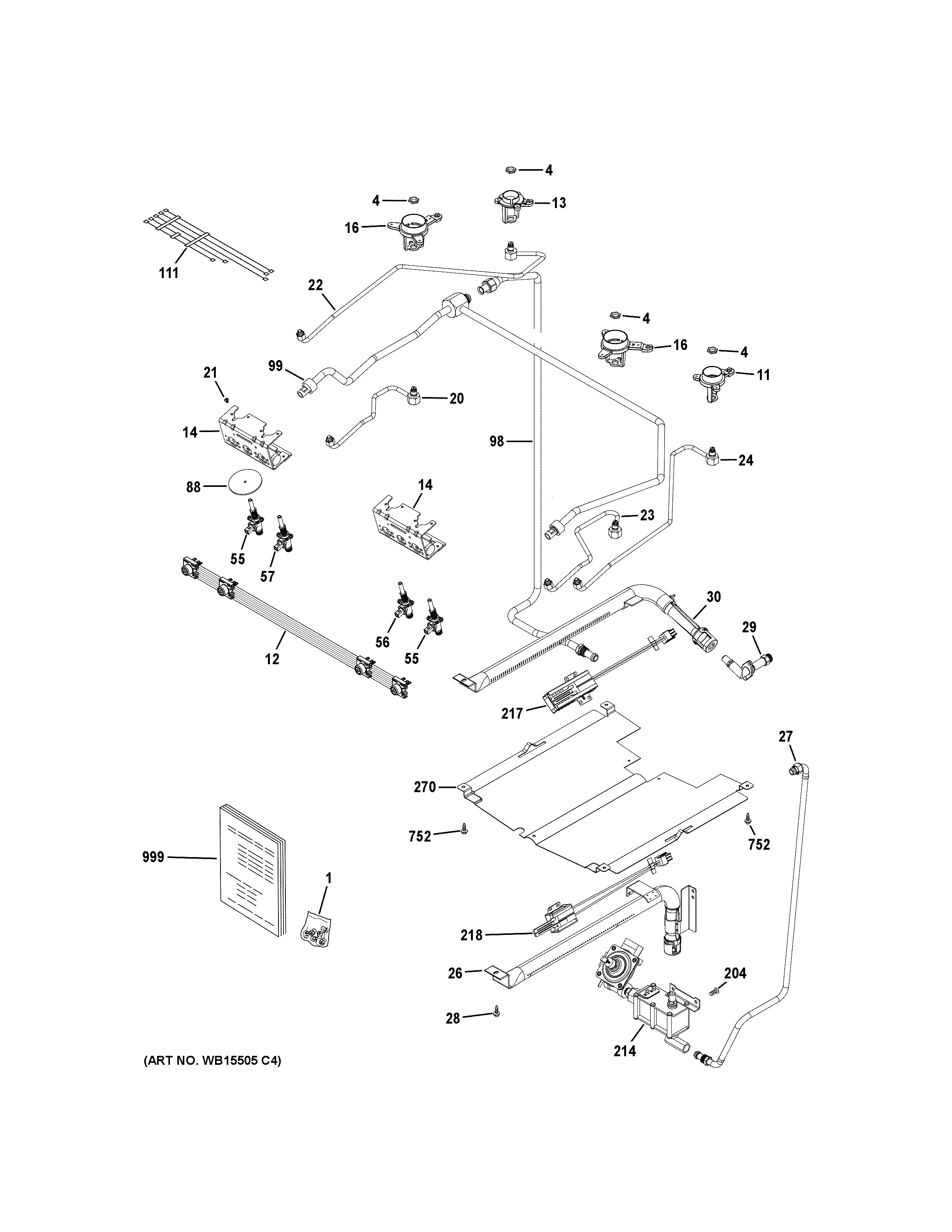

JGSS61SP1SS GAS & BURNER PARTS

Products

PositionProduct
1LP CONVERSION KIT
1WB28X29255 GE Range LP High Altitude Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
4WB01K10037 GE Oven Economic Nut
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12HARNESS SWITCHES
13WB02X24728 GE Range Small Injector
14WB28X43248 GE Manifold Pipe Assembly
16WB02X24725 GE Oven Inlet XLV2
20WB28X28865 GE Oven Left Orifice Holder
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X28142 GE Oven Left Rear Orifice Holder
23WB28X28144 GE Oven Right Front Orifice Holder
24WB28X28147 GE Oven Right Rear Orifice Holder
26WB16X28250 GE Oven Bake Burner
27WB28X24773 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28X28697 GE Oven 90-Degree Elbow Assembly
30WB16X28251 GE Range Broil Burner
55VALVE BURNER 270
56VALVE BURNER 270
57WB21X25979 GE Oven Burner Valve 270
88WB35X21708 GE Valve Seal
98WB28X28151 GE Range Burner Supply Tube Box
99WB28X28158 GE Manifold Supply Tube
111WB18X42813 GE Electrode Harness High Voltage
204WB1K5062 GE Oven Screw
214VALVE CONTROL ASM
217IGNITER GLOWBAR
218IGNITER GLOWBAR
270WB34X28689 GE Deflector
752WZ4X345D GE Screw Package 12 C92
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
999PM MINI MANUAL AND WIRING
