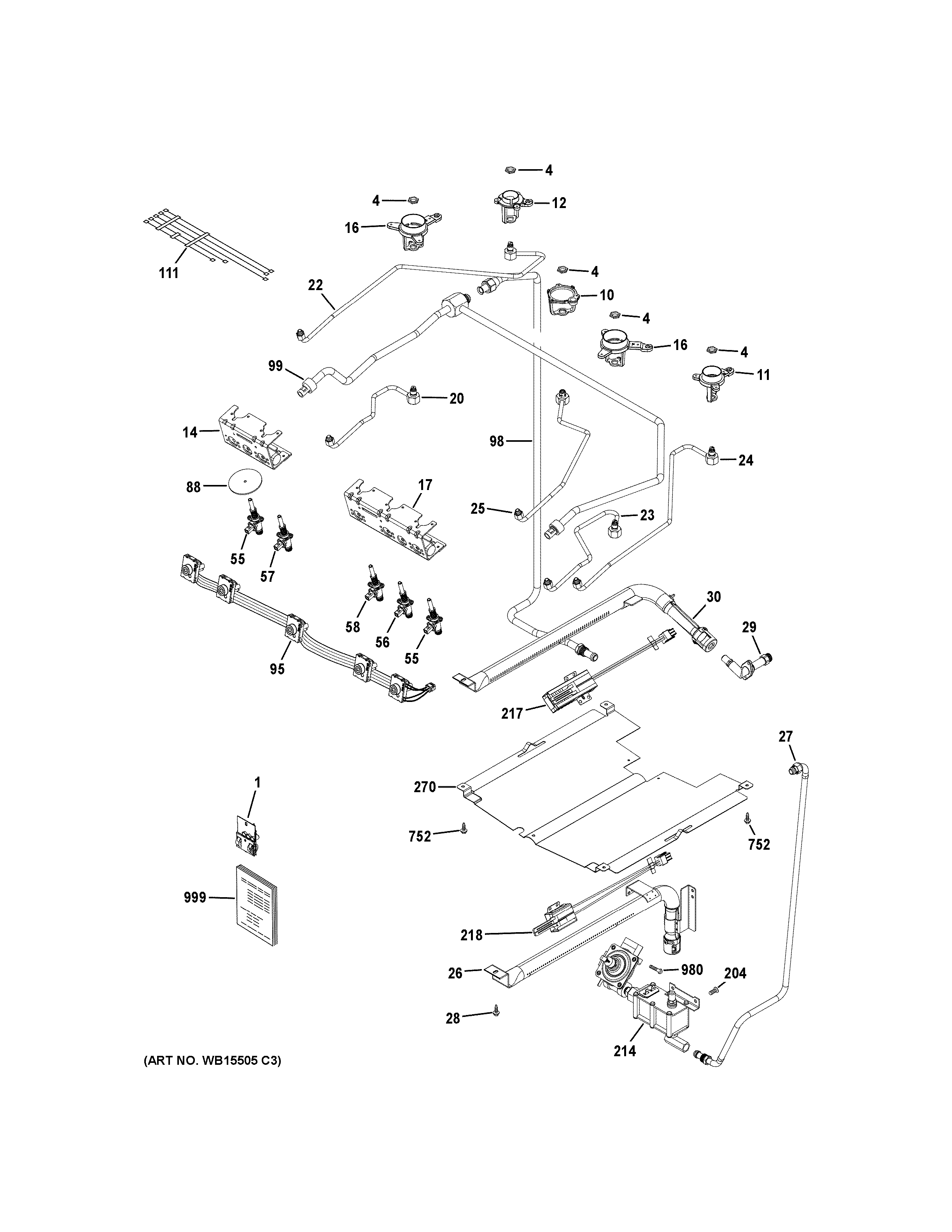

JGSS66EEL1ES GAS & BURNER PARTS

Products

Position	Product
1	WB28X29255 GE Range LP High Altitude Kit
1	LABEL WIRE DIAGRAM
1	WB28X39149 GE Conversion Kit
1	WB28X29254 GE Range Natural Gas High Altitude Kit
4	WB01K10037 GE Oven Economic Nut
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02X24727 GE Oven Right Front Burner Jet with Electrode
12	WB02X24728 GE Range Small Injector
14	WB28X28204 GE Manifold Pipe Assembly
16	WB02X24725 GE Oven Inlet XLV2
17	WB28X43250 GE Pipe Manifold Assembly
20	WB28X28865 GE Oven Left Orifice Holder
22	WB28X28142 GE Oven Left Rear Orifice Holder
23	WB28X28144 GE Oven Right Front Orifice Holder
24	WB28X28147 GE Oven Right Rear Orifice Holder
25	WB16X28686 GE Oven Center Orifice Holder
26	WB16X28250 GE Oven Bake Burner
27	WB28X24773 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	WB28X28697 GE Oven 90-Degree Elbow Assembly
30	WB16X28251 GE Range Broil Burner
55	VALVE BURNER 270
56	VALVE BURNER 270
57	WB21X25979 GE Oven Burner Valve 270
58	WB21X20471 GE Oven Burner Valve
88	WB35X21708 GE Valve Seal
95	WB18X28762 GE Oven Switch Harness
98	WB28X28151 GE Range Burner Supply Tube Box
99	WB28X28158 GE Manifold Supply Tube
111	WB18X28729 GE Oven Wire Harness
204	WB1K5062 GE Oven Screw
214	VALVE CONTROL ASM
217	WB13X24755 GE Broil Igniter Glow Bar
218	IGNITER GLOWBAR
270	WB34X28689 GE Deflector
752	WZ4X345D GE Screw Package 12 C92
980	SCREW
999	PM INSTALL INSTRUCTIONS
999	PM GAS QUICK GUIDE
999	PM INSTALL INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
