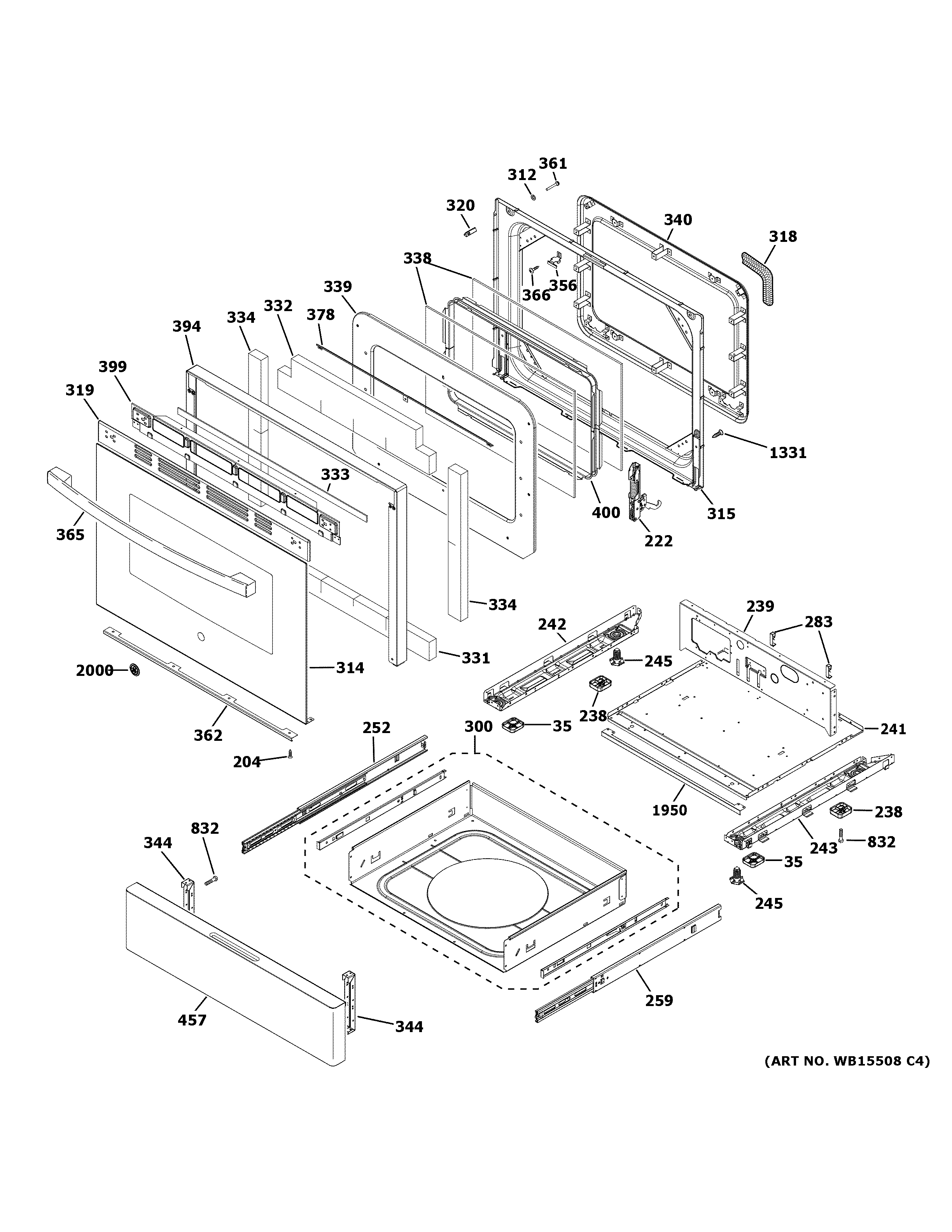

JGSS66FEL2DS DOOR & DRAWER PARTS

JGSS66FEL2DS DOOR & DRAWER PARTS

Written by

in

JGSS66FEL2DS DOOR & DRAWER PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
204WB1K5062 GE Oven Screw
222HINGE DOOR
238WB16X20449 GE Oven Base Spacer
239WB63K10203 GE Oven Rear Broil Panel
241GEN WB63K10041
242WB63X20216 GE Oven Support Base
243WB63X20215 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
252WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
283WB02X21679 GE Oven Wire Clip
300WB49X28972 GE Oven Drawer Body Assembly Kit
312WB1X119D GE Oven Range Washer
314WB56X30818 GE Oven Glass Door Assembly
315WB56X30421 GE Oven Door Liner Weld
318WB35X29668 GE Oven Door Gasket Assembly
319VENT TRIM
320WB02K10156 GE Oven Spacer
331WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
333WB35X21579 GE Front Door Insulation
334WB35X28971 GE Washer Side Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55X30422 GE Panel Weld
344WB02X24742 GE Oven Drawer Bracket
356GEN WB02K0056
361SCR 10-16 X 2 3/4
362WB07X28885 GE Range Barrier Door
365WB15X35077 GE Black Stainless Steel Handle
366WB1X536 GE Oven Screw
378DEFLECTOR INNER DOOR
394WB07X29147 GE Oven Door Trim DD
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X30202 GE Oven Drawer Panel
832WR01X10065 GE Screw
1331WB01T10008 GE Oven Screw 10-32
1950WB01K10072 GE Oven Front Bottom Trim
2000WB02X29637 GE Oven Badge Assembly
