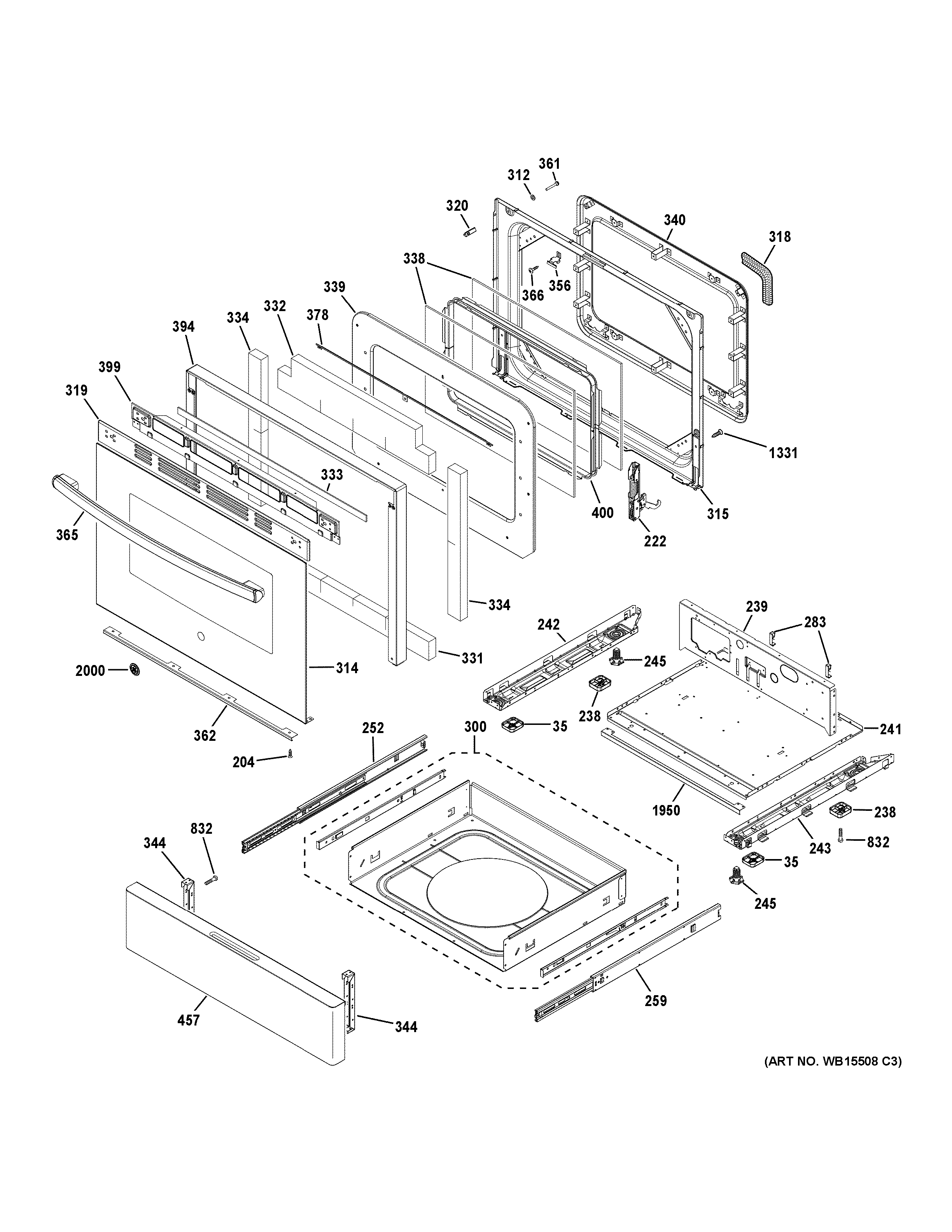

JGSS66SEL1SS DOOR & DRAWER PARTS

Written by

Products

Position	Product
35	WB16X20448 GE Oven Spacer Base
204	WB1K5062 GE Oven Screw
222	HINGE DOOR
238	WB16X20449 GE Oven Base Spacer
239	WB63K10203 GE Oven Rear Broil Panel
241	GEN WB63K10041
242	WB63X20216 GE Oven Support Base
243	WB63X20215 GE Oven Support Base
245	WB02K10182 GE Oven Leveling Leg
252	WB39K10021 GE Oven Left Drawer Slide Assembly
259	WB39K10020 GE Oven Right Drawer Slide Assembly
283	WB02X21679 GE Oven Wire Clip
300	WB49X28972 GE Oven Drawer Body Assembly Kit
312	WB1X119D GE Oven Range Washer
314	WB56X30064 GE Oven Glass Door Assembly
315	WB56X30421 GE Oven Door Liner Weld
318	WB35X29668 GE Oven Door Gasket Assembly
319	WB07X28816 GE Vent Trim
320	WB02K10156 GE Oven Spacer
331	WB35K10150 GE Bottom Door Oven Insulation
332	WB35K10149 GE Oven Side Door Insulation
333	WB35X21579 GE Front Door Insulation
334	WB35X28971 GE Washer Side Door Insulation
338	WB56X23809 GE Oven Range Door Crystal Window
339	WB56K12 GE Oven Insulation Guard
340	WB55X30422 GE Panel Weld
344	WB02X24742 GE Oven Drawer Bracket
356	GEN WB02K0056
361	SCR 10-16 X 2 3/4
362	WB07X28885 GE Range Barrier Door
365	HANDLE AND END CAP ASM
366	WB1X536 GE Oven Screw
378	DEFLECTOR INNER DOOR
394	WB07X29147 GE Oven Door Trim DD
399	WB56X20809 GE Oven Backer Panel
400	WB34K10087 GE Oven Window Spacer Assembly
457	WB56X24829 GE Oven Drawer Panel
832	WR01X10065 GE Screw
1331	WB01T10008 GE Oven Screw 10-32
1950	WB01K10072 GE Oven Front Bottom Trim
2000	WB02X29479 GE Oven Badge Assembly
