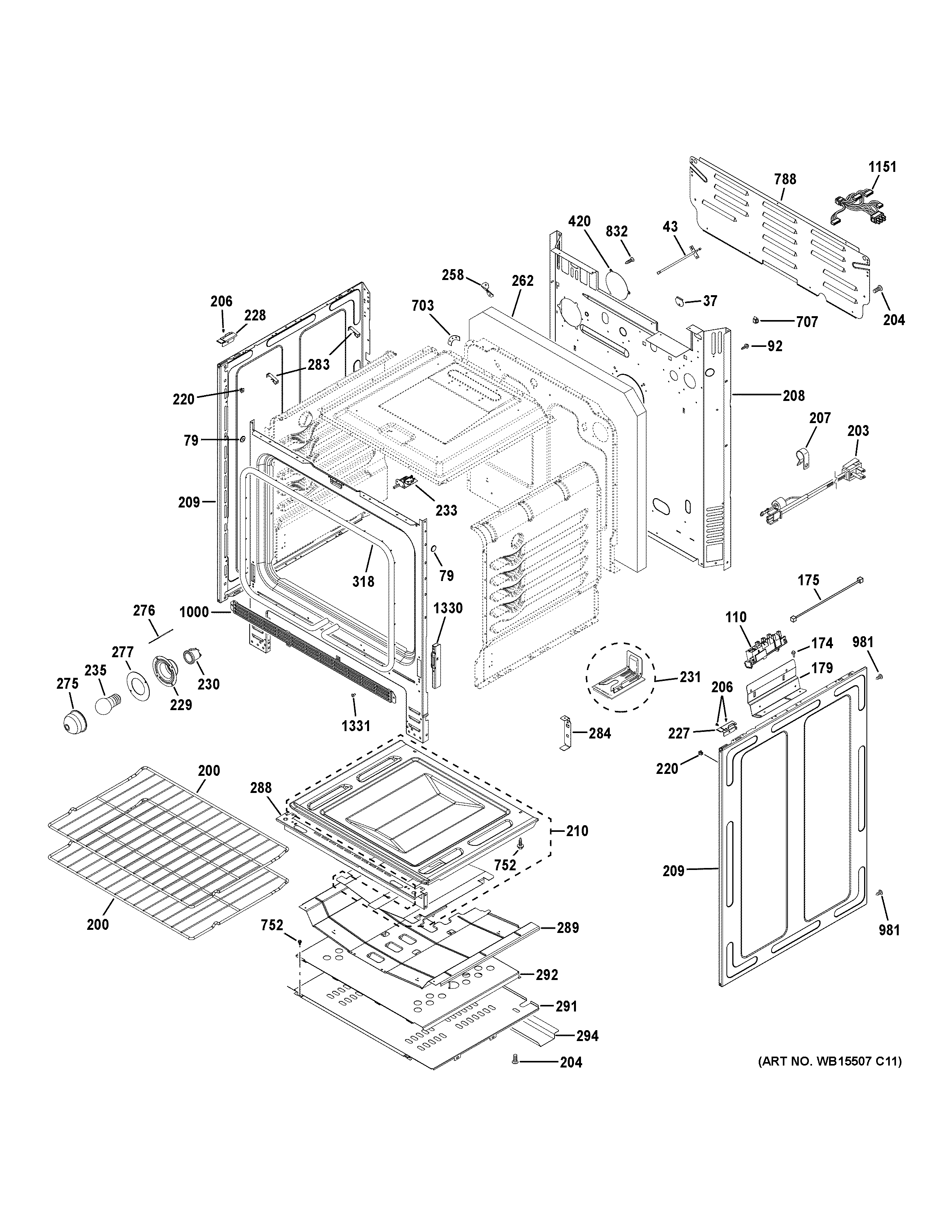

JGSS66SEL3SS BODY PARTS

JGSS66SEL3SS BODY PARTS

Written by

in

JGSS66SEL3SS BODY PARTS

Products

PositionProduct
37WB34X24753 GE Igniter Cover
43WB24X25557 GE Oven Sensor Assembly
79SPACER SIDE
92WB1X1261 GE Oven Screw
110WB13X24741 GE Oven Spark Module
174WB01X31119 GE Screw 8-18
175WB18X27594 GE Ground Harness
179WB34X36828 GE Spark Module Bracket
200OVEN RACK
203WB18X28854 GE Oven Line Cord
204WB1K5062 GE Oven Screw
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
207WB2K36 GE Oven Clamp Cable
208RANGE BACK
209WB56X28847 GE Oven Side Panel
210WB35X37970 GE Bottom Oven and Deflector Assembly
220GEN WB02K0008
227FRONT SUPPORT RH
228FRONT SUPPORT LH
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X28840 GE Oven Dual Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
258WB38K2 GE Range Vent Brace
262WB35X20370 GE Range Oven Back Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
294GEN WB63K10040
318WB35X29668 GE Oven Door Gasket Assembly
420GEN WB34K0016
703BRACKET OVEN
707WB02K10267 GE Wire Clip
752WZ4X345D GE Screw Package 12 C92
788WB34X21575 GE Oven Back Cover
832WR01X10065 GE Screw
981WB01K10091 GE Oven Screw
1000WB34X24779 GE Front Frame Trim
1151HARNESS MAIN
1330WB10X20220 GE Oven Receiver Hinge
1331WB01T10008 GE Oven Screw 10-32
