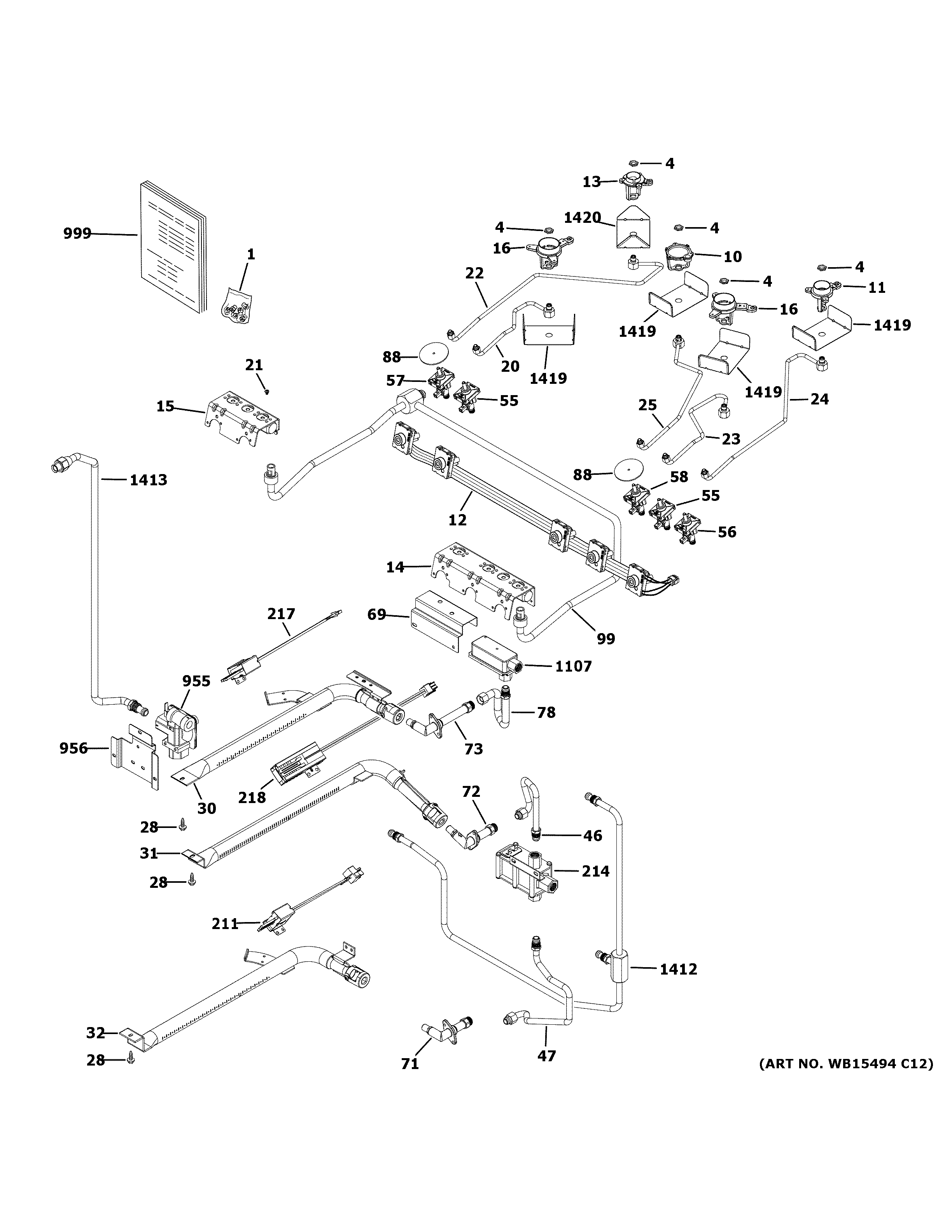

JGSS86SP1SS GAS & BURNER PARTS

JGSS86SP1SS GAS & BURNER PARTS

Written by

in

JGSS86SP1SS GAS & BURNER PARTS

Products

PositionProduct
1WB28X37607 GE LP Conversion Kit Assembly
1WB28X29255 GE Range LP High Altitude Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
4WB01K10037 GE Oven Economic Nut
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X46772 GE Harness Switch Assembly
13WB02X24728 GE Range Small Injector
14WB28X43250 GE Pipe Manifold Assembly
15WB28X28204 GE Manifold Pipe Assembly
16WB02X24725 GE Oven Inlet XLV2
20WB28X28866 GE Oven Left Orifice Holder
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X28142 GE Oven Left Rear Orifice Holder
23WB28X28144 GE Oven Right Front Orifice Holder
24WB28X28147 GE Oven Right Rear Orifice Holder
25WB16X28686 GE Oven Center Orifice Holder
28WB1X1293 GE Oven Screw
30WB16X28249 GE Gas Range Bake Burner
31WB16X28251 GE Range Broil Burner
32WB16X28670 GE Gas Range Bake Burner
46WB28X28164 GE Tube Safety Valve
47WB28X28152 GE Oven Lower Bake Supply Tube
55VALVE BURNER 270
56WB21X20471 GE Oven Burner Valve
57WB21X25979 GE Oven Burner Valve 270
58VALVE BURNER 270
69WB02K10325 GE Valve Support Single
71WB28X20451 GE Oven 90-Degree Elbow Assembly
72WB28X28696 GE Elbow 90 Assembly
73WB28X28695 GE Oven 90-Degree Elbow Assembly
78WB28X28163 GE Upper Bake Supply Tube
88WB35X21708 GE Valve Seal
99WB28X28158 GE Manifold Supply Tube
211WB13X25633 GE Oven Igniter Glowbar
214SAFETY VALVE DUAL
217WB28X28781 GE Oven Igniter Glow Bar
218WB28X28780 GE Oven Glowbar Igniter
955WB19K10077 GE Oven Pressure Regulator
956SUPPORT REGULATOR
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM PROPANE HA INSTRUCTIONS
999PM NG HA INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
1107WB21X28836 GE Safety Valve Assembly Single
1412WB28X28159 GE Oven Supply Tube
1413WB28X28150 GE Oven Burner Tube Supply Box
1419WB02X28653 GE Air Deviator
1420WB02X28652 GE Air Deviator
