JGW8130DDB 01 – BODY

JGW8130DDB 01 – BODY

Written by

in

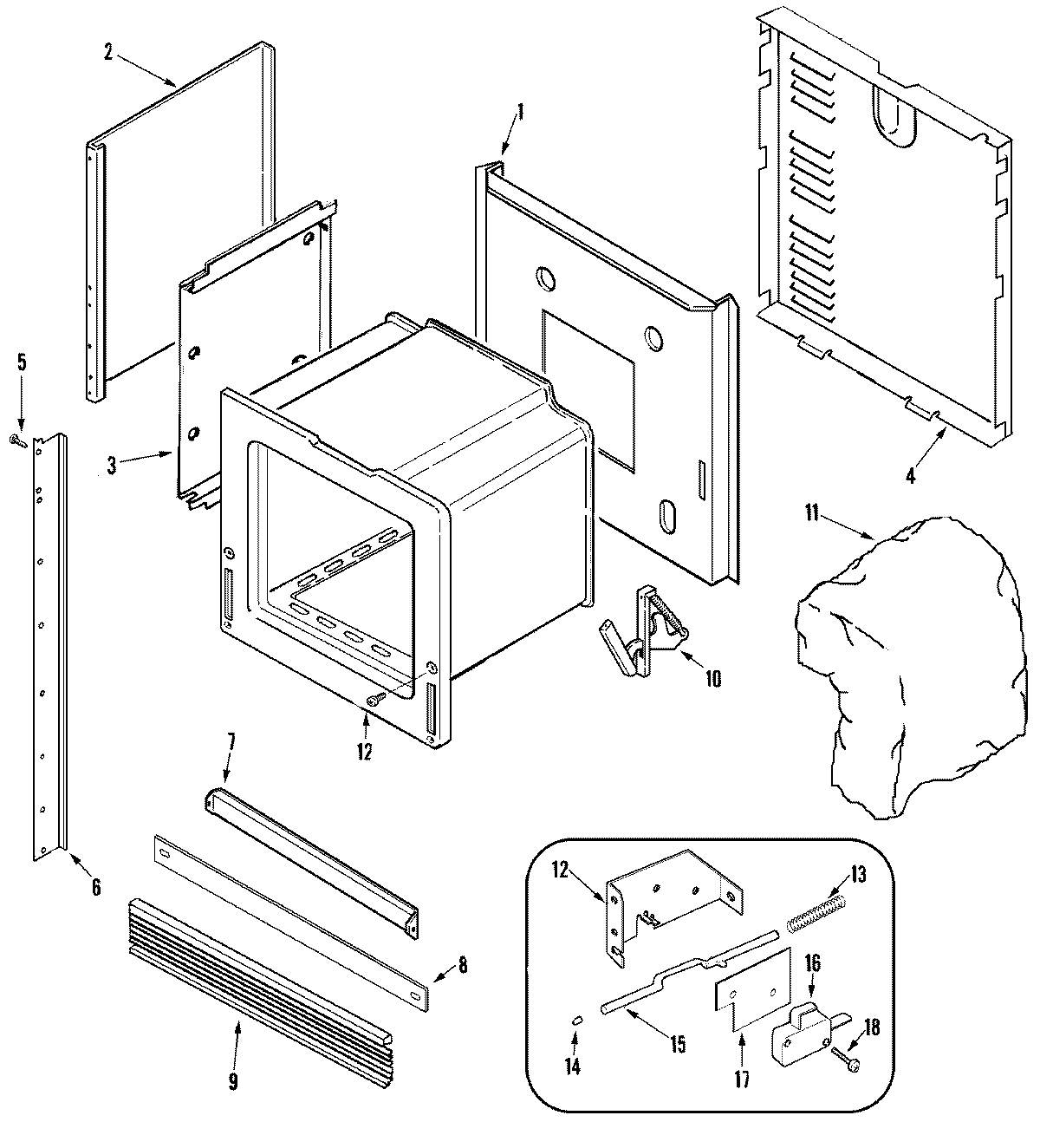

JGW8130DDB 01 – BODY

Products

PositionProduct
1MAY 74009486
2MAY 2618F083-51
3MAY 74001436
4MAY 4005F405-51
5WP98008545 Whirlpool Screw
6MAY 74009489
6MAY 74009490
7BAFFLE, OVEN FRONT
8MAY 4005F354-70
8SCREW (8ABX1/2“-BLK)
9MAY 74004131
10HINGE-OVEN DOOR
11WP74010942 Whirlpool Insulation
11MAY 74009481
11MAY 74009484
12BRACKET, SWITCH ACTUATOR
14MAY 74007586
15ROD, DOOR LIGHT SWITCH
16WP74008263 Whirlpool Door Switch
17MAY 74008264
18MAY 7101P330-60
