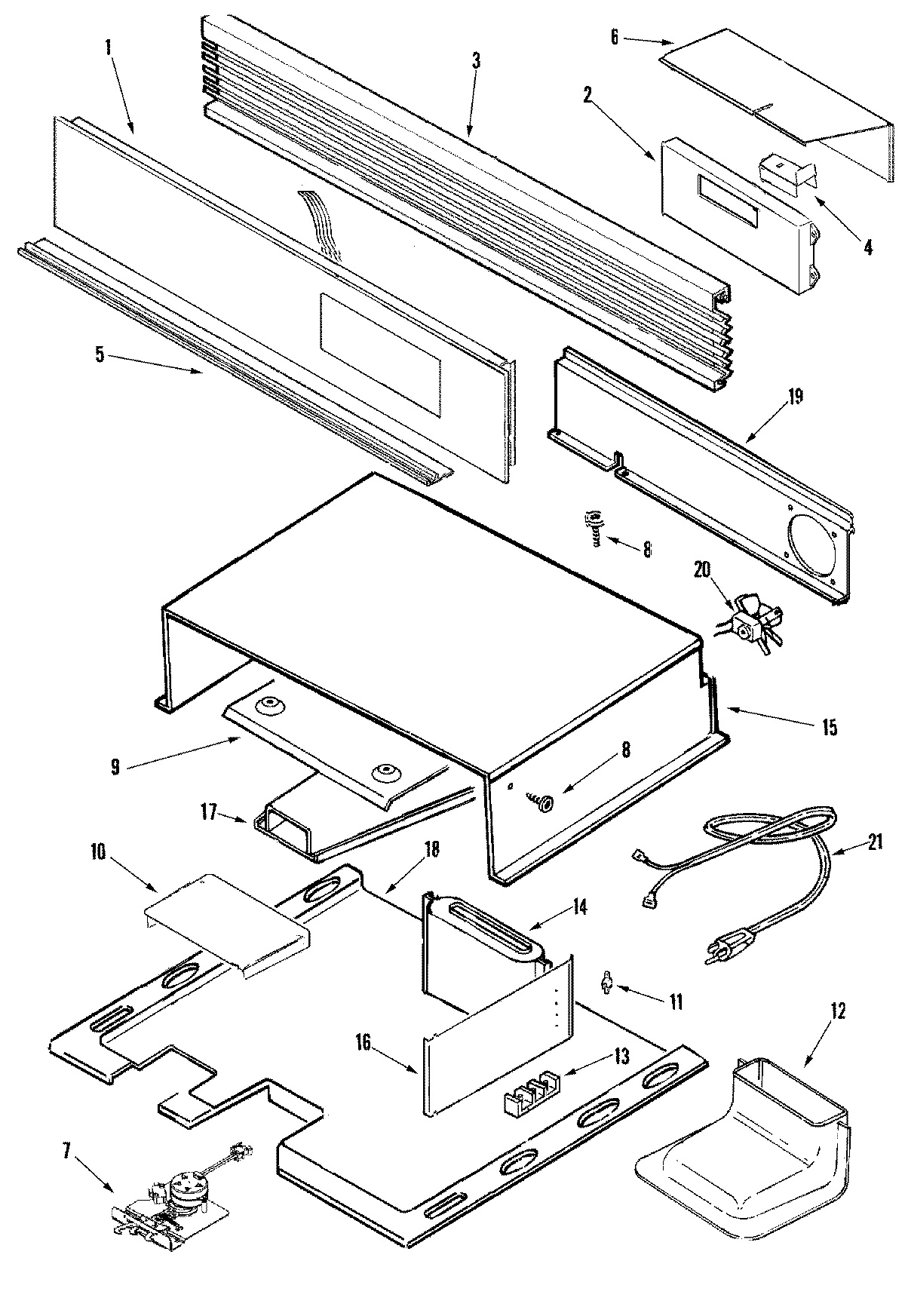

JGW8130DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

JGW8130DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Written by

in

JGW8130DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1WP5766M099-60 Whirlpool Control Panel
2MAY 74009494
2MAY 74009559
3MAY 74004131
4MAY 74009473
5MAY 74009488
6MAY 74009496
7WPW10186996 Whirlpool Door Latch
9MAY 3604F166-45
10MAY 74009474
11WP59002061 Whirlpool Microwave Screw
11MAY 74009476
12MAY 4006W117-45
13WP7103P027-60 Whirlpool Nut
13MAY 7401P037-60
14MAY 4006D128-45
15MAY 74009498
16MAY 74009497
17MAY 4006D101-45
17MAY 74004128
18MAY 74009485
18MAY 7101P356-60
19SCREW (8BX3/8-NI)
19MAY 4001F083-51
20SCREW
20MAY 74004450
21MAY 7402P043-60
