JGW8130DDB 03 – DOOR

JGW8130DDB 03 – DOOR

Written by

in

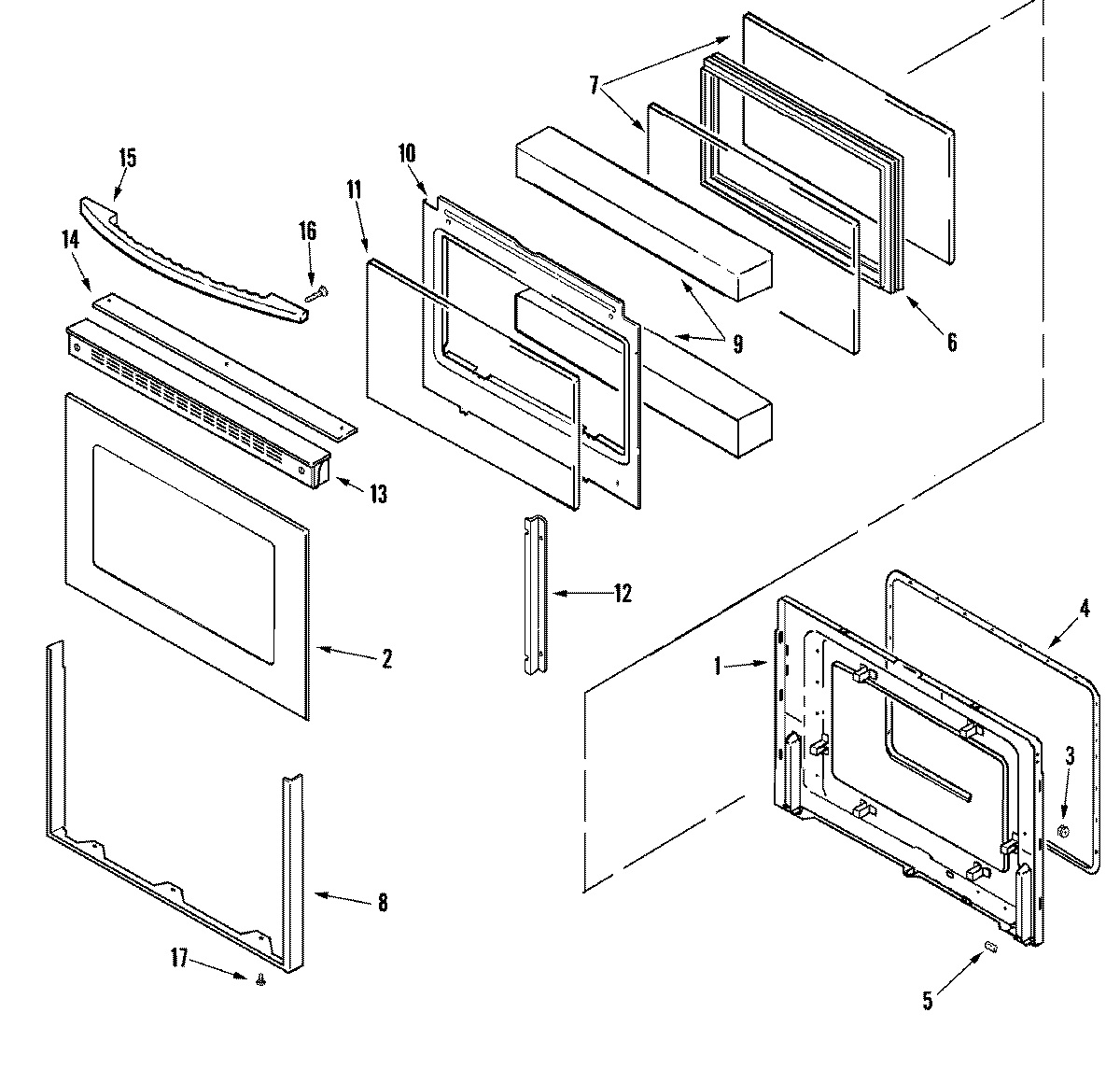

JGW8130DDB 03 – DOOR

Products

PositionProduct
1LINING, DOOR
1MAY 74003642
2Kit, Door Glass (Black)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6SCREW, 8 X 1/2
63801F886-51 Whirlpool Mounting Bracket
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP3608F117-70 Whirlpool Door Trim
8WP3608F116-70 Whirlpool Door Trim
9INSULATION, OVEN DOOR
10MAY 74009502
103601F373-51 Whirlpool Baffle
11GLASS, DOOR
12MAY 74003650
13WP90767 Whirlpool Screw
13WP74003652 Whirlpool Door Trim
13W10828565 Whirlpool Screw
15MAY 71003204
16WP179051 Whirlpool Screw
17SUPPORT, GLASS (BLK)
18SCREW
