JGW8130DDB 05 – OVEN/BASE – Aparts

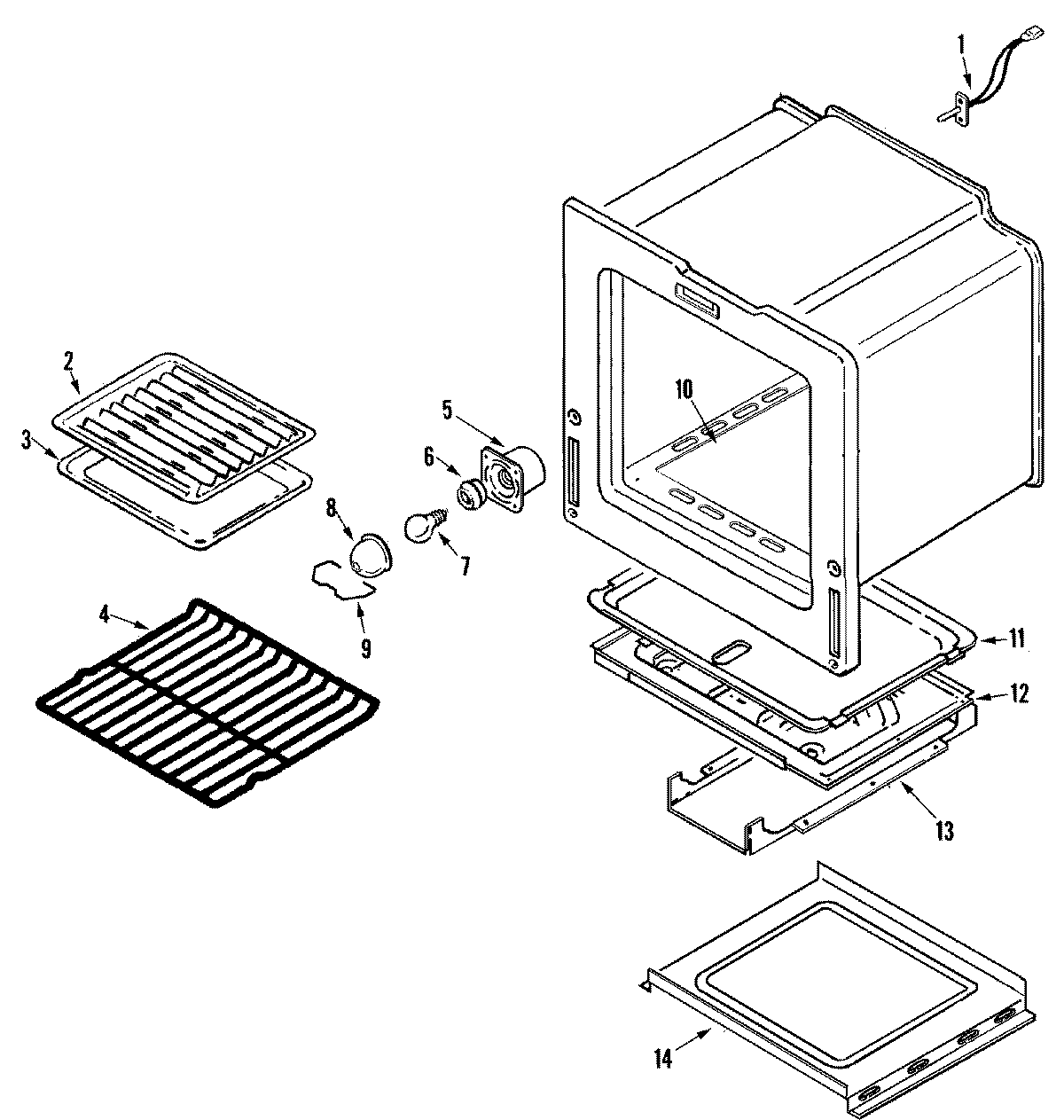

JGW8130DDB 05 – OVEN/BASE

Products

Position	Product
1	12001655 Whirlpool Oven Sensor
2	MAY Y3413F01619
3	MAY Y3401F02019
4	WPW10282492 Whirlpool Oven Rack
5	MAY 74003388
6	MAY 74003387
6	SCREW
7	RANGE ONLY 40W 120V APPL BULB
8	MAY 74003389
9	MAY 74003391
10	MAY 74011347
10	MAY 71001394
10	MAY 74002376
10	MAY 74002377
10	MAY 74002393
11	MAY 74001651
11	MAY 74009477
12	RETAINER, BOTTOM INSULATION
12	MAY 74009479
13	MAY 3807F429-51
14	MAY 74001742
