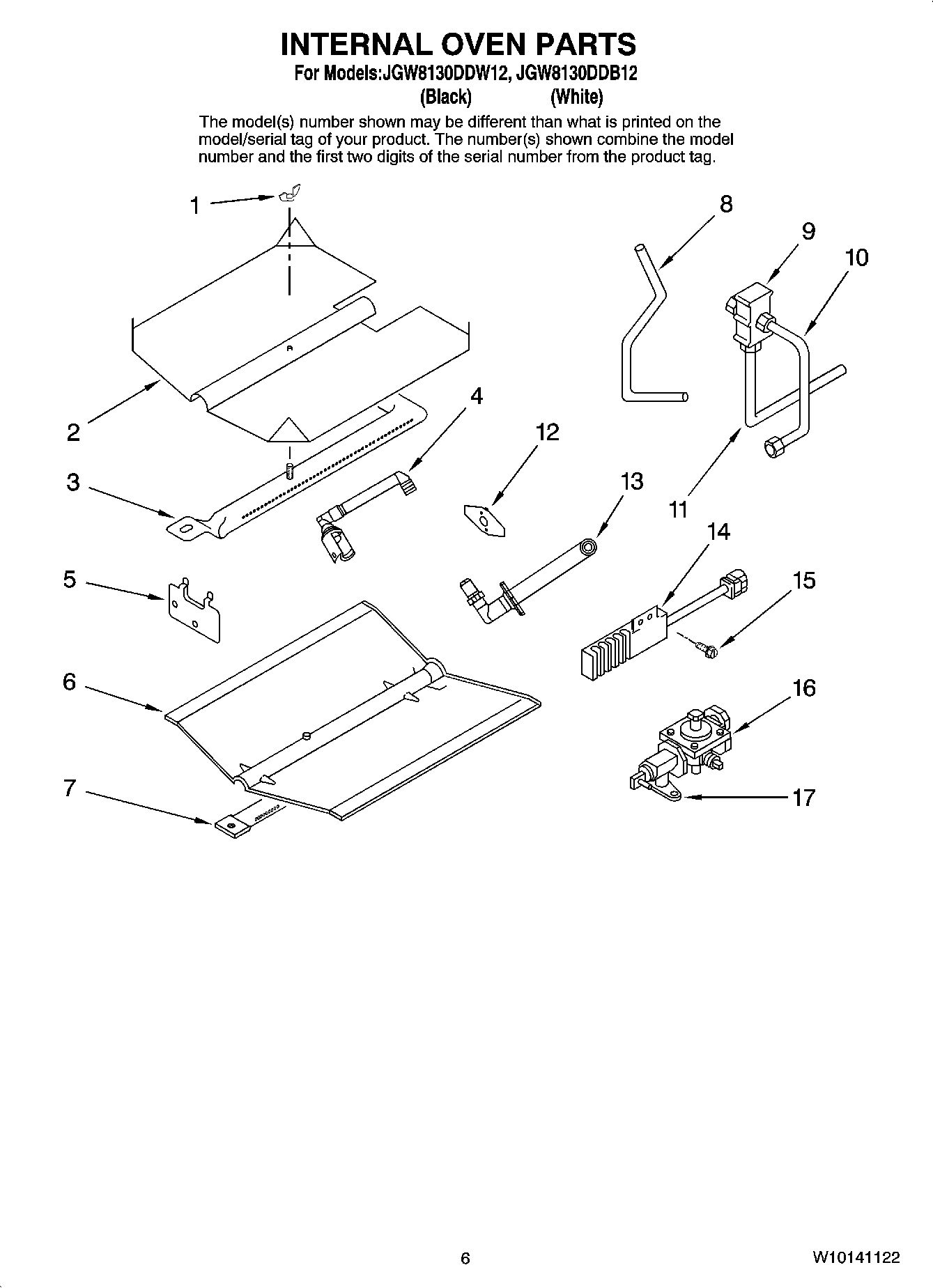

JGW8130DDB12 04 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	NUT, WING
2	MAY 74009231
3	MAY 74004076
4	MAY 74009468
5	MAY 4005F421-45
6	BAFFLE, OVEN BOTTOM
7	MAY 74009483
8	MAY 74006348
9	WP74006345 Whirlpool Oven Valve
10	MAY 74009506
11	MAY 74009505
12	MAY 74004307
13	MAY 74009475
14	74007498 Whirlpool Range Flat Igniter
15	WP3351614 Whirlpool Screw
16	MAY 71003638
17	MAY 7501P041-60
