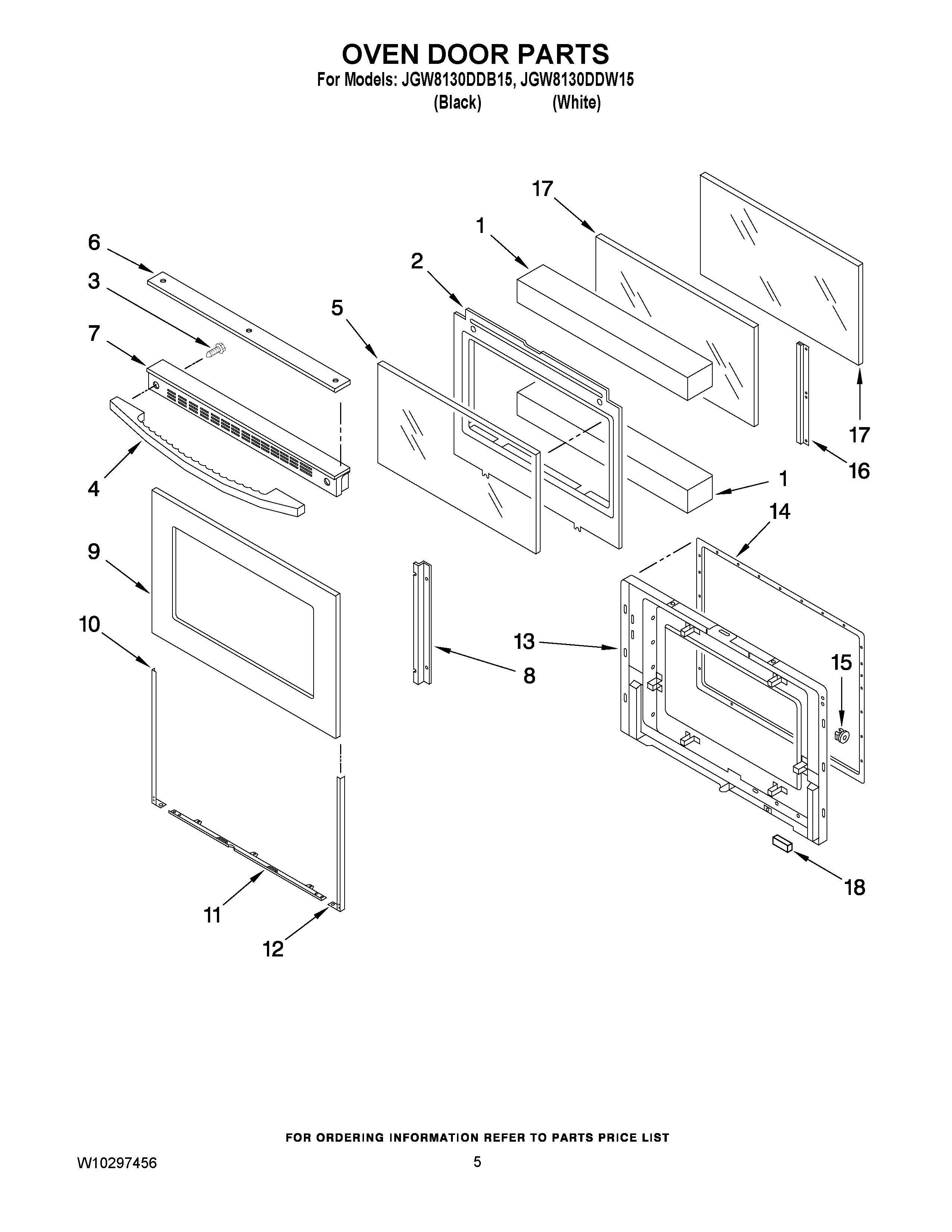

JGW8130DDB15 04 – OVEN DOOR PARTS
Written by
in
JGW8130DDB15 04 – OVEN DOOR PARTS
Products
Position
Product
1
MAY 7002P246-60
2
MAY 3601F373-51
3
MAY 7101P381-60
4
MAY 7701P200-60
4
MAY 7701P243-60
5
Glass, Door
6
MAY 7728P094-60
7
MAY 7706P601-60
7
MAY 7706P602-60
8
RETAINER, DR GLASS
9
Kit, Door Glass (Black)
9
MAY Y12002301
10
MAY 3608F117-70
10
MAY 3608F117-71
11
MAY 3807F708-70
11
MAY 3807F708-71
12
MAY 3608F116-70
12
MAY 3608F116-71
13
MAY 2402W312-19
14
MAY W10162384
15
MAY 7103P141-60
15
NUT, SNAP (ROUND-WHT)
16
BRACKET, INNER GLASS
17
Glass, Inner
18
MAY 8010P130-60
←
