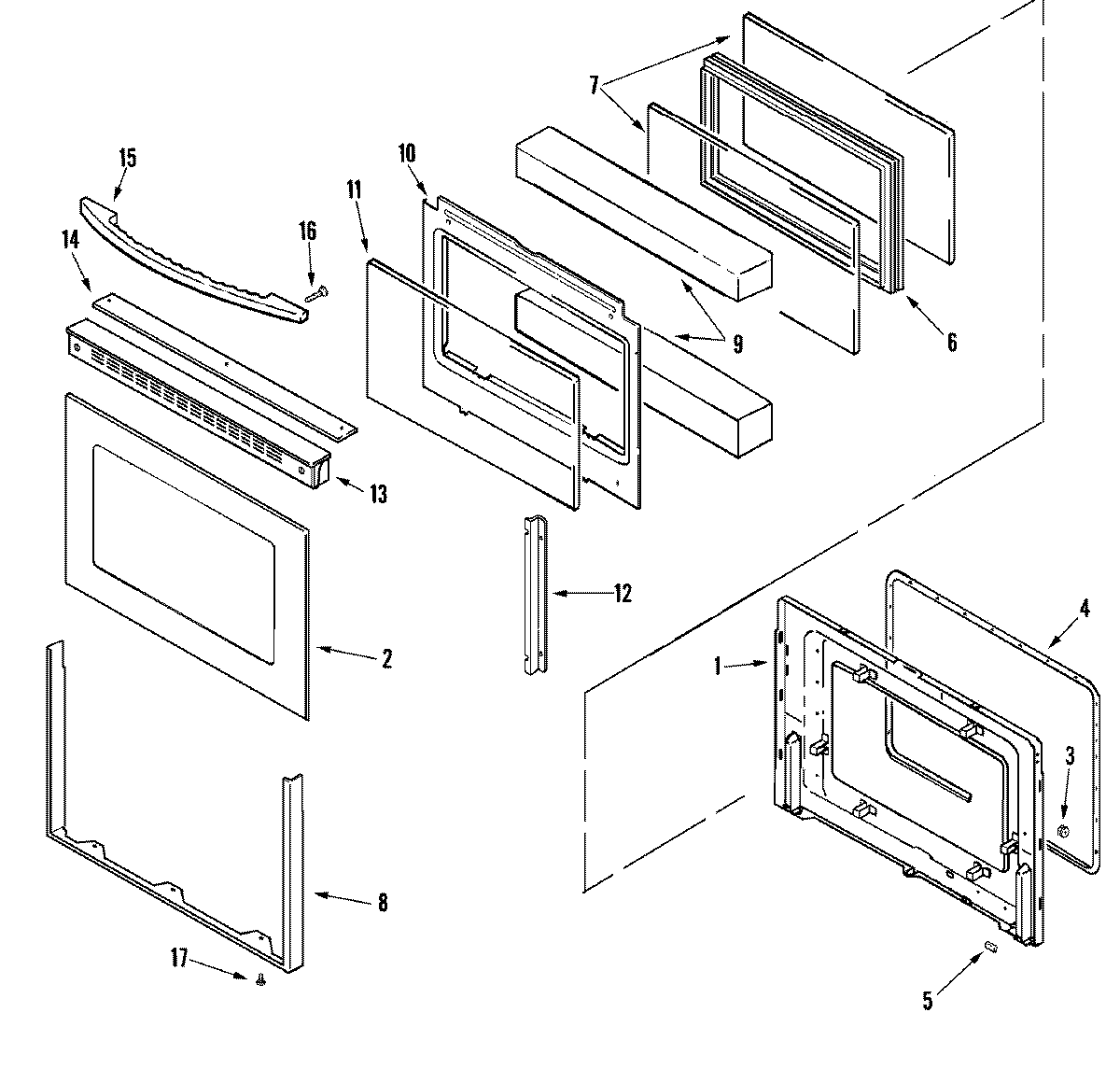

JGW8130DDW 03 – DOOR

Products

Position	Product
1	MAY 74003642
1	LINING, DOOR
2	MAY Y12002301
3	NUT, SNAP (ROUND-WHT)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	SCREW, 8 X 1/2
6	3801F886-51 Whirlpool Mounting Bracket
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	WP3608F116-71 Whirlpool Door Trim
8	WP3608F117-71 Whirlpool Door Trim
9	INSULATION, OVEN DOOR
10	3601F373-51 Whirlpool Baffle
10	MAY 74009502
11	GLASS, DOOR
12	MAY 74003650
13	WP74003653 Whirlpool Door Trim
13	WP98008544 Whirlpool Screw Assembly
13	WP90767 Whirlpool Screw
14	MAY 7728P094-60
14	MAY 74001278
15	MAY 74003656
16	WP179051 Whirlpool Screw
17	WP3807F708-71 Whirlpool Support
18	SCREW
