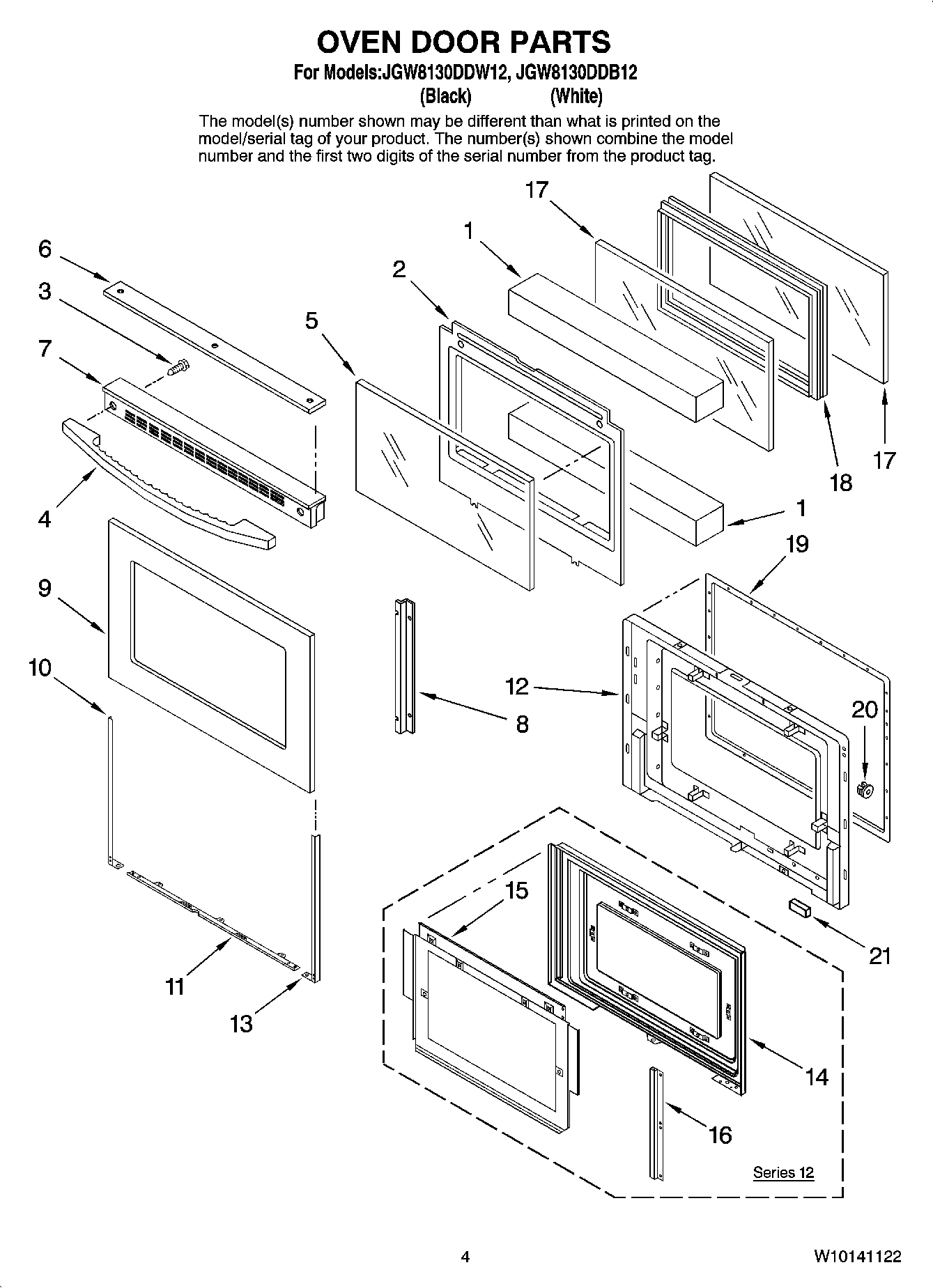

JGW8130DDW12 03 – OVEN DOOR PARTS

JGW8130DDW12 03 – OVEN DOOR PARTS

Written by

in

JGW8130DDW12 03 – OVEN DOOR PARTS

Products

PositionProduct
1INSULATION, OVEN DOOR
2MAY 74009502
3WP179051 Whirlpool Screw
4MAY 71003204
4MAY 74003656
5GLASS, DOOR
6MAY 7728P094-60
7WP74003652 Whirlpool Door Trim
7WP74003653 Whirlpool Door Trim
8MAY 74003650
9MAY 12002301
9Kit, Door Glass (Black)
10WP3608F117-70 Whirlpool Door Trim
11SUPPORT, GLASS (BLK)
11WP3807F708-71 Whirlpool Support
12MAY 74003642
13WP3608F116-71 Whirlpool Door Trim
13WP3608F116-70 Whirlpool Door Trim
14LINING, DOOR
153601F373-51 Whirlpool Baffle
163801F886-51 Whirlpool Mounting Bracket
1774003645 Whirlpool Range Oven Door Inner Glass
18FRAME, GLASS
19GASKT-DOOR OVEN
20NUT, SNAP (ROUND-BLK)
20NUT, SNAP (ROUND-WHT)
21WP74005546 Whirlpool RU Spacer
