JGW9130ADB 03 – DOOR

Products

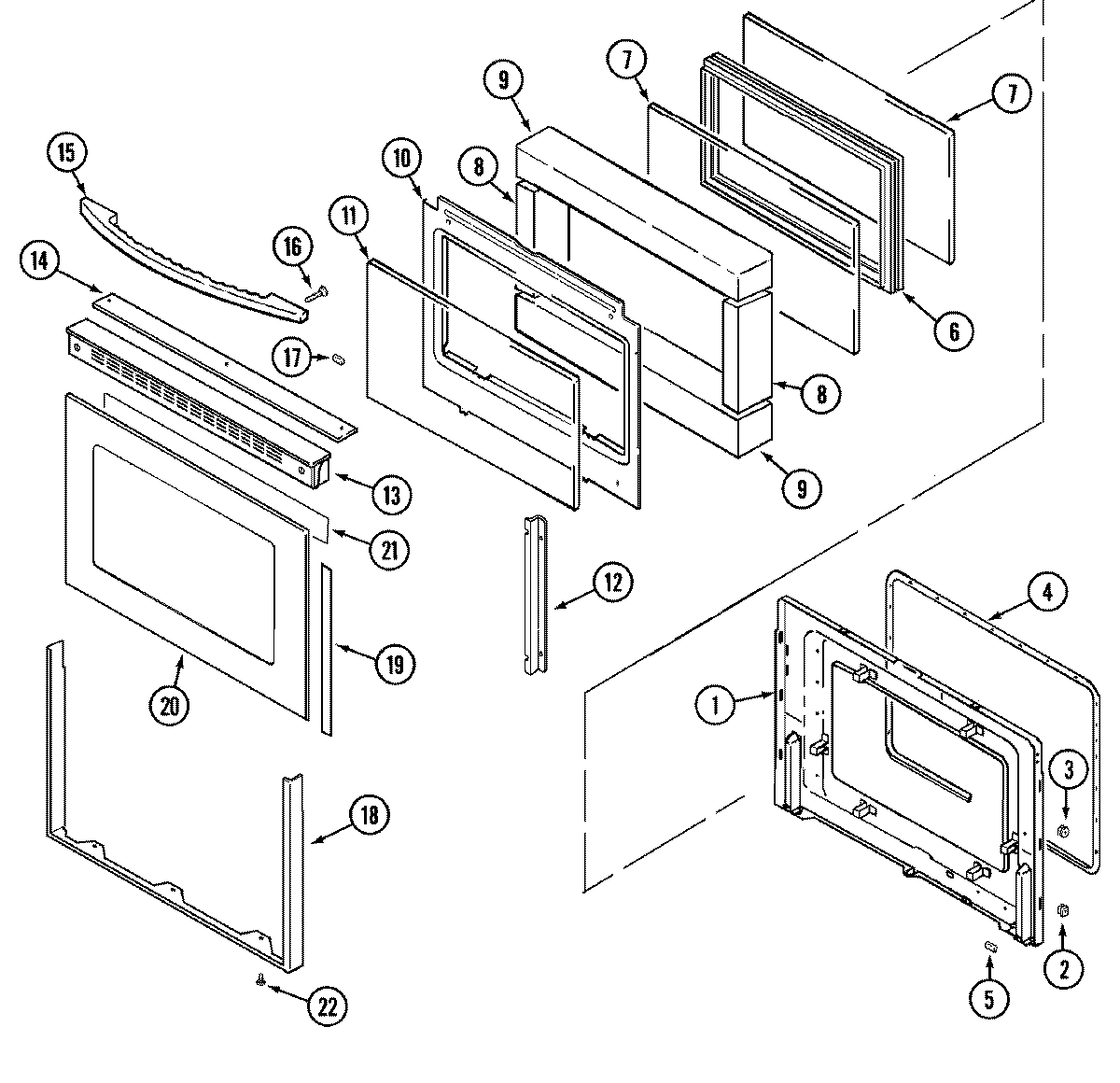

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003652 Whirlpool Door Trim
15	MAY 71003204
16	MAY 74001521
16	WP400021-1 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	WP98008545 Whirlpool Screw
18	MAY 74003658
19	MAY 74003660
20	MAY 74003662
21	TAPE, FOIL 29“ X 2“
22	SCREW
