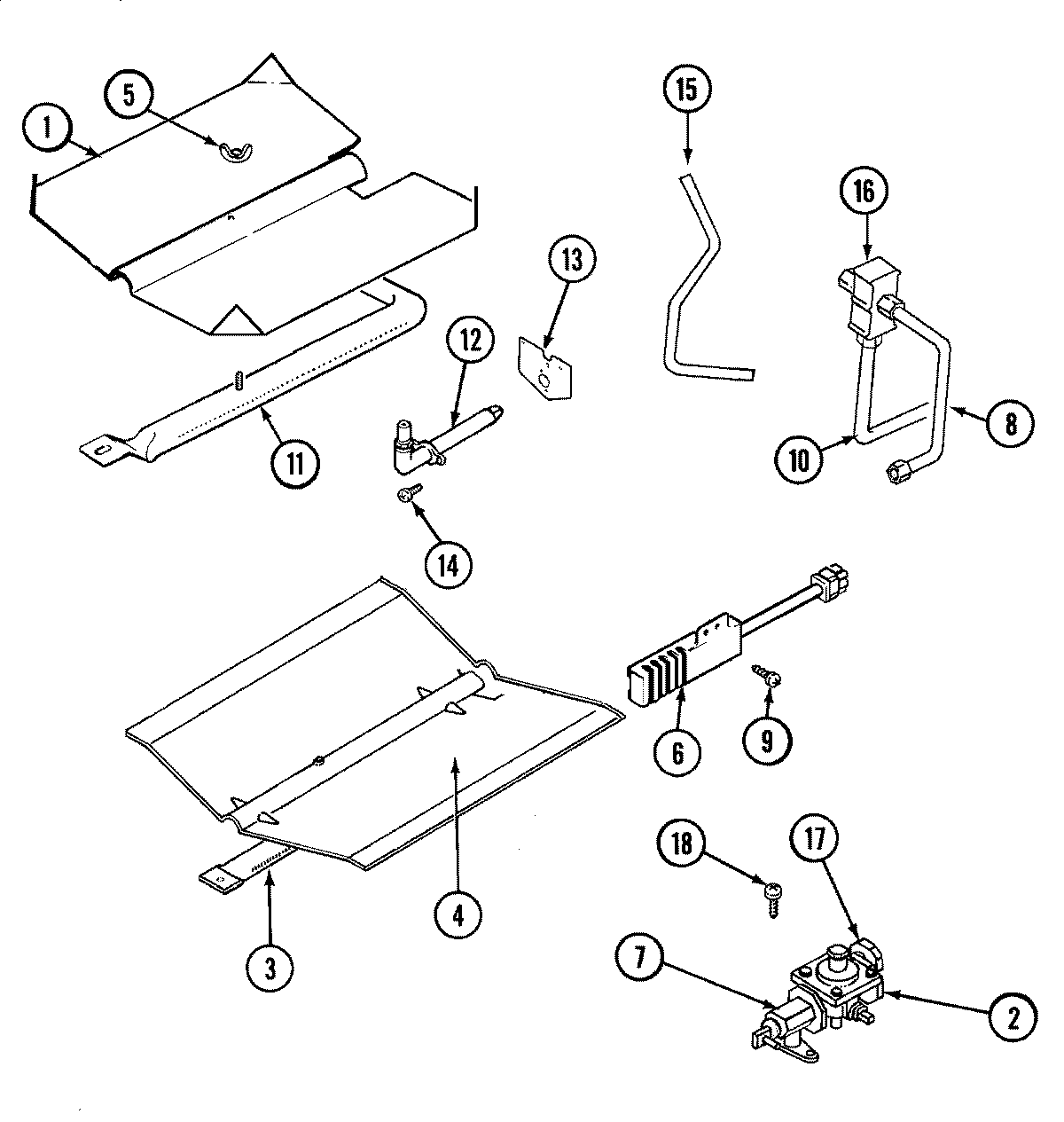

JGW9130ADB 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F217-45
2	MAY 3801F290-51
2	MAY 7510P047-60
3	MAY 3807F446-45
3	MAY 71003008
4	BAFFLE, OVEN BOTTOM
5	NUT, WING
6	SCREW (10-24X5/16-NI)
6	MAY 4005F421-45
6	MAY 7432P076-60
7	MAY 7501P041-60
8	MAY 7103P119-60
8	MAY 74004138
9	WP3351614 Whirlpool Screw
10	MAY 74004137
11	MAY 74004076
11	SCREW
12	MAY 7507P067-60
13	MAY 74004307
14	WP3387230 Whirlpool Screw
15	MAY 74004139
15	MAY 1555258K
16	MAY 7501P116-60
17	MAY 1555251
18	MAY 7101P290-60
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
