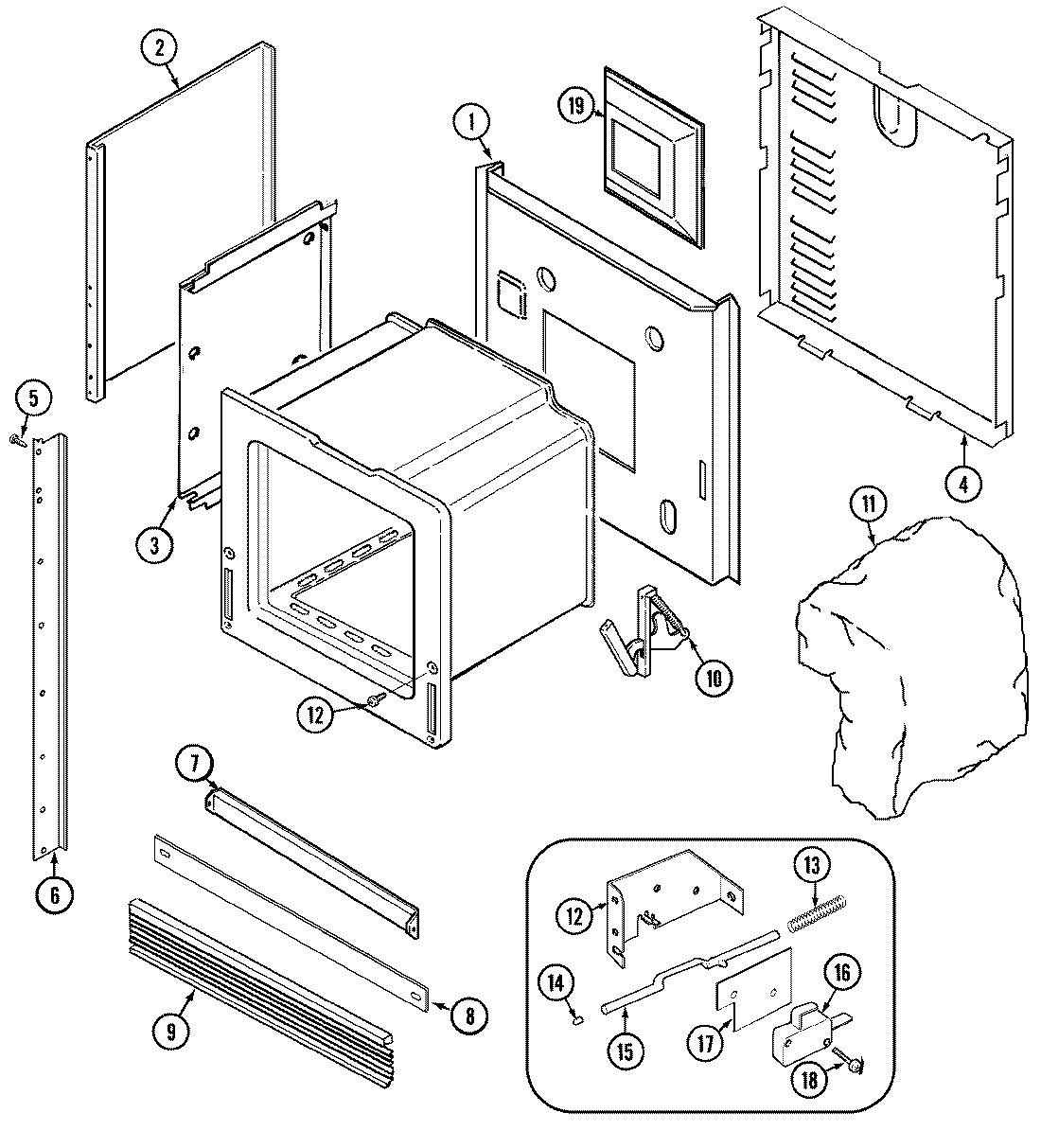

JGW9130ADW 01 – BODY

Products

PositionProduct
1MAY 74004108
2MAY 2618F083-51
3MAY 74001436
4MAY 74002240
4MAY 4005F405-51
5SCREW
6MAY 74004135
6MAY 74004136
7BAFFLE, OVEN FRONT
8MAY 4005F354-71
9MAY 74004130
10HINGE-OVEN DOOR
11WP74010942 Whirlpool Insulation
11MAY 74003036
12BRACKET, SWITCH ACTUATOR
14MAY 74001631
15ROD, DOOR LIGHT SWITCH
16MAY 74001627
16MAY 74001802
17MAY 74001872
18MAY 7101P330-60
19MAY 74001801
