JHC56*D1
Written by
in

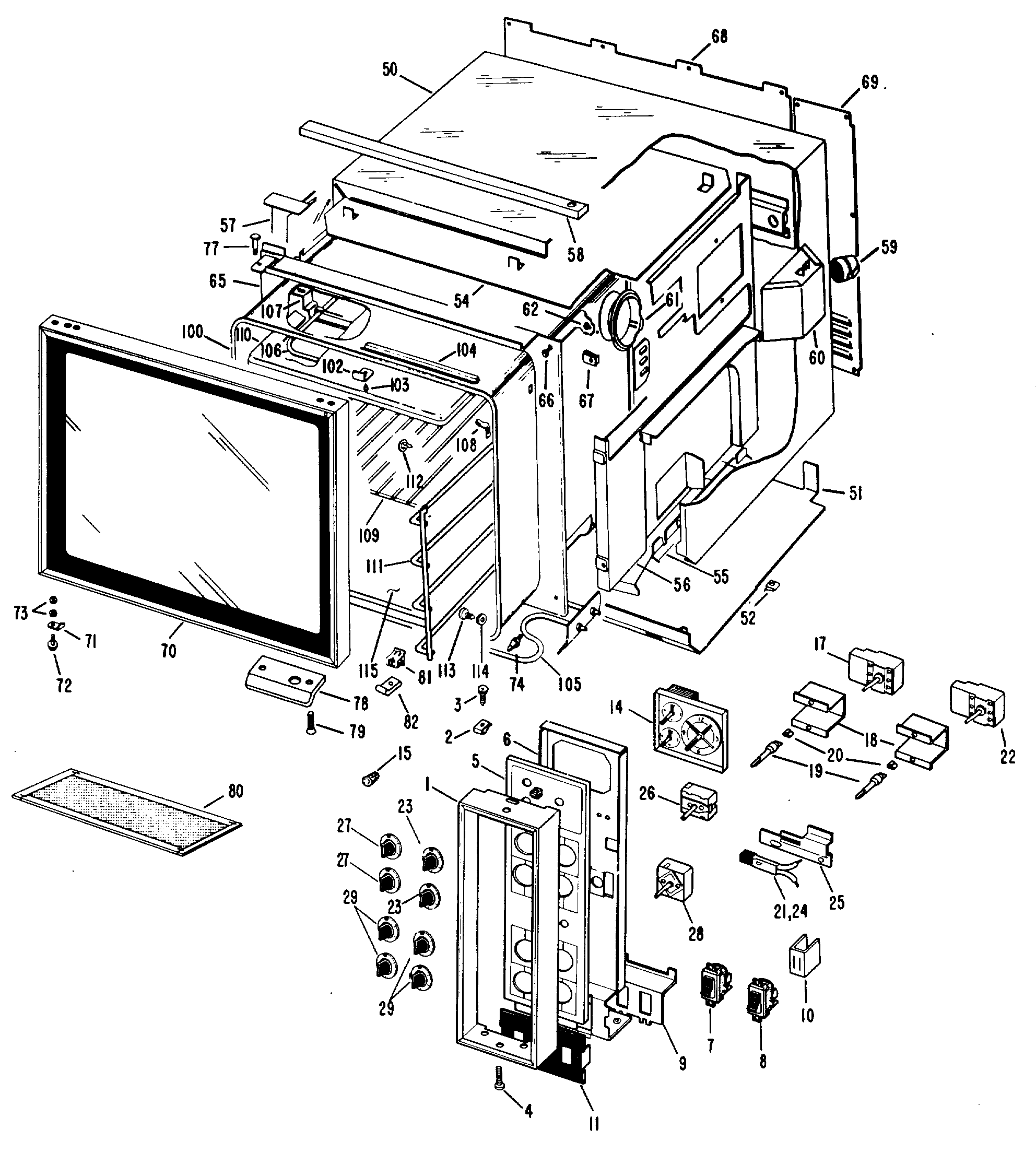

JHC56*D1
Products
Position
Product
1
CONTROL TRIM
2
SPEEDNUT
3
SCREW
5
GEN WB36X5368
6
INSTRUMENT BRACKET
7
SWITCH, LAMPS
8
SWITCH, FAN
9
SWITCH BRACKET
10
WB1X5364 GE Oven Mounting Screw
10
GEN WB02X3008
11
SWITCH TRIM
14
GEN WB19X0123
15
GEN WB03X0218
15
NUT
17
WB1X536 GE Oven Screw
17
GEN WB21X5208
18
THERMOSTAT BRACKET-UPP
18
SCREW MTG. THERMOSTAT
19
SHAFT EXTENSION-UPPER OV
20
CLIP SPRING
22
GEN WB02X6274
22
THERMOSTAT
23
GEN WB03X0470
24
NEON LAMP 118V
25
LAMP BRACKET
26
SWITCH, OVEN-UPPER
27
GEN WB03X0469
28
WB21X36771 GE Surface Element Switch
28
SCR 8-32 M PHR 3/16 S
29
KNOB – SURFACE UNIT SWIT
29
GEN WB02X1422
50
CASE SIDE, LH-CF
50
CASE SIDE-LT WHITE
50
GEN WB56X1465
50
CASE SIDE-RT-
50
ANGLE BRACE
50
CASE SIDE LH HA
50
CASE SIDE, RH-CF
50
CASE SIDE-RT WHITE
50
CASE SIDE, RH-FA
50
CASE SIDE RH HA
50
CASE SIDE, LH-FA
51
CASE BOTTOM
52
SPEEDNUT
54
GUARD TOP INSULATION
54
GEN WB02X1561
55
INSULATION GUARD
56
INSULATION GUARD-LOWER
57
GEN WB49X0179
58
SPEEDNUT
58
GEN WB07X0776
58
WZ4X241D GE Screw Package
59
GEN WB08X0191
60
OV LAMP SHIELD
61
OV LAMP LENS
62
WZ4X245D GE Screw Package
62
WB1X119D GE Oven Range Washer
65
FRONT FRAME
67
GEN WB02X2998
67
SPEEDNUT
68
COVER BACK
69
INSTRUMENT COVER
70
WB56X6082
71
GEN WB56X1658
73
WASHER
74
DOOR STRIKE
77
HINGE PIN
78
GEN WB15X0126
79
GEN WZ05X0120
80
GEN WB02X1665
80
GEN WB02X1666
81
SPRING CATCH
82
DOOR GUIDE
82
SCREW, MTG. GUIDE
100
GEN WB53X5075
100
GEN WB02X1511
102
TRIM CLIP
103
GEN WB01X5471
104
GASKET SILICONE UP OVEN
105
WB44X195 GE Oven Bake Unit
106
BROIL UNIT-UPPER OVEN
107
BROIL SUPPORT
107
WZ4X345D GE Screw Package 12 C92
108
CLIP CAP TUBE
109
RACK OVEN
110
REFLECTOR BROIL
111
GEN WB48
120
COOKTOP-CF
120
COOKTOP WH
120
COOKTOP HA
120
COOKTOP-FA
120
COOKTOP AD
121
GEN WB01X5520
121
GEN WB07X6677
121
GEN WB07X6676
121
GEN WZ04X0384
122
TRIM COOKTOP RH
122
TRIM COOKTOP LH
123
CLIP TRIM
124
GEN WB02X6619
124
GEN WB02X6620
125
POST SPACER
125
GEN WB02X6737
125
GEN WB02X6736
126
PANEL CRYSTAL RH-FA
126
PANEL CRYSTAL RH-HA
126
PANEL CRYSTAL LH-HA
126
PANEL CRYSTAL LH-AD
126
PANEL CRYSTAL LH-CF
126
PANEL CRYSTAL RH-AD
126
PANEL CRYSTAL RH-CF
126
PANEL CRYSTAL RH-WH
126
PANEL CRYSTAL LH WH
126
PANEL CRYSTAL LH-FA
127
PANEL-LAMP
128
GEN WB07X1174
128
GEN WB07X1176
128
GEN WB07X1169
128
GEN WB07X1177
128
GEN WB07X1178
128
GEN WB07X1173
128
GEN WB07X1172
128
GEN WB07X1175
128
GEN WB07X1170
128
GEN WB07X1171
129
HOUSING LAMP
129
WZ4X230D GE Screw Package 12
130
GEN WB36X0433
131
CLIP
133
SOCKET-LAMP
134
COVER BACK
150
WB30X218 GE Range Cooktop Burner Unit 6 Inch
152
GEN WB32X0052
153
GEN WB31X5010
154
WB30X219 GE Range Cooktop Burner Unit 8 Inch
154
SCREW RECEPT TERMINAL
156
GEN WB32X0051
157
WB31X5011 GE Oven 8" Chrome Drip Bowl
159
RR122 Supco Receptacle WB17X5051
160
GEN WB02X6171
161
CLIP LEAD
161
CLIP INSULATOR
200
GEN WB02X7006
200
GEN WB02X3229
201
GEN WB01X5516
202
GEN WB49X5149
202
GEN WB02X3238
203
GEN WB02X6882
203
GEN WB56X1301
203
FRAME FRONT
204
GEN WB02X6768
205
GUIDE DRAWER RH
205
GUIDE DRAWER LH
206
SLIDE GUIDE
207
SWITCH, OVEN LIGHT
209
BODY VENT
210
TUBE VENT
211
EXTENSION VENT TUBE
212
BAFFLE
213
WB17X5095 GE Black Oven Terminal
213
SCR 10-16 B SL 1-1/8 S
213
PLATE GROUND
214
GEN WB02X6055
215
BRACKET KNOCKOUT
215
GEN WB01X0386
217
GEN WB49X5156
218
GEN WB02X6187
219
SPRING DOOR
220
HOOK DOOR SPRING
221
HINGE LEVER ASM RH & LH
222
GEN WB01
←
