JHC56*VB

JHC56*VB

Written by

in

JHC56*VB

Products

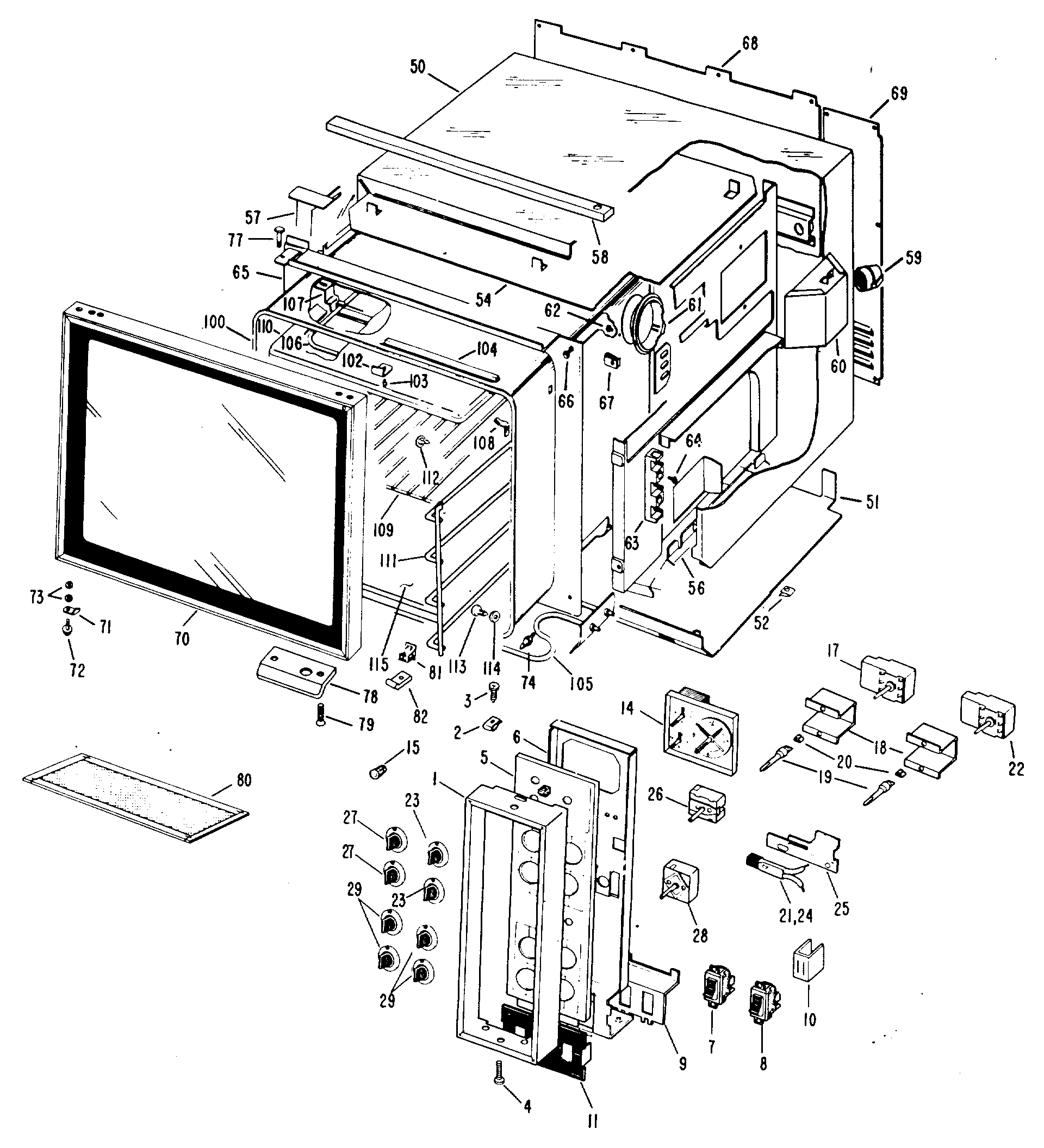

Position	Product
1	CONTROL TRIM
2	SPEEDNUT
3	SCREW
5	GEN WB36X5368
6	INSTRUMENT BRACKET
7	SWITCH, LAMPS
8	SWITCH, FAN
9	SWITCH BRACKET
10	GEN WB02X3008
10	WB1X5364 GE Oven Mounting Screw
11	SWITCH TRIM
14	GEN WB19X0123
15	NUT
15	GEN WB03X0218
17	WB1X536 GE Oven Screw
17	THERMOSTAT – UPPER OVEN
18	SCREW MTG. THERMOSTAT
18	THERMOSTAT BRACKET-UPP
19	SHAFT EXTENSION-UPPER OV
20	CLIP SPRING
22	GEN WB02X6274
22	THERMOSTAT, L.O.
23	GEN WB03X0470
24	NEON LAMP 118V
25	LAMP BRACKET
26	SWITCH, OVEN-UPPER
27	GEN WB03X0469
28	WB21X36771 GE Surface Element Switch
28	SCR 8-32 M PHR 3/16 S
29	KNOB – SURFACE UNIT SWIT
29	GEN WB02X1422
50	GEN WB56X1465
50	CASE SIDE-RT WHITE
50	CASE SIDE RH HA
50	CASE SIDE-RT-
50	ANGLE BRACE
50	CASE SIDE LH HA
50	CASE SIDE-LT WHITE
50	CASE SIDE, RH-FA
50	CASE SIDE, LH-CF
50	CASE SIDE, RH-CF
50	CASE SIDE, LH-FA
51	CASE BOTTOM
52	SPEEDNUT
54	GEN WB02X1561
54	GUARD TOP INSULATION
55	INSULATION GUARD
56	INSULATION GUARD-LOWER
57	GEN WB49X0179
58	WZ4X241D GE Screw Package
58	SPEEDNUT
58	GEN WB07X0776
59	GEN WB08X0191
60	OV LAMP SHIELD
61	OV LAMP LENS
62	WB1X119D GE Oven Range Washer
62	WZ4X245D GE Screw Package
63	BLOCK TERM DISTRIBUTION
64	GEN WZ04X0344
65	FRONT FRAME
67	GEN WB02X2998
67	SPEEDNUT
68	COVER BACK
69	INSTRUMENT COVER
70	WB56X6082
71	GEN WB56X1658
73	WASHER
74	DOOR STRIKE
77	HINGE PIN
78	GEN WB15X0126
79	GEN WZ05X0120
80	GEN WB02X1665
80	GEN WB02X1666
81	SPRING CATCH
82	SCREW, MTG. GUIDE
82	DOOR GUIDE
100	GEN WB02X1511
100	GEN WB53X5075
102	TRIM CLIP
103	GEN WB01X5471
104	GASKET SILICONE UP OVEN
105	WB44X195 GE Oven Bake Unit
106	BROIL UNIT-UPPER OVEN
107	BROIL SUPPORT
107	WZ4X345D GE Screw Package 12 C92
108	CLIP CAP TUBE
109	GEN WB48
120	COOKTOP-CF
120	COOKTOP AD
120	COOKTOP HA
120	COOKTOP-FA
120	COOKTOP WH
121	GEN WB01X5520
121	GEN WB07X6676
121	GEN WB07X6677
122	TRIM COOKTOP RH
122	TRIM COOKTOP LH
123	CLIP TRIM
124	GEN WB02X6619
124	GEN WB02X6620
125	GEN WB02X6737
125	POST SPACER
125	GEN WB02X6736
126	PANEL CRYSTAL RH-FA
126	PANEL CRYSTAL RH-HA
126	PANEL CRYSTAL LH-FA
126	PANEL CRYSTAL RH-WH
126	PANEL CRYSTAL LH-HA
126	PANEL CRYSTAL LH-AD
126	PANEL CRYSTAL RH-CF
126	PANEL CRYSTAL LH-CF
126	PANEL CRYSTAL LH WH
126	PANEL CRYSTAL RH-AD
127	PANEL-LAMP
128	GEN WB07X1175
128	GEN WB07X1176
128	GEN WB07X1177
128	GEN WB07X1170
128	GEN WB07X1178
128	GEN WB07X1174
128	GEN WB07X1173
128	GEN WB07X1172
128	GEN WB07X1171
128	GEN WB07X1169
129	WZ4X230D GE Screw Package 12
129	HOUSING LAMP
130	GEN WB36X0433
131	CLIP
133	SOCKET-LAMP
134	COVER BACK
150	WB30X218 GE Range Cooktop Burner Unit 6 Inch
152	GEN WB32X0052
153	GEN WB31X5010
154	WB30X219 GE Range Cooktop Burner Unit 8 Inch
154	SCREW RECEPT TERMINAL
156	GEN WB32X0051
157	WB31X5011 GE Oven 8" Chrome Drip Bowl
159	RR122 Supco Receptacle WB17X5051
160	GEN WB02X6171
161	CLIP INSULATOR
161	CLIP LEAD
200	GEN WB02X3229
200	CLAMP HARNESS
201	GEN WB01X5516
202	GEN WB02X3238
202	GEN WB49X5149
203	GEN WB56X1301
203	FRAME FRONT
203	GEN WB02X6882
204	GEN WB02X6768
205	GUIDE DRAWER LH
205	GUIDE DRAWER RH
206	SLIDE GUIDE
207	SWITCH, OVEN LIGHT
208	GEN WZ04X0384
209	BODY VENT
210	TUBE VENT
211	EXTENSION VENT TUBE
212	BAFFLE
213	PLATE GROUND
213	SCR 10-16 B SL 1-1/8 S
213	WB17X5095 GE Black Oven Terminal
214	GEN WB02X6055
215	BRACKET KNOCKOUT
215	GEN WB01X0386
217	GEN WB49X5156
218	GEN WB02X6187
219	SPRING DOOR
220	HOOK DOOR SPRING
221	HINGE LEVER ASM RH & LH
222	GEN WB01
