JHC56G*D1

JHC56G*D1

Written by

in

JHC56G*D1

Products

Position	Product
1	COOKTOP AD
1	COOKTOP HA
1	COOKTOP WH
3	WB21X36771 GE Surface Element Switch
4	KNOB – SURFACE UNIT SWIT
5	NEON LAMP 118V
5	GEN WB02X3468
9	GEN WB07X6677
9	GEN WB07X6676
11	SWITCH, OVEN-UPPER
12	GEN WB03X0469
14	THERMOSTAT
14	GEN WB21X5208
15	GEN WB03X0470
16	GEN WB19X0123
17	GEN WB3X459
18	GEN WB36X5368
18	GEN WB02X6240
18	GEN WB02X3232
21	COVER BACK
26	TRIM COOKTOP LH
26	TRIM COOKTOP RH
39	LAMP BRACKET
45	NUT
113	CLIP TRIM
148	GEN WZ04X0237
150	WB30X218 GE Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB31X5010
156	WB30X219 GE Range Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB31X5011 GE Oven 8" Chrome Drip Bowl
160	RR122 Supco Receptacle WB17X5051
160	SCREW RECEPT TERMINAL
161	GEN WB02X6171
162	CLIP INSULATOR
188	GEN WZ10X0114
250	GEN WB02X3229
251	FRAME FRONT
251	GEN WB02X6882
252	GEN WB02X6768
253	GEN WB49X5149
254	BODY VENT
256	GEN WB01X5516
258	GUIDE DRAWER RH
258	GUIDE DRAWER LH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5091
261	GEN WB10X5090
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB09X5075
271	BAFFLE
272	WB17X5095 GE Black Oven Terminal
274	BRACKET KNOCKOUT
275	GEN WB02X6655
276	COVER BACK
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
282	CLAMP HARNESS
285	EXTENSION VENT TUBE
287	GEN WB02X3447
292	GEN WB01X0386
302	GEN WB02X2885
303	WB36X192 GE Oven Light Cover
305	GEN WB02X6653
310	GEN WB49X5156
311	GEN WB02X6187
348	PLATE GROUND
350	GEN WB55X5182
350	GEN WB02X6833
351	SPACER DOOR
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5379
359	GEN WB07X5637
360	GEN WB49X0384
361	HANDLE SCREW
362	WB1X119D GE Oven Range Washer
363	SPACER PANEL
364	GROMMET HANDLE
365	GEN WB15X0145
377	GEN WB07X1031
385	GEN WB07X5631
386	HANDLE DRAWER
387	GEN WB02X6575
389	GEN WB07X5623
390	GEN WB07X5624
391	GEN WB02X3052
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X5636
395	GEN WB02X3053
396	GEN WB56X5678
397	GEN WZ04X0384
400	GEN WB36X0526
451	GEN WB02X6740
451	DRAWER ASM
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X230D GE Screw Package 12
457	GEN WB56X5799
458	GEN WB07X5659
459	WB1X537 GE Oven Screw
520	GEN WB53X5080
520	GEN WB02X3471
520	INSULATION
522	TRIM CLIP
525	GEN WB02X3448
528	RACK OVEN
530	WB48X10056 GE Broil Pan Set, Large Porcelain
532	TUBE VENT
534	WB2X1522 GE Stove Range Oven Silcone Door GasKET
535	WB2X7749 GE Oven Aluminum Foil
650	BAKE ELEMENT SELF CLEAN
651	WB44X134 GE Oven Broil Element
652	SUPPORT BROIL
740	CLIP WIRE BLACK
763	GEN WB02X1665
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5064
826	POST SPACER
827	ANGLE BRACE
828	SCREW
829	CLIP SPRING
851	GEN WB26X0027
852	GEN WB09X0072
853	GEN WB49X0216
854	GEN WB49X0217
855	GEN WB02X3239
856	GEN WB02X2235
858	GEN WB02X3456
859	GEN WB02X3457
860	GEN WB02X3458
861	GEN WB02X1581
862	GEN WB02X2015
863	GEN WB09X0073

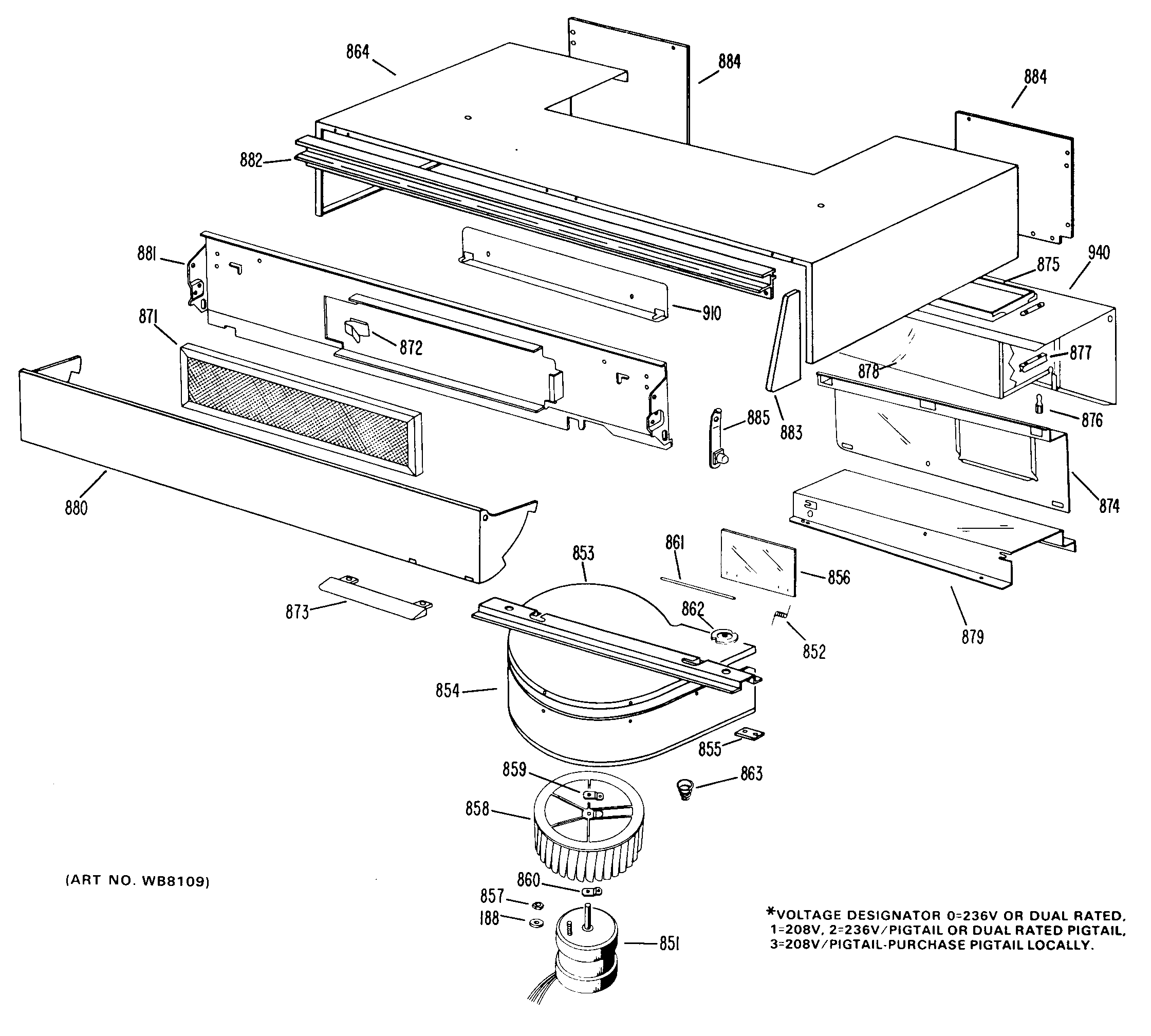

864	GEN WB62X1499
864	GEN WB62X1502
864	GEN WB62X1503
865	GEN WB02X6736
866	GEN WB07X1173
866	GEN WB07
866	GEN WB07X1172
866	GEN WB07X1169
868	PANEL CRYSTAL LH WH
871	GEN WB02X6731
872	GEN WB02X1583
873	GEN WB15X0109
874	GEN WB49X0218
875	GEN WB49X0182
876	GEN WB01X0426
877	GEN WB02X2016
878	GEN WB49X0183
879	GEN WB49X0181
880	GEN WB56X0923
881	GEN WB02X2629
882	GEN WB07X0772
883	GEN WB07X0770
883	GEN WB07X0771
883	GEN WB02X3432
884	GEN WB02X2017
885	SPRING & PIN ASM
886	GEN WB53X5075
887	RACK OVEN
888	REFLECTOR BROIL
889	INSTRUMENT COVER
894	GEN WB56X5873
895	GEN WB02X1658
897	WASHER
898	GEN WB49X0179
899	INSULATION GUARD
900	GASKET SILICONE UP OVEN
901	GUARD TOP INSULATION
901	GEN WB02X1561
903	OV LAMP SHIELD
904	OV LAMP LENS
905	BROIL SUPPORT
906	GEN WB56X1465
906	CASE SIDE-RT WHITE
906	CASE SIDE-LT WHITE
906	CASE SIDE LH HA
906	CASE SIDE-RT-
906	CASE SIDE RH HA
907	GEN WB02X1666
908	WB44X195 GE Oven Bake Unit
909	BROIL UNIT-UPPER OVEN
910	GEN WB49X0180
911	GEN WB15X0126
913	CASE BOTTOM
914	GEN WB02X7218
914	GEN WB02X7219
915	INSULATION GUARD-LOWER
917	FRONT FRAME
918	GEN WB07X0776
919	HINGE PIN
920	COVER BACK
921	DOOR GUIDE
922	SPRING CATCH
923	CONTROL TRIM
925	SWITCH TRIM
926	INSTRUMENT BRACKET
927	THERMOSTAT BRACKET-UPP
928	SWITCH BRACKET
929	SWITCH, LAMPS
930	SWITCH, FAN
931	SHAFT EXTENSION-UPPER OV
932	SPEEDNUT
933	CLIP
940	GEN WB49X0184
968	GROMMET
969	SUPPORT RACK
1201	WB1X5364 GE Oven Mounting Screw
32767	DOOR STRIKE
32767	GEN WZ04X0289
32767	GEN WZ04X0336
32767	GEN WB02X3152
32767	WB1X1141 GE Oven Screw 8-32
32767	GEN WZ05X0120
32767	GEN WB02X2260
32767	WZ4X245D GE Screw Package
32767	GEN WB07X6861
32767	GEN WZ04X0217
32767	GEN WB02X1511
32767	SCR 10-16 B SL 1-1/8 S
32767	WB17X171 GE Oven Terminal
32767	GEN WZ04X0413
32767	GEN WZ05X0
32767	GEN WZ04X0419
32767	GEN WB62X5323
32767	GEN WB62X5322
32767	GEN WB07X6864
32767	GEN WB07X6863
32767	GEN WB07X6862
32767	SPEEDNUT
32767	GEN 31-0423
32767	GEN WB01X5471
32767	GEN WB56X5998
32767	GEN WB02X6274
32767	GEN WB07X6860
32767	GEN WB07X6859
32767	GEN WB07X6858
32767	GEN WB02X1677
32767	GEN WB07X6857
32767	GEN WB02X1662
32767	GEN WB02X6659
32767	GEN WB02X3238
32767	GEN WB02X2107
32767	WZ4X345D GE Screw Package 12 C92
32767	GEN WB56X5999
32767	GEN WB01X5497
32767	WB1X500D GE Oven Screw Package
32767	GEN WB01X5520
32767	GEN WB01X5552
32767	PAD
32767	GEN WZ04X0255
32767	SCREW 6-32 X 1/4" HEX
32767	GEN WB62X5325
32767	GEN WB62X5324
32767	GEN WB56X6001
32767	GEN WB56X6000
32767	GEN WB02X1579
