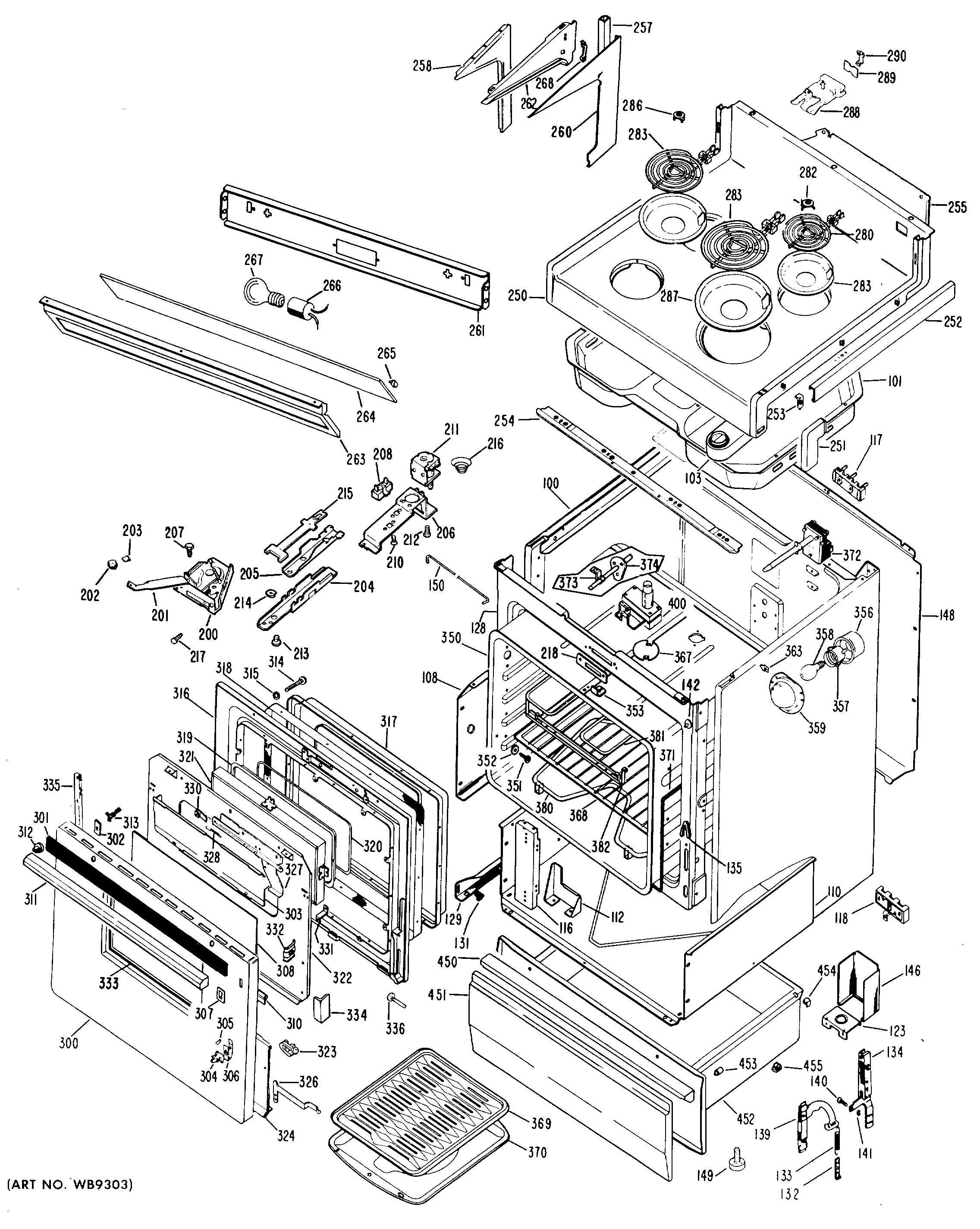

| 1 | CONTROL TRIM |
| 1 | SPEEDNUT |
| 3 | GEN WB36X5369 |
| 4 | SWITCH TRIM |
| 5 | INSTRUMENT BRACKET |
| 6 | SWITCH BRACKET |
| 7 | SWITCH, LAMPS |
| 8 | GEN WB02X3008 |
| 9 | SWITCH, FAN |
| 10 | GEN WB19X0123 |
| 10 | NUT |
| 11 | GEN WB03X0218 |
| 12 | THERMOSTAT - UPPER OVEN |
| 13 | THERMOSTAT BRACKET-UPP |
| 14 | GEN WB03X0470 |
| 15 | SHAFT EXTENSION-LOWER OV |
| 15 | SHAFT EXTENSION-UPPER OV |
| 17 | SWITCH, OVEN-UPPER |
| 18 | GEN WB03X0469 |
| 22 | LAMP BRACKET |
| 23 | GEN WB03X0466 |
| 24 | SWITCH - LOWER OVEN |
| 25 | NEON LAMP - 240V |
| 25 | GEN WB03X0465 |
| 26 | SCR 8-32 M PHR 3/16 S |
| 26 | WB21X36771 GE Surface Element Switch |
| 27 | KNOB - SURFACE UNIT SWIT |
| 27 | NEON LAMP 118V |
| 28 | SWITCH, LATCH RELEASE |
| 29 | GEN WB02X6497 |
| 30 | GEN WB14X0039 |
| 32 | THERMOSTAT BRACKET-LOWER |
| 32 | GEN WB02X6274 |
| 32 | SCREW MTG. THERMOSTAT |
| 32 | GEN WB24X0184 |
| 33 | GEN WB02X2900 |
| 50 | CASE SIDE LH HA |
| 50 | CASE SIDE-RT WHITE |
| 50 | GEN WB56X1465 |
| 50 | CASE SIDE-LT WHITE |
| 50 | CASE SIDE, LH-FA |
| 50 | CASE SIDE, RH-CF |
| 50 | CASE SIDE-RT- |
| 50 | ANGLE BRACE |
| 50 | CASE SIDE, LH-CF |
| 50 | CASE SIDE, RH-FA |
| 50 | CASE SIDE RH HA |
| 51 | CASE BOTTOM |
| 53 | SPEEDNUT |
| 54 | GEN WB02X1561 |
| 54 | GUARD TOP INSULATION |
| 55 | INSULATION GUARD-LOWER |
| 57 | GEN WB49X0179 |
| 58 | FRONT FRAME |
| 59 | GEN WZ05X0120 |
| 60 | SPEEDNUT |
| 62 | GEN WZ04X0344 |
| 63 | GEN WB07X0776 |
| 63 | SPEEDNUT |
| 64 | COVER BACK |
| 65 | INSTRUMENT COVER |
| 67 | GEN WB02X1665 |
| 67 | GEN WB02X1666 |
| 68 | CLIP CAP TUBE |
| 70 | GEN WB02X1511 |
| 70 | GEN WB53X5078 |
| 72 | GASKET SILICONE UP OVEN |
| 73 | TRIM CLIP |
| 75 | OV LAMP SHIELD |
| 76 | OV LAMP LENS |
| 77 | GEN WB08X0191 |
| 78 | WZ4X245D GE Screw Package |
| 79 | OVEN RACK-UPPER |
| 80 | WB44X195 GE Oven Bake Unit |
| 81 | BROIL UNIT-UPPER OVEN |
| 82 | BROIL SUPPORT |
| 83 | REFLECTOR BROIL |
| 84 | GEN WB56X1046 |
| 85 | GEN WB56X1282 |
| 86 | GEN WB56 |
| 100 | SCREW, MTG. GUIDE |
| 100 | DOOR GUIDE |
| 100 | GEN WB02X3229 |
| 100 | CLAMP HARNESS |
| 101 | GEN WB49X5149 |
| 101 | GEN WB02X3238 |
| 103 | BODY VENT |
| 108 | GUARD UPPER-RH |
| 108 | GUARD UPPER-LH |
| 110 | GEN WB49X5156 |
| 112 | GEN WB02X6187 |
| 116 | GEN WB02X6768 |
| 117 | GEN WZ04X0384 |
| 117 | BLOCK TERM DISTRIBUTION |
| 118 | SCR 10-16 B SL 1-1/8 S |
| 118 | WB17X5095 GE Black Oven Terminal |
| 118 | PLATE GROUND |
| 123 | BRACKET KNOCKOUT |
| 128 | FRONT FRAME |
| 128 | GEN WB02X3240 |
| 129 | GUIDE DRAWER LH |
| 131 | SLIDE GUIDE |
| 132 | HOOK DOOR SPRING |
| 133 | SPRING DOOR |
| 134 | GEN WB01X5497 |
| 134 | GEN WB10X5090 |
| 134 | GEN WB01X5471 |
| 134 | GEN WB10X5091 |
| 134 | WB1X119D GE Oven Range Washer |
| 135 | GEN WB02X6342 |
| 139 | HINGE LEVER ASM RH & LH |
| 140 | GEN WB02X6195 |
| 141 | RING RETAINING |
| 142 | GEN WB02X6196 |
| 142 | SWITCH, OVEN LIGHT |
| 146 | GEN WB02X6655 |
| 148 | GEN WB49X5161 |
| 149 | GEN WB01X5516 |
| 150 | GEN WB02X6767 |
| 200 | LATCH |
| 201 | SCREW & WASHER ASM |
| 201 | GEN WB15X0142 |
| 202 | GEN WB03X0322 |
| 203 | RETAINER KNOB |
| 204 | GEN WB02X3157 |
| 205 | GEN WB02X3158 |
| 206 | PLATE MOUNTING |
| 206 | WB1X536 GE Oven Screw |
| 207 | GEN WZ04X0362 |
| 208 | GEN WB24X0183 |
| 210 | GEN WB01X0561 |
| 211 | GEN WB24X5097 |
| 212 | SCREW MTG. SOLENOID |
| 213 | GEN WB02X6212 |
| 214 | RETAINER RING |
| 215 | GEN WB02X3159 |
| 216 | GEN WB09X0148 |
| 217 | WZ2X464D GE Screw |
| 218 | GEN WB07X0552 |
| 250 | COOKTOP-FA |
| 250 | COOKTOP-CF |
| 250 | COOKTOP WH |
| 250 | COOKTOP HA |
| 250 | COOKTOP AD |
| 251 | GEN WB07X6677 |
| 251 | GEN WB07X6676 |
| 251 | SCR 8-32 T HXW 7/8 S |
| 252 | TRIM COOKTOP RH |
| 252 | TRIM COOKTOP LH |
| 253 | WB1X5364 GE Oven Mounting Screw |
| 253 | CLIP TRIM |
| 254 | SCREW |
| 254 | GEN WB07X1100 |
| 255 | COVER BACK |
| 257 | GEN WB02X6620 |
| 257 | GEN WB02X6619 |
| 258 | GEN WB02X6737 |
| 258 | GEN WB02X6736 |
| 258 | WZ4X345D GE Screw Package 12 C92 |
| 260 | GEN WZ04 |
| 260 | GEN WB07X1178 |
| 260 | GEN WB07X1177 |
| 260 | GEN WB07X1176 |
| 260 | GEN WB07X1175 |
| 260 | GEN WB07X1174 |
| 260 | GEN WB07X1172 |
| 260 | GEN WB07X1171 |
| 260 | GEN WB07X1170 |
| 260 | GEN WB07X1169 |
| 260 | GEN WB07X1173 |
