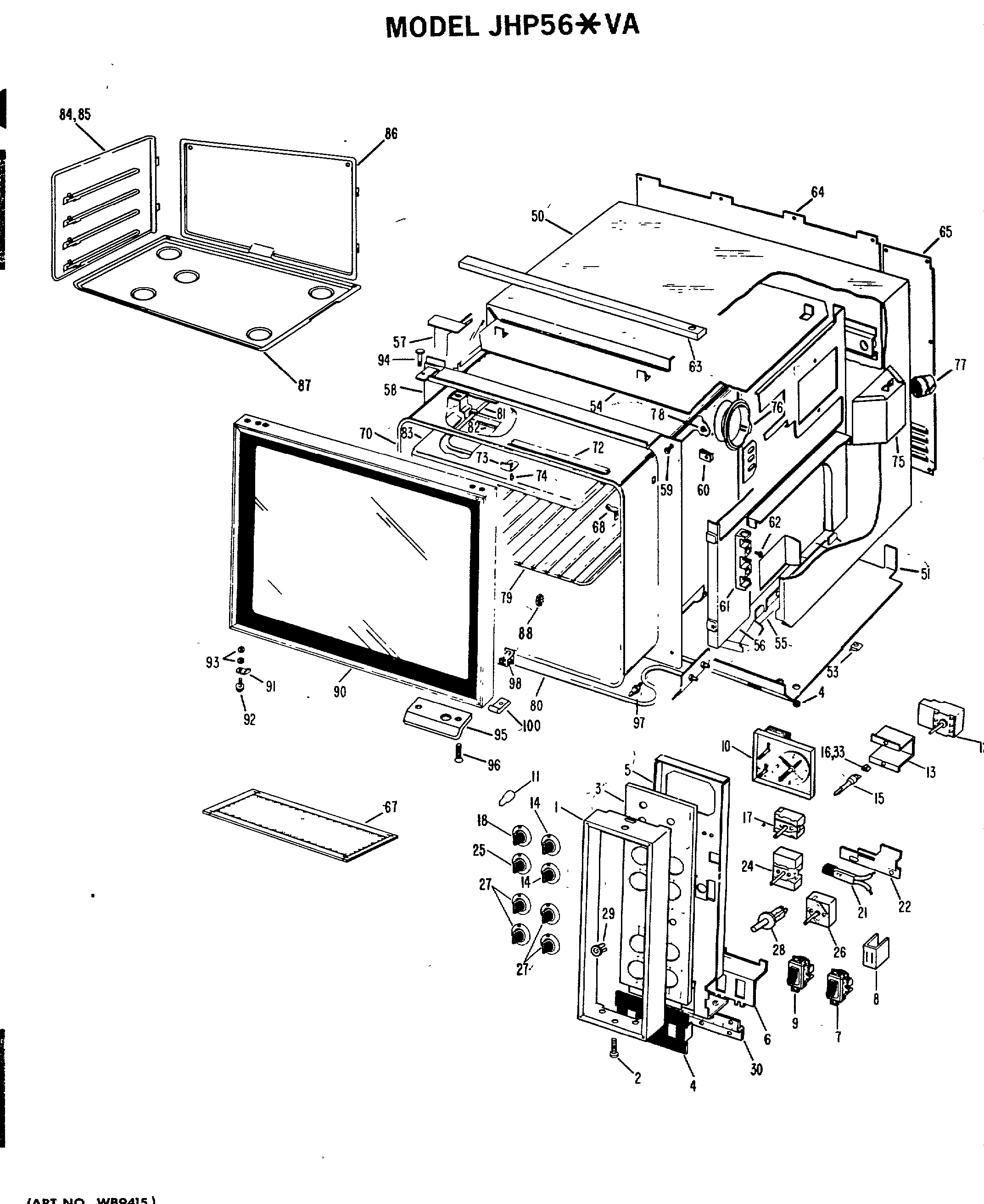

JHP56*VA CONTROL PARTS

JHP56*VA CONTROL PARTS

Written by

in

JHP56*VA CONTROL PARTS

Products

PositionProduct
1CONTROL TRIM
1SPEEDNUT
3GEN WB36X5369
4SWITCH TRIM
5INSTRUMENT BRACKET
6SWITCH BRACKET
7SWITCH, LAMPS
7WB1X5364 GE Oven Mounting Screw
8GEN WB02X3008
9SWITCH, FAN
10GEN WB19X0123
10NUT
11GEN WB03X0459
12THERMOSTAT – UPPER OVEN
13THERMOSTAT BRACKET-UPP
14GEN WB03X0470
15SHAFT EXTENSION-LOWER OV
15SHAFT EXTENSION-UPPER OV
17SWITCH, OVEN-UPPER
18GEN WB03X0469
22LAMP BRACKET
23GEN WB03X0466
24SWITCH – LOWER OVEN
25GEN WB03X0465
25NEON LAMP – 240V
26SCR 8-32 M PHR 3/16 S
26WB21X36771 GE Surface Element Switch
27NEON LAMP 118V
27KNOB – SURFACE UNIT SWIT
28SWITCH, LATCH RELEASE
29GEN WB02X6497
30GEN WB14X0039
32GEN WB24X0184
32GEN WB02X6274
32THERMOSTAT BRACKET-LOWER
32SCREW MTG. THERMOSTAT
33GEN WB02X2900
50ANGLE BRACE
50CASE SIDE-LT WHITE
50CASE SIDE RH HA
50CASE SIDE-RT WHITE
50GEN WB56X1465
50CASE SIDE LH HA
50CASE SIDE, RH-CF
50CASE SIDE, LH-FA
50CASE SIDE, LH-CF
50CASE SIDE, RH-FA
50CASE SIDE-RT-
51CASE BOTTOM
53SPEEDNUT
54GUARD TOP INSULATION
54GEN WB02X1561
55INSULATION GUARD-LOWER
57GEN WB49X0179
58FRONT FRAME
59GEN WZ05X0120
60SPEEDNUT
61BLOCK TERM DISTRIBUTION
62GEN WZ04X0344
63SPEEDNUT
63GEN WB07X0776
64COVER BACK
65INSTRUMENT COVER
67GEN WB02X1665
67GEN WB02X1666
68CLIP CAP TUBE
70GEN WB53X5078
70GEN WB02X1511
72GASKET SILICONE UP OVEN
73TRIM CLIP
74GEN WB01X5471
75OV LAMP SHIELD
76OV LAMP LENS
77GEN WB08X0191
78WB1X119D GE Oven Range Washer
78WZ4X245D GE Screw Package
79OVEN RACK-UPPER
80WB44X195 GE Oven Bake Unit
81BROIL UNIT-UPPER OVEN
82WZ4X345D GE Screw Package 12 C92
82BROIL SUPPORT
83REFLECTOR BROIL
84GEN WB56X1046
85GEN WB56X1282
86GEN WB56
