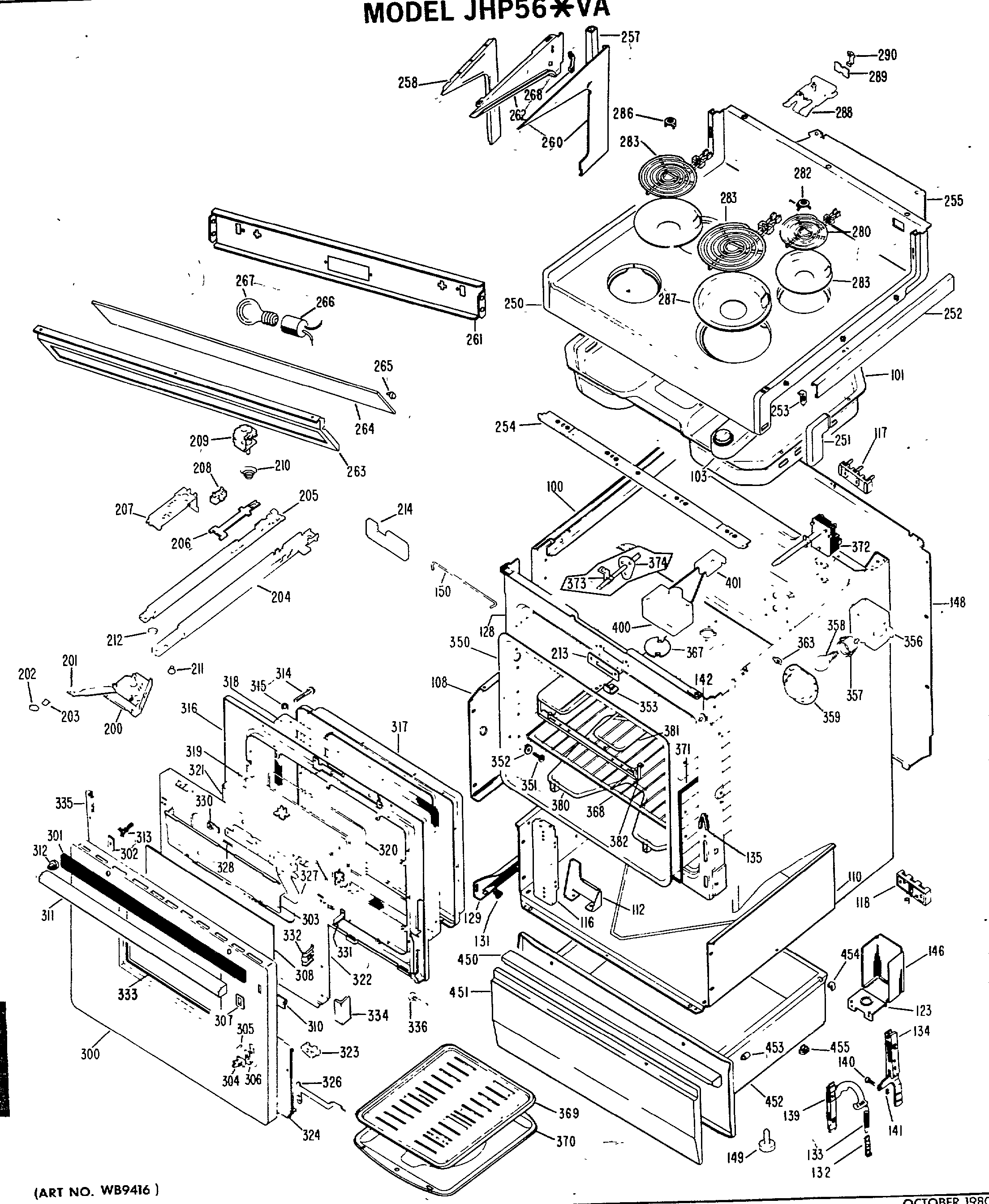

JHP56*VA OVEN DOOR PARTS – UPPER

JHP56*VA OVEN DOOR PARTS – UPPER

Written by

in

JHP56*VA OVEN DOOR PARTS – UPPER

Products

PositionProduct
100CLAMP HARNESS
100DOOR GUIDE
100SCREW, MTG. GUIDE
100GEN WB02X3229
101GEN WB02X3238
101GEN WB49X5149
103BODY VENT
108GEN WB49X5221
108GEN WB49X5222
110GEN WB49X5156
112GEN WB02X6187
116GEN WB02X6768
117BLOCK TERM DISTRIBUTION
117GEN WZ04X0384
118WB17X5095 GE Black Oven Terminal
118SCR 10-16 B SL 1-1/8 S
118PLATE GROUND
123BRACKET KNOCKOUT
123WB1X536 GE Oven Screw
128GEN WB02X3240
128GEN WB56X5861
129GUIDE DRAWER LH
131SLIDE GUIDE
132HOOK DOOR SPRING
133SPRING DOOR
134GEN WB10X5091
134GEN WB10X5090
134GEN WB01X5471
134GEN WB01X5497
134WB1X119D GE Oven Range Washer
135GEN WB02X6342
139HINGE LEVER ASM RH & LH
140GEN WB02X6195
141RING RETAINING
142SWITCH, OVEN LIGHT
142GEN WB02X6196
146GEN WB02X6655
148GEN WB49X5161
149GEN WB01X5516
150GEN WB02X6767
200GEN WZ02X0546
200LATCH ASSEMBLY
201GEN WB15X0142
202GEN WB03X0322
203RETAINER KNOB
204GEN WB02X3174
205GEN WB02X3175
206GEN WB02X3159
207GEN WZ04X0362
207PLATE – MOUNTING
207GEN WZ04X0396
208GEN WB24X0183
208BARRIER LATCH SW LOW OV
208GEN WZ04X0397
209SCREW & WASHER ASM
209GEN WB24X0197
210GEN WB09X0148
211GEN WB02X6212
212GEN WB02X3147
212RETAINER RING
213GEN WB07X0552
214GEN WZ04X0394
214GEN WZ10X0114
214GEN WB02X6911
250COOKTOP-FA
250COOKTOP-CF
250COOKTOP AD
250COOKTOP HA
250COOKTOP WH
251GEN WB07X6676
251SCR 8-32 T HXW 7/8 S
251GEN WB07X6677
252TRIM COOKTOP RH
252TRIM COOKTOP LH
253CLIP TRIM
253WB1X5364 GE Oven Mounting Screw
254GEN WB07X1100
254SCREW
255COVER BACK
257GEN WB02X6619
257GEN WB02X6620
258GEN WB02X6736
258WZ4X345D GE Screw Package 12 C92
258GEN WB02X6737
260GEN WB07X1170
260GEN WB07X1171
260GEN WB07
260GEN WB07X1169
