JHP56G*M1

JHP56G*M1

Written by

in

JHP56G*M1

Products

Position	Product
1	COOKTOP AD
1	COOKTOP HA
1	COOKTOP WH
3	WB21X36771 GE Surface Element Switch
4	ELEMENT KNOB
5	NEON LAMP 118V
5	GEN WB02X3468
9	GEN WB07X6676
9	GEN WB07X6677
11	GEN WB22X5103
11	SWITCH, OVEN-UPPER
12	OVEN SWITCH KNOB
12	OVEN SWITCH KNOB-LO
14	GEN WB02X6274
14	GEN WB21X5208
15	KNOB
15	THERMOSTAT KNOB
16	GEN WB19X0123
17	GEN WB03X0459
18	GEN NO CAT
18	GEN WB02X6240
18	GEN WB36X5612
21	COVER BACK
26	TRIM COOKTOP RH
26	TRIM COOKTOP LH
27	GEN WB02X2900
39	LAMP BRACKET
45	NUT
113	CLIP TRIM
122	GEN WB02X1422
148	GEN WZ04X0237
148	WB1X536 GE Oven Screw
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB32X5059
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
164	WB31X5014 GE 8-Inch Chrome Trim Ring
180	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
250	OVEN ASSEMBLY
251	GEN WB56X6054
252	GEN WB02X7864
253	GEN WB49X5465
254	BODY VENT
255	GEN WB07X7036
256	GEN WB01X5516
258	GUIDE DRAWER LH
258	GUIDE DRAWER RH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5091
261	GEN WB10X5090
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
267	SPRING DOOR
268	GEN WB29X5019
274	KNOCKOUT PLATE
275	GEN WB02X7774
276	GEN WB49X5398
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5138
283	GEN WB02X3163
283	GEN WB02X3164
290	GEN WB24X5239
292	GEN WB01X0386
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
305	GEN WB02X6653
309	GEN WB02X6767
310	GEN WB49X5156
348	PLATE GROUND
350	GEN WB55X5322
350	INSULATION DOOR
352	WB2X6547 GE Oven Door Gasket
355	GEN WB55X5343
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5560
359	GEN WB7X6886
360	GEN WB55X5325
361	GEN WB01X5735
362	WB1X119D GE Oven Range Washer
363	GEN WB02X7616
365	GEN WB15X5174
373	GEN WB36X5634
386	HANDLE DRAWER
391	GEN WB02X7881
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X6889
397	WB15X5189 GE Oven Endcap 2-Pack
397	GEN WZ04X0384
399	GEN WB02X3285
402	GEN WB01X0591
403	GEN WB02X7188
404	GEN WB36X5477
406	BRACKET DOOR
407	GEN WB07X6913
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X7609
441	GEN WB02X7610
442	GEN WB01X5743
451	GEN WB02X6740
451	DRAWER ASM
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X345D GE Screw Package 12 C92
456	WZ4X230D GE Screw Package 12
457	GEN WB56X5799
458	GEN WB07X5659
459	WB1X537 GE Oven Screw
520	GEN WB53X5131
520	GEN WB02X6496
520	GEN WB02X3471
522	TRIM CLIP
523	GEN WB02X7693
526	GEN WB02X3165
528	RACK OVEN
529	GEN WB49X
763	GEN WB02X1665
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5064
789	GEN WB27X5271
826	POST SPACER
827	ANGLE BRACE
828	SCREW
829	CLIP SPRING
830	GEN WB02X3463

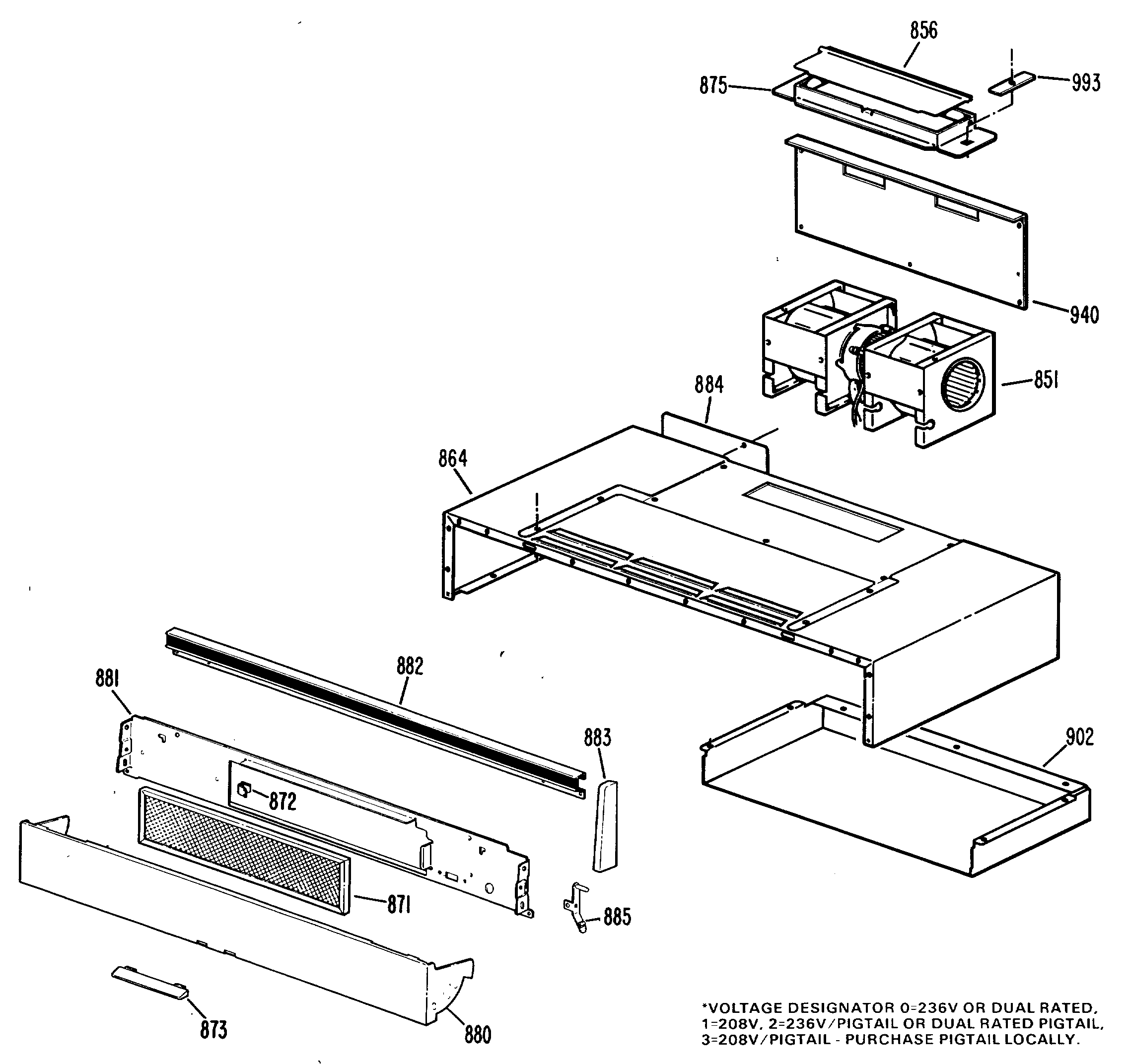

851	BLOWER ASM
856	GEN WB02X7764
864	GEN WB56X7007
871	GEN WB02X7758
872	GEN WB02X1583
873	GEN WB15X0109
875	GEN WB49X5935
880	GEN WB56X0923
881	FILTER PLATE
882	HOOD TRIM
883	GEN WB07X0771
883	GEN WB02X3432
883	GEN WB07X0770
884	GEN WB02X2017
885	SPRING & PIN ASM
886	GEN WB02X1511
886	OVEN BODY
887	OVEN RACK-UPPER
888	BROILER REFLECTOR
889	INSTRUMENT COVER
890	GEN WB56X6057
890	SIDE PANEL-LT
891	WR62X51 GE Refrigerator Capacitor
892	BOTTOM PANEL
893	REAR PANEL
894	GEN WB56X6024
895	GEN WB02X1658
897	WASHER
898	GEN WB49X0179
899	INSULATION GUARD
900	GASKET SILICONE UP OVEN
901	INSULATION GUARD-TOP
902	PLENUM
903	OV LAMP SHIELD
904	OV LAMP LENS
905	BROIL SUPPORT
906	CASE SIDE-RT WHITE
906	CASE SIDE-LT WHITE
906	CASE SIDE-RT-
906	CASE SIDE LH HA
906	CASE SIDE RH HA
906	GEN WB56X1465
907	GEN WB02X1666
908	WB44X195 GE Oven Bake Unit
909	BROIL UNIT-UPPER OVEN
911	GEN WB15X5165
912	DOOR STRIKE
913	CASE BOTTOM
915	INSULATION GUARD-LOWER
917	FRONT FRAME
918	GEN WB07X0776
919	HINGE PIN
920	BACK COVER
921	DOOR GUIDE
922	SPRING CATCH
923	CONTROL TRIM
925	SWITCH TRIM
926	INSTRUMENT BRACKET
927	THERMOSTAT BRACKET-UPP
927	THERMOSTAT BRACKET-LOWER
928	SWITCH BRACKET
929	SWITCH, LAMPS
930	SWITCH, FAN
931	SHAFT EXTENSION-UPPER OV
931	SHAFT EXTENSION-LOWER OV
932	SPEEDNUT
933	CLIP
940	HOUSING COVER
978	GEN WB02X1126
993	GEN WB02X7765
1201	WB1X5364 GE Oven Mounting Screw
32767	GEN 49-4801
32767	GEN 31-0877
