JHP56GN6AD 1

Products

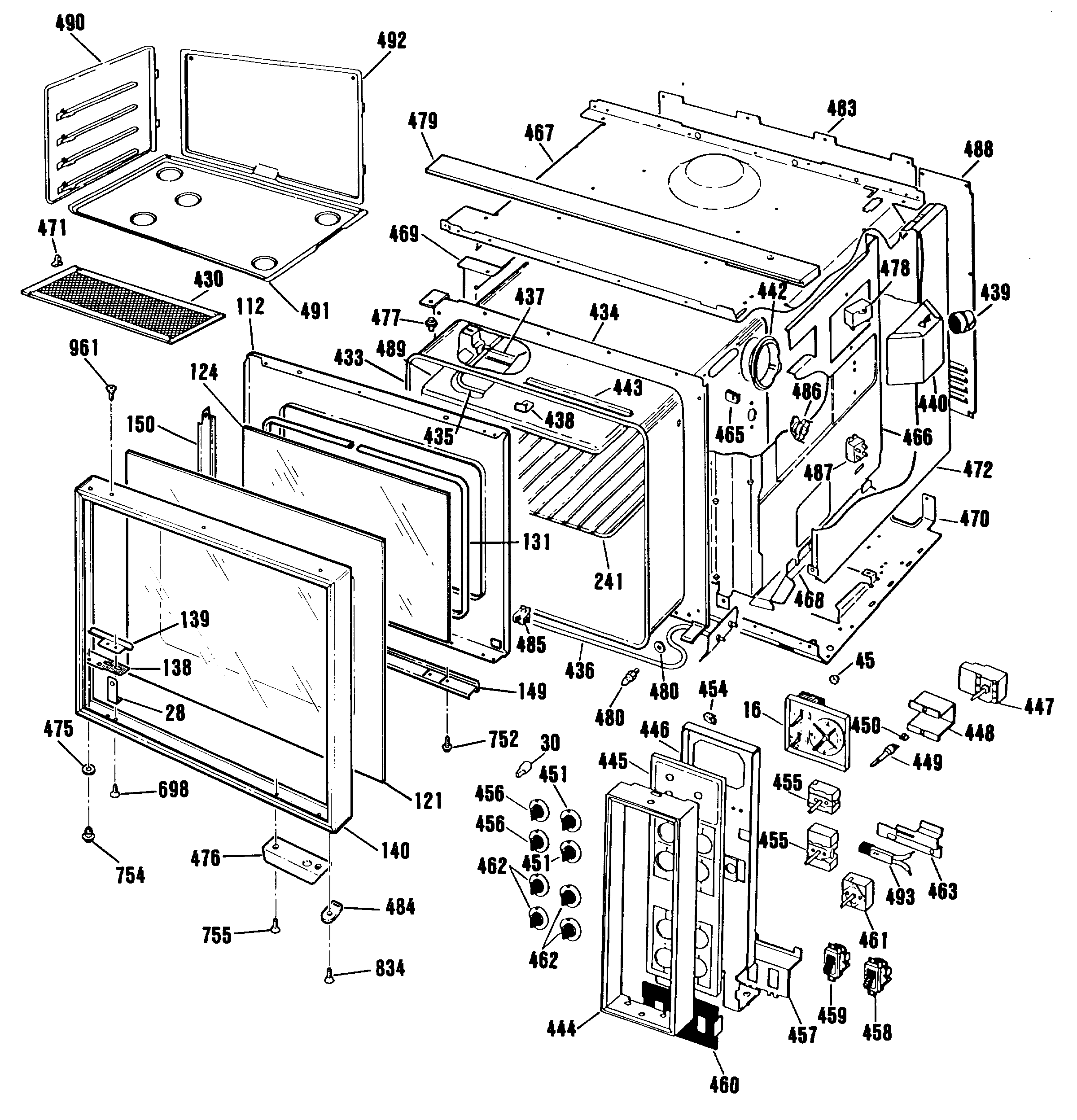

Position	Product
16	GEN WB19X0123
28	GEN WB02K5268
30	GEN WB03X0766
45	NUT
45	POST SPACER
112	GEN WB56K5106
112	GEN WB55K5033
121	OV DR OUTER GLASS
121	GEN WB57K5202
124	GEN WB57K5201
131	WB2X9168 GE Oven Seal
131	GEN WB02K5288
138	GEN WB02K5290
139	GEN WB02K5289
140	OVEN DOOR FRAME
140	OV DR FRAME W/OVERLAY
140	GEN WB56M0012
149	GEN WB02K5286
149	GEN WB02K5285
150	GEN WB02K5287
241	OVEN RACK-UPPER
241	GEN WB48X0208
430	GEN WB02X1666
433	GEN WB63K5179
434	FRONT FRAME
435	GEN WB44K5015
436	GEN WB44K5016
437	BROIL SUPPORT
438	TRIM CLIP
439	WB8K5029 GE Oven Lamp Holder
440	OV LAMP SHIELD
442	OV LAMP LENS
443	GASKET SILICONE UP OVEN
444	CONTROL TRIM
445	GEN WB57K5041
446	GEN 346662
447	GEN WB20K5009
447	GEN WB20K5012
448	THERMOSTAT BRACKET-UPP
448	THERMOSTAT BRACKET-LOWER
449	SHAFT EXTENSION-LOWER OV
449	SHAFT EXTENSION-UPPER OV
451	KNOB
451	THERMOSTAT KNOB
454	SPEEDNUT
455	SWITCH, OVEN-UPPER
455	GEN WB22X5103
456	OVEN SWITCH KNOB
456	OVEN SWITCH KNOB-LO
457	SWITCH BRACKET
458	SWITCH, LAMPS
459	WB1X537 GE Oven Screw
459	SWITCH, FAN
460	SWITCH TRIM
461	WB21X36771 GE Surface Element Switch
462	ELEMENT KNOB
463	LAMP BRACKET
465	GEN WB02X6653
466	INSULATION GUARD
467	INSULATION GUARD-TOP
468	INSULATION GUARD-LOWER
469	GEN WB49X0179
470	CASE BOTTOM
471	GEN WB02X1665
472	GEN WB56K5104
472	GEN WB56K5103
475	WASHER
476	GEN WB15X5165
477	HINGE PIN
478	GEN WB08K5010
479	GEN WB07X0776
480	DOOR STRIKE
483	BACK COVER
484	DOOR GUIDE
485	SPRING CATCH
486	GEN WB24X5239
487	GEN WB27X5271
488	INSTRUMENT COVER
489	BROILER REFLECTOR
490	SIDE PANEL-LT
490	GEN WB63K5133
490	GEN WB63K5075
491	BOTTOM PANEL
492	REAR PANEL
493	IND LIGHT W/LEADS-LOWER
698	GEN WZ04X0336
752	GEN WB00X6542
752	WH2X930 GE Screw
755	GEN WZ04X0237
834	GEN WB01K5152
961	CLIP MTG LAMP
