JHP56N*K1

JHP56N*K1

Written by

in

JHP56N*K1

Products

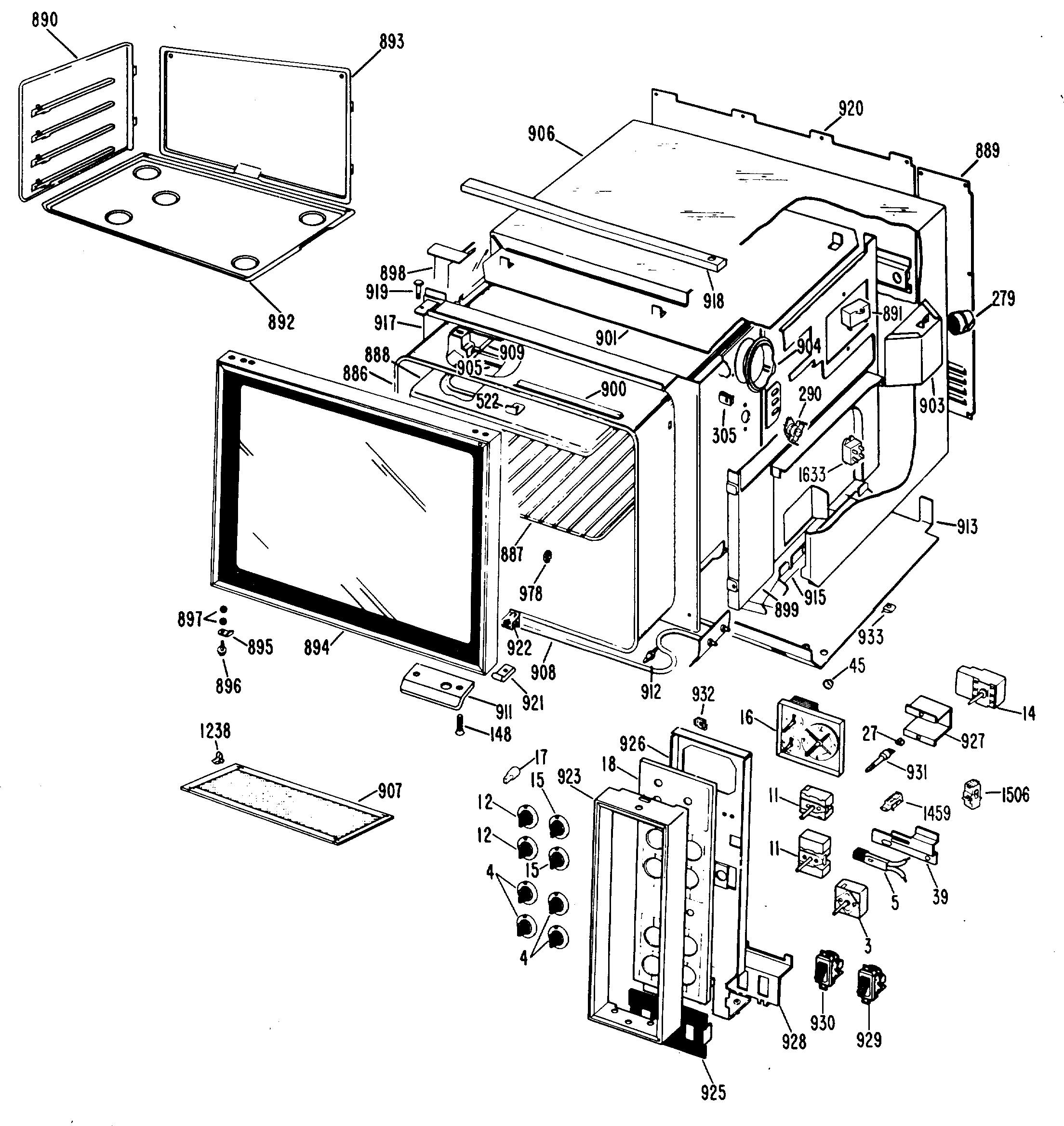

Position	Product
1	COOKTOP HA
1	COOKTOP AD
1	COOKTOP WH
3	WB21X36771 GE Surface Element Switch
4	ELEMENT KNOB
5	GEN WB02X3468
5	NEON LAMP 118V
9	GEN WB07X6676
9	GEN WB07X6677
11	SWITCH, OVEN-UPPER
11	GEN WB22X5103
12	OVEN SWITCH KNOB-LO
12	OVEN SWITCH KNOB
14	GEN WB24X0184
14	GEN WB02X6274
14	GEN WB21X5208
15	THERMOSTAT KNOB
15	KNOB
16	GEN WB19X0123
17	GEN WB03X0459
18	GEN WB02X6240
18	GEN WB36X5612
18	GEN WB02X3232
21	COVER BACK
26	TRIM COOKTOP RH
26	TRIM COOKTOP LH
27	GEN WB02X2900
39	LAMP BRACKET
45	NUT
113	CLIP TRIM
148	WB1X536 GE Oven Screw
148	GEN WZ04X0237
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB32X5051
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
164	GEN WB31X5012
251	GEN WB56X6054
252	GEN WB02X6768
253	GEN WB49X5389
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5516
258	GUIDE DRAWER LH
258	GUIDE DRAWER RH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5091
261	GEN WB10X5090
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
267	SPRING DOOR
268	GEN WB29X5012
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X7774
276	GEN WB49X5398
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
279	WB08T10026 GE Range Push-In Receptacle
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5138
282	CLAMP HARNESS
283	GEN WB02X3164
283	GEN WB02X3163
290	GEN WB24X5239
292	GEN WB01X0386
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
305	GEN WB02X6653
309	GEN WB02X6767
310	GEN WB49X5156
348	PLATE GROUND
350	GEN WB55X5322
350	INSULATION DOOR
351	SPACER DOOR
352	WB2X6547 GE Oven Door Gasket
355	GEN WB55X5311
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5560
359	GEN WB07X6892
360	GEN WB55X5218
361	GEN WB01X5735
362	WB1X119D GE Oven Range Washer
363	GEN WB02X7616
365	WB15X5189 GE Oven Endcap 2-Pack
373	WINDOW
374	GASKET WINDOW
386	HANDLE DRAWER
391	GEN WB02X3052
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X6889
397	GEN WB07X6888
397	GEN WB07X6887
397	GEN WZ04X0384
399	GEN WB02X3285
402	GEN WB01X0591
403	GEN WB02X7188
404	GEN WB36X5477
406	BRACKET DOOR
407	GEN WB07X6913
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X7610
441	GEN WB02X7609
442	GEN WB01X5733
443	GEN WB01X5734
451	DRAWER ASM
451	GEN WB02X6740
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X230D GE Screw Package 12
456	WZ4X345D GE Screw Package 12 C92
457	GEN WB56X5799
458	GEN WB07X5659
459	WB1X537 GE Oven Screw
520	GEN WB53X5131
520	GEN WB02X3471
520	GEN WB02X6496
522	TRIM CLIP
523	GEN WB02X7693
526	GEN WB02X3165
528	RACK OVEN
529	GEN WB49X
701	GEN WB15X5133
706	PAWL LOCKING
740	CLIP WIRE BLACK
763	GEN WB02X1665
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5064
789	GEN WB27X5271
827	ANGLE BRACE
828	SCREW
829	CLIP SPRING
851	GEN WB26X5083
864	GEN WB56X6076
864	GEN WB56X6075
864	GEN WB56X6074
870	SOCKET-LAMP
871	GEN WB02X7758
872	GEN WB02X1583
873	GEN WB15X0109
880	GEN WB56X0923
881	FILTER PLATE
882	GEN WB07X0772
883	GEN WB02X3432
883	GEN WB07X0770
883	GEN WB07X0771
884	GEN WB02X2017
885	SPRING & PIN ASM
886	GEN WB02X1511
886	OVEN BODY
887	OVEN RACK-UPPER
888	REFLECTOR BROIL
889	INSTRUMENT COVER
890	SIDE PANEL-LT
890	GEN WB56X6057
891	WR62X51 GE Refrigerator Capacitor
892	BOTTOM PANEL
893	REAR PANEL
894	GEN WB56X6024
895	GEN WB02X1658
897	WASHER
898	GEN WB49X0179
899	INSULATION GUARD
900	GASKET SILICONE UP OVEN
901	GEN WB55X5324
902	GEN WB49X5391
903	OV LAMP SHIELD
904	OV LAMP LENS
905	BROIL SUPPORT
906	CASE SIDE-LT WHITE
906	CASE SIDE-RT-
906	GEN WB56X1465
906	CASE SIDE LH HA
906	CASE SIDE RH HA
906	CASE SIDE-RT WHITE
907	GEN WB02X1666
908	WB44X195 GE Oven Bake Unit
909	BROIL UNIT-UPPER OVEN
911	GEN WB15X5165
912	DOOR STRIKE
913	CASE BOTTOM
915	INSULATION GUARD-LOWER
916	GEN WB02X7759
917	FRONT FRAME
918	GEN WB07X0776
919	HINGE PIN
920	COVER BACK
921	DOOR GUIDE
922	SPRING CATCH
923	CONTROL TRIM
925	SWITCH TRIM
926	INSTRUMENT BRACKET
927	THERMOSTAT BRACKET-UPP
927	THERMOSTAT BRACKET-LOWER
928	SWITCH BRACKET
929	SWITCH, LAMPS
930	SWITCH, FAN
931	SHAFT EXTENSION-LOWER OV
931	SHAFT EXTENSION-UPPER OV
932	SPEEDNUT
933	CLIP
936	FILTER COMBINATION
940	GEN WB02X7760
978	GEN WB02X1126
1201	WB1X5364 GE Oven Mounting Screw
32767	SPEEDNUT
32767	SCREW & WASHER ASM
32767	GEN 49-4801
32767	WB1X500D GE Oven Screw Package
32767	GEN 31-0632
32767	GEN WB01X053
