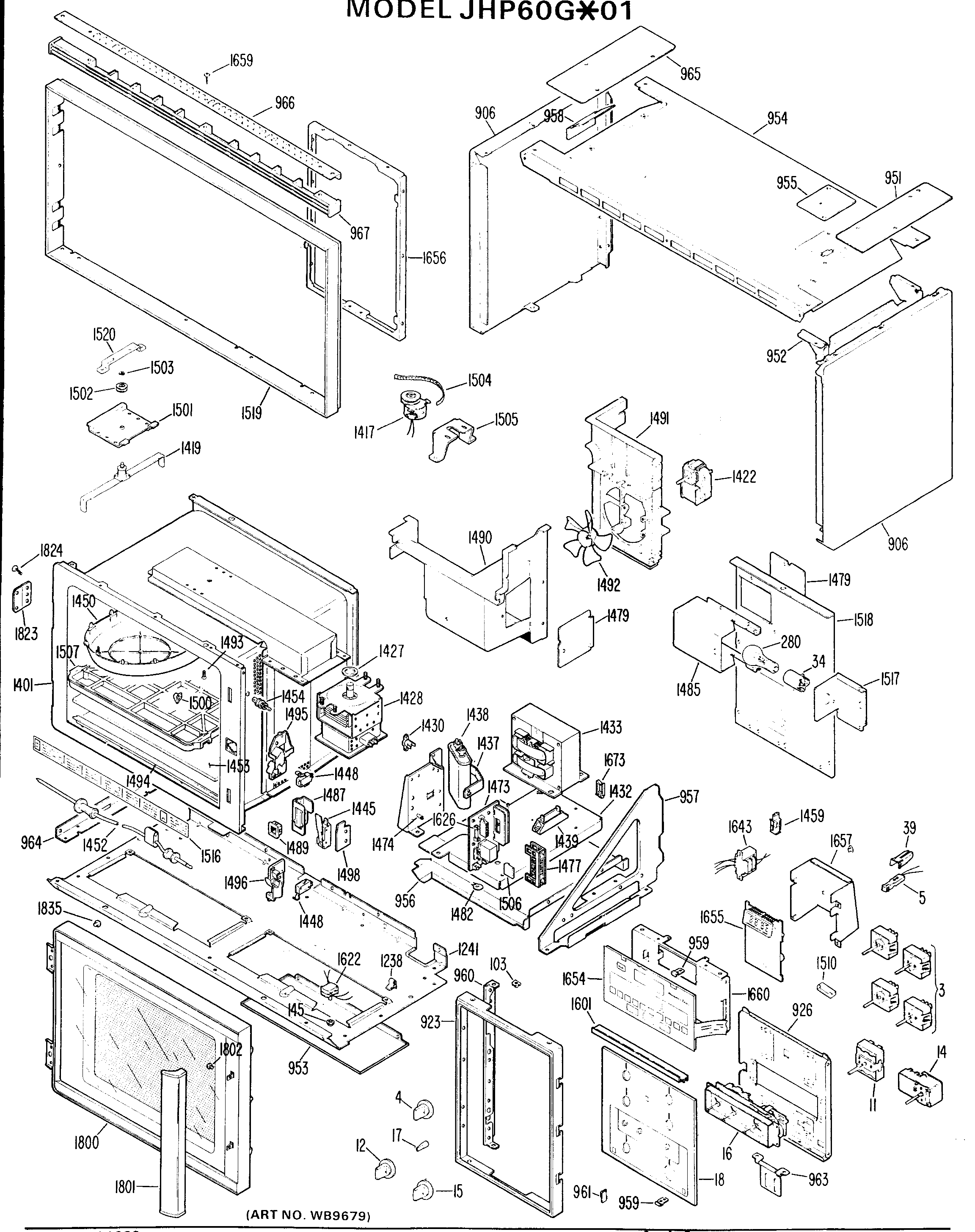

JHP60G*01

JHP60G*01

Written by

in

JHP60G*01

Products

Position	Product
1	GEN WB62X5290
1	GEN WB62X5293
1	GEN WB62X5292
1	COOKTOP – CF
1	GEN WB62X5291
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5629
5	GEN WB02X3468
5	NEON LAMP 118V
6	CLIP MTG LAMP
7	WB25X65 GE Oven Light Indicator
8	SWITCH LATCH RELEASE
9	GEN WB07X6676
9	GEN WB07X6677
11	GEN WB22X5103
12	GEN WB03X5627
14	GEN WB02X6454
14	GEN WB02X6274
14	GEN WB24X0184
15	GEN WB03X5628
16	GEN WB19X5271
17	GEN WB03X5630
18	GEN WB36X5510
21	GEN WB49X5293
22	GEN WB07X6779
26	GEN WB07X1004
34	GEN WB08X5086
39	SURFACE LIGHT BRACKET
113	CLIP TRIM
136	GEN WB07X6778
137	GEN WB07X1010
138	GEN WB08X0164
145	NUT SWITCH
148	GEN WZ04X0237
150	WB30X218 GE Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB31X5010
156	WB30X219 GE Range Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB31X5011 GE Oven 8" Chrome Drip Bowl
160	SCREW RECEPT TERMINAL
160	RR122 Supco Receptacle WB17X5051
161	GEN WB02X6171
162	CLIP INSULATOR
248	WB1X500D GE Oven Screw Package
250	GEN WB02X3229
251	GEN WB56X5861
252	GEN WB02X6768
253	GEN WB49X5149
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5516
258	GUIDE DRAWER LH
258	GUIDE DRAWER RH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5090
261	GEN WB10X5091
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	SPRING DOOR
268	GEN WB29X5009
269	INSULATOR TERMINAL
271	BAFFLE
272	WB17X5095 GE Black Oven Terminal
274	BRACKET KNOCKOUT
275	GEN WB02X6655
276	GEN WB49X5161
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
281	GEN WB02X3466
282	GEN WB24X5138
282	CLAMP HARNESS
283	GEN WB02X3164
283	GEN WB02X3163
291	BALLAST
303	WB36X192 GE Oven Light Cover
305	GEN WB02X6653
309	GEN WB02X6767
310	GEN WB49X5156
311	GEN WB02X6187
312	GEN WB49X5221
312	GEN WB49X5222
348	PLATE GROUND
350	GEN WB55X5243
350	INSULATION DOOR
351	SPACER DOOR
352	WB2X6547 GE Oven Door Gasket
353	GEN WB02X6573
354	GEN WB09X0154
355	GEN WB55X5244
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB02X7189
358	GEN WB36X5379
359	GEN WB07X5625
360	GEN WB55X5218
361	HANDLE SCREW
362	WB1X119D GE Oven Range Washer
363	SPACER PANEL
364	GROMMET HANDLE
365	GEN WB15X5102
373	WINDOW
374	GASKET WINDOW
385	GEN WB07X5631
386	HANDLE DRAWER
387	GEN WB02X6575
389	GEN WB07X5623
390	GEN WB07X5624
391	GEN WB02X3052
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X5630
395	GEN WB02X3053
396	GEN WB56X5678
397	GEN WZ04X0384
402	GEN WB01X0591
403	GEN WB02X7188
404	GEN WB36X5477
406	BRACKET DOOR
407	GEN WB07X0722
451	DRAWER ASM
451	GEN WB02X6740
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X345D GE Screw Package 12 C92
456	WZ4X230D GE Screw Package 12
457	GEN WB56X5799
458	GEN WB07X5659
459	WB1X537 GE Oven Screw
461	WB1X536 GE Oven Screw
520	GEN WB02X6496
520	GEN WB53
654	GEN WZ10X0114
701	GEN WB15X5133
740	GEN WB02X7066
740	CLIP WIRE BLACK
749	GEN WB01X5578
763	GEN WB02X1665
782	WB17X5060 GE Oven Block Assembly
796	GEN WB02X6654
906	GEN WB02X6930
906	GEN WB56X5900
906	GEN WB56X5902
906	GEN WB56X5897
906	GEN WB56X5903
906	GEN WB56X5904
906	GEN WB56X5899
906	GEN WB56X5901
906	GEN WB56X5898
923	GEN WB07X6800
926	GEN WB02X7222
951	CASE TOP COVER-RT
952	SIDE DUCT
953	GEN WB02X6840
954	GEN WB56X5929
954	GEN WB56X5926
954	GEN WB56X5927
954	GEN WB56X5928
955	GEN WB02X6727
956	GEN WB49X5294
957	OVEN BRACE
958	GEN WB49X5296
959	GEN WB02X7238
960	SUPPORT SIDE L H
960	GEN WB02X7240
961	GEN WB02X7241
961	GEN WB01X5628
963	GEN WB02X7223
964	BRACE ANGLE
965	CASE TOP COVER-LT
966	GRILLE COVER
967	GEN WB07X6797
991	CLIP MTG. TRIM
1201	WB1X5364 GE Oven Mounting Screw
1241	GEN WB55X5248
1401	GEN WB02X7237
1401	GEN WB53X5085
1415	WB1X1173 GE Rivet
1417	GEN WB26X5066
1419	GEN WB02X7214
1422	GEN WB26X5060
1427	GEN WB02X6046
1428	WB27X10249 GE Oven Magnetron
1428	HI VOLTAGE WIRE
1430	GEN WB27X5219
1432	GEN WB02X7225
1433	GEN WB27X5215
1433	GEN WB02X7202
1437	GEN WB02X7061
1438	GEN WB27X5212
1439	GEN WB27X5070
1445	GEN WB24X5157
1448	GEN WB24X5168
1450	GEN WB56X5882
1451	GEN WB01X5453
1452	GEN WB20X5045
1453	GEN WB48X5062
1454	GEN WB20X5042
1472	GEN WB02
