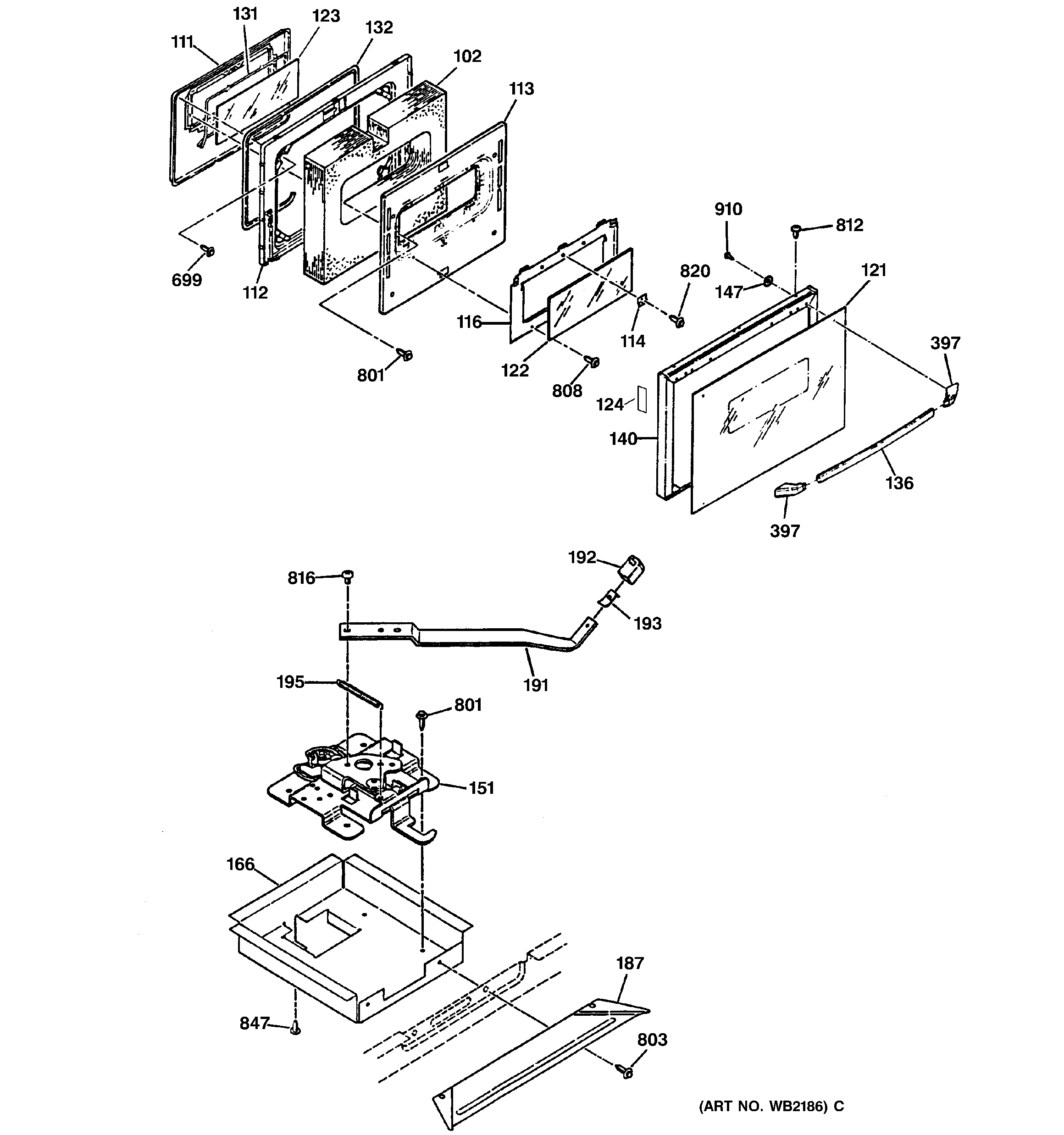

JHP62GN6AD OVEN DOOR & MOTORIZED DOOR LOCK

JHP62GN6AD OVEN DOOR & MOTORIZED DOOR LOCK

Written by

in

JHP62GN6AD OVEN DOOR & MOTORIZED DOOR LOCK

Products

PositionProduct
102GEN WB35K5082
111GEN WB55K5037
111GEN WB55X5286
112GEN WB55K5028
112GEN WB55K5039
113GEN WB02K5331
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5273
121GEN WB57K5279
122GEN WB57K5141
123CENTER GLASS
124GEN WB57K5278
124GEN WB35K5103
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
136GEN WB15K5100
136WB15T10030 GE Oven Handle Assembly
140GEN WB07X6925
140GEN WB56K5145
140GEN WB56K5153
147GEN WB02K5312
151GEN WB10X0268
166GEN WB58M0002
187GEN WB34M0033
191LOCK HANDLE
192GEN WB03K5154
193KNOB CLIP
195LOCK SPRING
397WB7X7183 GE Oven Black Handle Endcap
699WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
808WB1X1116 GE Oven Screw
812SCREW-BLACK
812WB1K5191 GE Oven Zinc FL Screw
816GEN WB01X1125
820WB1X1424D GE Oven Screw Package
847WB1X1118 GE Oven Screw 6-32T
910WB1X5731D GE Oven Nut Package of 12
