JHP63GN1 2

JHP63GN1 2

Written by

in

JHP63GN1 2

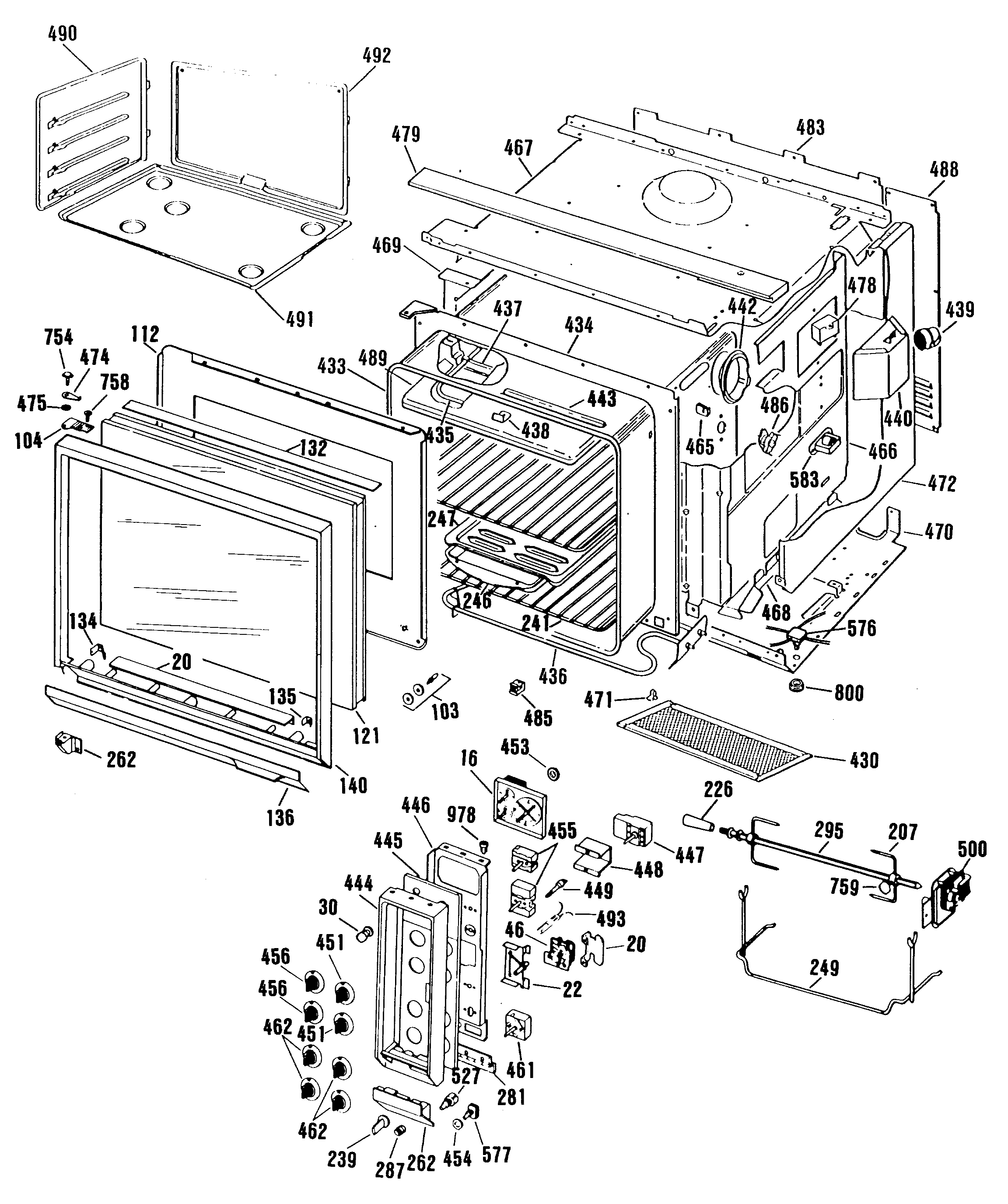

Products

Position	Product
16	GEN WB19X0123
20	WINDOW BRACKET
20	GEN WB02K5106
20	GEN WB02K5107
20	GEN WB02K5108
20	GEN WB02K5105
20	BRACKET CIRCUIT BOARD
22	GEN WB07X0981
30	TIMER KNOB
46	CIRCUIT BOARD ASM THERMO
103	DOOR STRIKE
104	HINGE PLATE
112	GEN WB56K5026
112	OV DOOR LINING-UPPER
121	WINDOW-UPPER OVEN
121	OV DR GLASS W/REFLECTOR
132	GEN WB02X2823
132	WB2X9373 GE Oven Gasket
134	HANDLE SPRING CLIP
135	HANDLE CLIP-UPPER OVEN
136	DOOR HANDLE-UPPER OVEN
136	OVEN DOOR HANDLE
140	OVEN DOOR FRAME-UPPER
140	OV DR FRAME W/OVERLAY
140	GEN WB56M0012
207	SKEWER ASM
226	HANDLE SPIT
226	LOWER FRONT PANEL HANDLE
239	PUSH BUTTON
239	WB2X9189 GE Oven Plug – REC
241	OVEN RACK-LOWER OVEN
241	OVEN RACK-UPPER
246	WB48X10056 GE Broil Pan Set, Large Porcelain
246	BROILER PAN-UPPER OVEN
247	WB48K10016 GE Oven Broil Pan Grid
249	SUPPORT SPIT
262	GEN WB07K5026
262	HINGE TRIM-UPPER OVEN
262	GEN WB07K5029
281	CONTROL PANEL HINGE-UP
281	WB14X103 GE Range Oven Left Door Hinge
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
287	COMPRESSION SPRING
287	GEN WB63K5068
295	SPIT BLADE
430	GEN WB02X1666
433	OVEN BODY
434	FRONT FRAME ASM
435	BROIL UNIT-UPPER OVEN
436	WB44X195 GE Oven Bake Unit
437	BROIL SUPPORT
438	TRIM CLIP
439	GEN WB08X0191
440	OV LAMP SHIELD
442	OV LAMP LENS
443	GASKET SILICONE UP OVEN
444	CONTROL TRIM
445	GEN WB36X5621
446	INSTRUMENT BRACKET
447	GEN WB20K5012
447	GEN WB21X5208
448	THERMOSTAT BRACKET-UPP
448	THERMOSTAT BRACKET-LOWER
449	SHAFT EXTENSION-LOWER OV
449	SHAFT EXTENSION-UPPER
451	GEN WB03X0463
451	THERMO KNOB
453	GEN WB01X5221
454	GEN WB01X0245
455	GEN WB22X5137
455	OVEN SWITCH
456	GEN WB03X0462
456	OVEN KNOB
461	WB21X36771 GE Surface Element Switch
462	GEN WB03X0490
465	GEN WB02X6653
466	INSULATION GUARD
467	INSULATION GUARD-TOP
468	INSULATION GUARD-LOWER
469	GEN WB49X0179
470	CASE BOTTOM
471	GEN WB02X1665
472	CASE SIDE-LT WHITE
472	CASE SIDE-RT-
472	GEN WB56X1465
472	CASE SIDE-RT WHITE
474	GEN WB02X2655
475	GEN WB01X0517
478	GEN WB08K5010
479	GEN WB07X0776
483	BACK COVER
485	SPRING CATCH
486	GEN WB24X5239
488	INSTRUMENT COVER
489	BROILER REFLECTOR
490	GEN WB56X6060
490	SIDE PANEL-LT
491	BOTTOM PANEL
492	REAR PANEL
493	GEN WB02K5156
493	GEN WB18
