JHP63GN4WH 3

JHP63GN4WH 3

Written by

in

JHP63GN4WH 3

Products

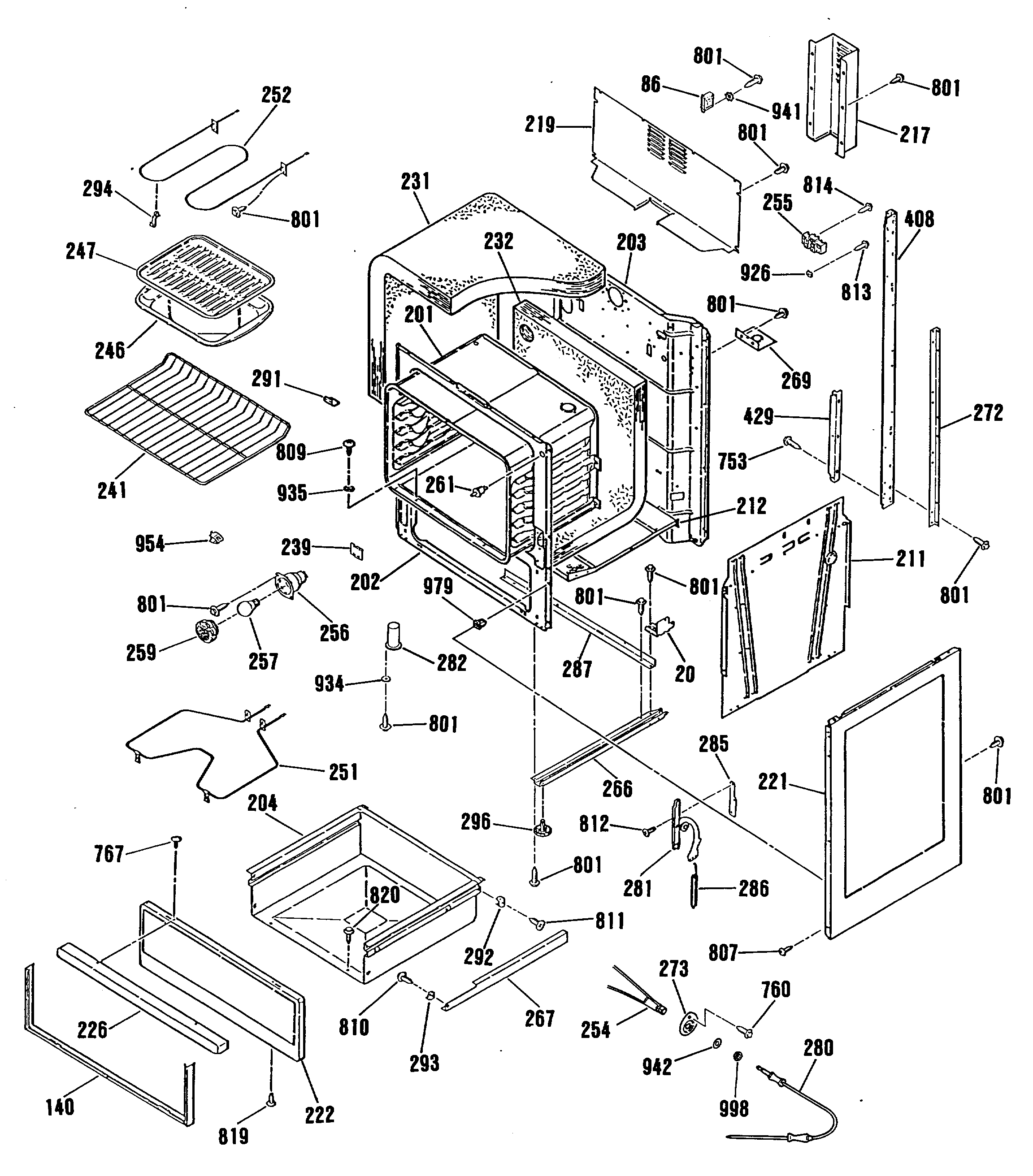

PositionProduct
20WINDOW BRACKET
20GEN WB02K5107
20BRACKET CIRCUIT BOARD
20GEN WB02K5108
20GEN WB02K5105
20GEN WB02K5106
86GEN WB20X0116
140OV DR FRAME W/OVERLAY
140OVEN DOOR FRAME-UPPER
140GEN WB56M0012
201GEN WB63K5074
202FRONT FRAME
203GEN WB63K5149
204GEN WB58X0065
211GEN WB02K5254
212INSULATION BTTM RETAINER
217UPPER WIRE COVER
219GEN WB34K5059
221GEN WB63K5069
222GEN WB56K5022
226LOWER FRONT PANEL HANDLE
226HANDLE SPIT
231INSULATION-TOP & SIDES
232INSULATION OV BTM & BACK
239PUSH BUTTON
239WB2X9189 GE Oven Plug – REC
241OVEN RACK-UPPER
241GEN WB48X0208
246BROILER PAN-UPPER OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
247WB48K10016 GE Oven Broil Pan Grid
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
254GEN WB08K5008
255WB17X5095 GE Black Oven Terminal
256GEN WB08M0003
257GEN BUY-LOCAL
259OVEN LAMP LENS
261SWITCH
266GEN WB63K5072
267GEN WB56M0003
269SERVICE RANGE MTG PLATE
272GEN WB02K5103
273GEN WB02X7300
280WB20T10024 GE Oven Thermistor Probe
281CONTROL PANEL HINGE-UP
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282GEN WB38K5021
285GEN WB02K5143
286PV DR SPRING
287COMPRESSION SPRING
287GEN WB63K5068
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01X5516
408GEN WB02K5115
429GEN WB02K5104
753GEN WB01K5052
760WB1X536 GE Oven Screw
767SCREW
801WB1M1 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
819WB1X1118 GE Oven Screw 6-32T
820WB1X1424D GE Oven Screw Package
926GROUND WASHER
934GEN WB01K5054
935GEN WB01X1201
941GEN WB01X1399
942WB1X5573 GE Oven Washer
954THERMOSTAT BULB RET CLIP
979SPACER
998WB1X5572 GE Oven Nut
