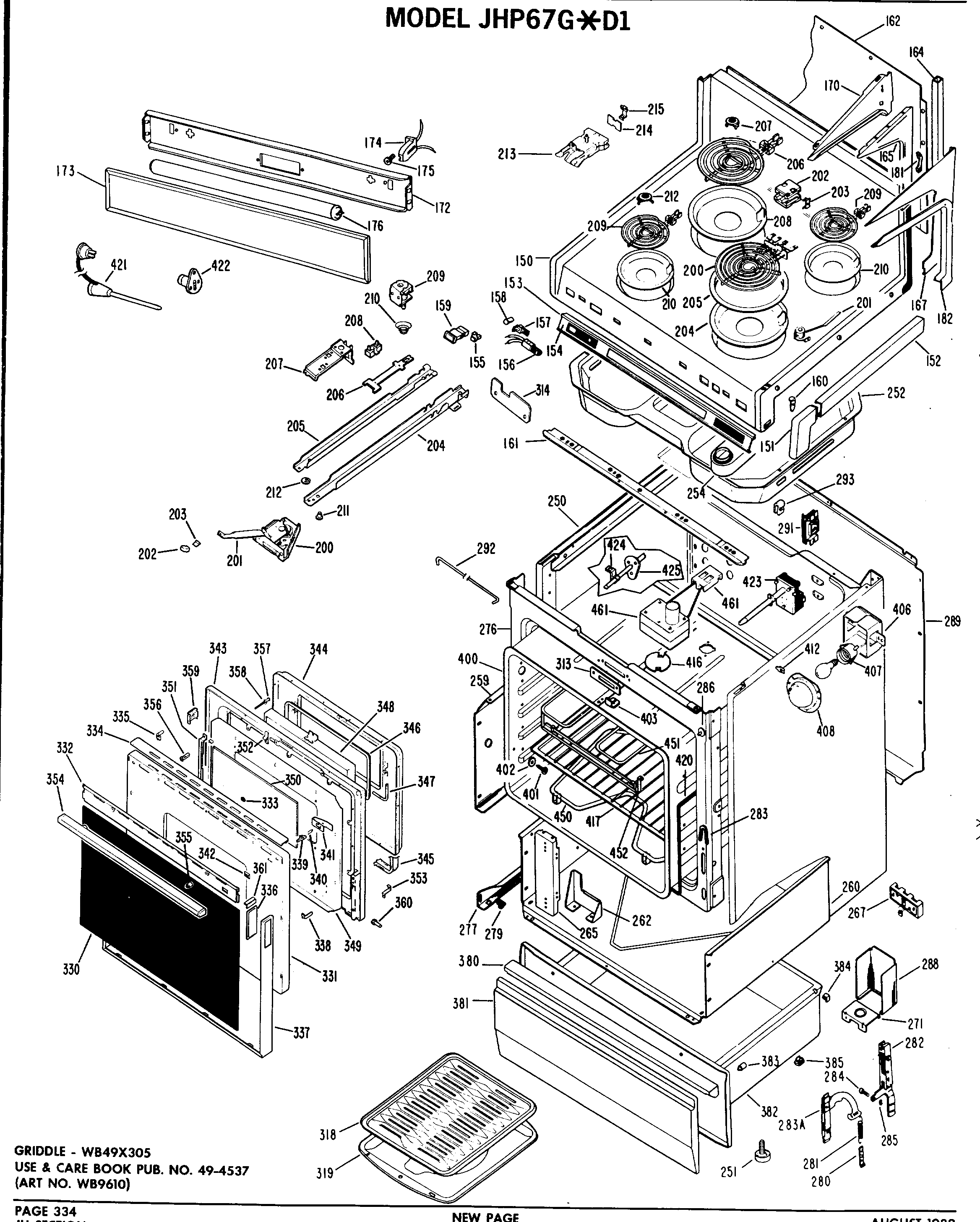

JHP67G*D1

JHP67G*D1

Written by

in

JHP67G*D1

Products

PositionProduct
1GEN WB62X5292
1GEN WB62X5291
1GEN WB62X5293
1COOKTOP – CF
1GEN WB62X5290
2WZ4X345D GE Screw Package 12 C92
5NEON LAMP 118V
6CLIP MTG LAMP
7WB25X65 GE Oven Light Indicator
8SWITCH LATCH RELEASE
9GEN WB07X6677
9GEN WB07X6676
21COVER BACK
22GEN WB07X6779
26GEN WB07X1004
113CLIP TRIM
136GEN WB07X6782
137GEN WB07X1010
138GEN WB08X0164
145NUT SWITCH
150WB30X218 GE Range Cooktop Burner Unit 6 Inch
151SCR 8-32 T HXW 7/8 S
151GEN WB32X0052
152GEN WB02X2018
153CLIP INSULATOR
154GEN WZ04X0366
154GEN WB31X5010
156NEON LAMP – 240V
156WB30X219 GE Range Cooktop Burner Unit 8 Inch
157GEN WB32X0051
158WB31X5011 GE Oven 8" Chrome Drip Bowl
159GEN WB30X0357
160RR122 Supco Receptacle WB17X5051
160SCREW RECEPT TERMINAL
161GEN WB02X6171
161SCREW
162CLIP INSULATOR
163GEN WB32X5036
164GEN WB02X6619
164GEN WB02X6620
164GEN WB31X5012
165GEN WB02X6737
165GEN WB21X5207
169GEN WB49X0304
173CLIP
175SCR 6-20 BT PHR 3/8 S
176SCREW MTG. CLAMP
176GEN F20T12/CW
182GEN WZ04X0336
200GEN WZ02X0546
201SCREW 6-32 X 1/4" HEX
201HANDLE
207GEN WZ04X0396
207GEN WZ04X0362
208BARRIER LATCH SW LOW OV
208GEN WZ04X0397
209SCREW & WASHER ASM
212GEN WZ04X0394
212GEN WB02X3147
215CLIP LEAD
248WB1X500D GE Oven Screw Package
250CLAMP HARNESS
251GEN WB56X5861
252GEN WB02X6768
253GEN WB49X5149
254BODY VENT
255GEN WB07X0552
256GEN WB01X5516
258GUIDE DRAWER LH
258GUIDE DRAWER RH
259GUARD UPPER-LH
259GUARD UPPER-RH
259SLIDE GUIDE
260HINGE LEVER ASM RH & LH
261GEN WB10X5090
261GEN WB10X5091
263GEN WB02X6195
264RING RETAINING
265GEN WB02X6342
266HOOK DOOR SPRING
266BLOCK TERM DISTRIBUTION
267SPRING DOOR
267WB17X5095 GE Black Oven Terminal
267SCR 10-16 B SL 1-1/8 S
268GEN WB29X5009
269INSULATOR TERMINAL
271BAFFLE
271WB1X536 GE Oven Screw
274BRACKET KNOCKOUT
275GEN WB02X6655
276GEN WB49X5161
276GEN WB02X3240
277SWITCH, OVEN LIGHT
281GEN WB02X3466
282GEN WB01X5497
282CLAMP HARNESS
283GEN WB02X3163
283GEN WB02X3164
286GEN WB02X6196
291BALLAST
309GEN WB02
